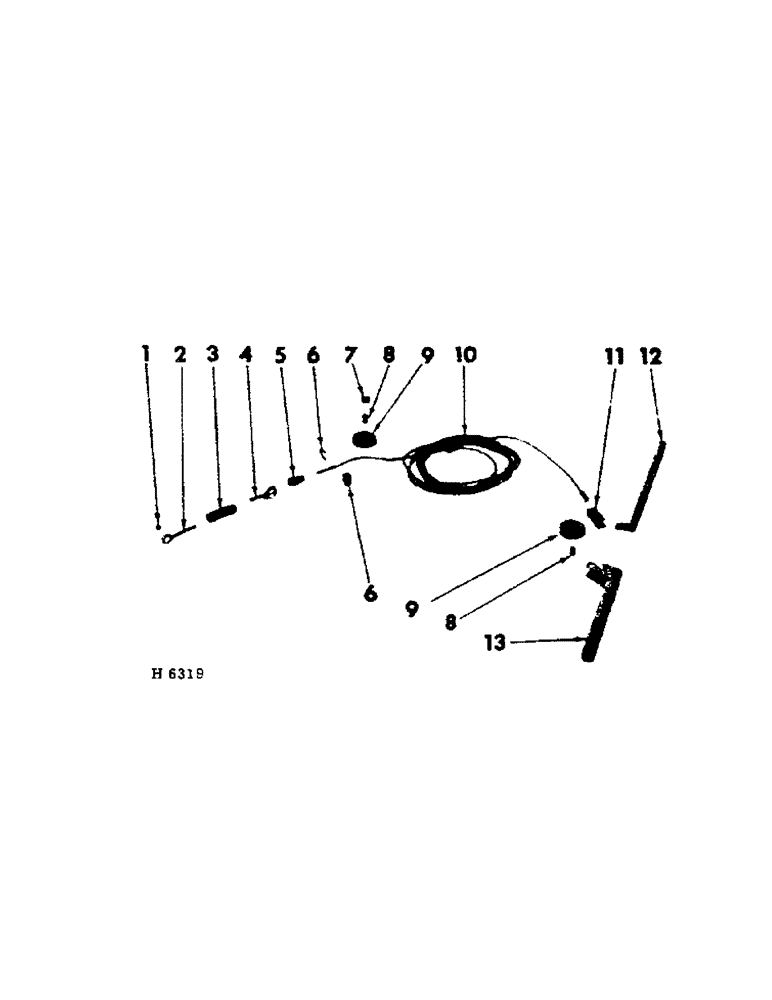

Запчасти Case IH 201 (A-106) - REEL RAISING CABLE AND BRACES, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

612232R1

SPACER

reel cable turnbuckle

1шт.

2

612073R1

EYEBOLT, reel cable turnbuckle

1шт.

NUT, 7/16" (LH thread)

1шт.

BOLT W/NUT, 3/8 x 2-1/2" mach

1шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

1шт.

WASH, 3/8"

1шт.

3

R185

TURNBUCKLE, lift cable

1шт.

4

618051R1

EYEBOLT, reel lift cable

1шт.

NUT, 7/16"

1шт.

5

618988R1

THIMBLE, lift cable clip

1шт.

6

618987R91

CLIP, cable (w/"U" bolt & nuts)

1шт.

7

612126R1

GUIDE, cable pulley

5шт.

8

618953R1

SPACER, cable pulley

7шт.

9

618954R1

PULLEY, raising cable

7шт.

BOLT W/NUT, 7/16 x 1-3/4" crg

2шт.

BOLT W/NUT, 7/16 x 1-7/8" mach

2шт.

BOLT W/NUT, 7/16 x 1-7/8" cd-pltd mach

1шт.

LK-WASH, 7/16"

4шт.

LK-WASH, 7/16" cd-pltd

1шт.

10

612024R11

CABLE, 10 ft platform reel lift

1шт.

10

612025R11

CABLE, 12 ft platform reel lift

1шт.

10

612026R11

CABLE, 14 ft platform reel lift

1шт.

10

612027R11

CABLE, 16 ft platform reel lift

1шт.

11

612161R1

YOKE, reel lift cable

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16" std-hd dld

1шт.

C-PIN, 1/8 x 3/4"

1шт.

12

612065R11

BAR, reel lift slide

1шт.

PO14926

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3-1/2" std-hd dld

1шт.

178373R1

WASHER

WASH, 17/32 x 1 x 16 ga cd-pltd

1шт.

C-PIN, 3/16 x 1"

1шт.

13

612181R11

SLEEVE, reel lift slide bar

1шт.

271293

PULLEY

LUB-FTG, 5/16"

1шт.

LC175

PIN

1/2 x 2-1/2" std-hd dld

1шт.

C-PIN, 3/16 x 1"

1шт.
