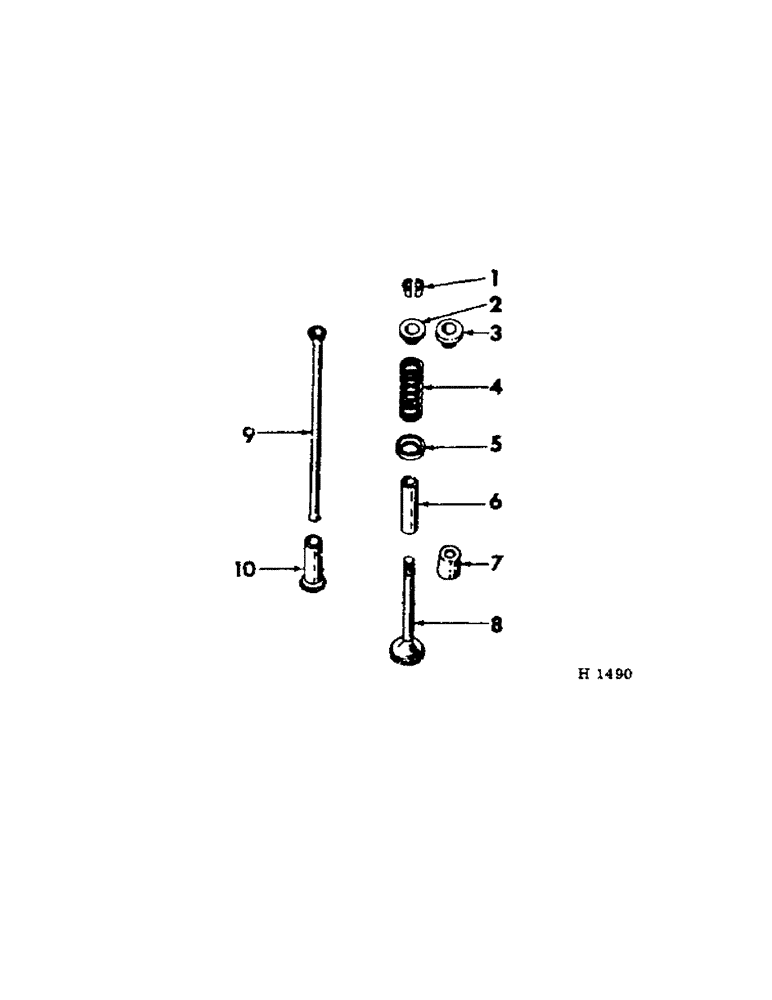

Запчасти Case IH 201 (A-011[A]) - VALVE, PUSH ROD AND TAPPET (10) - ENGINE

1

42026D

KEY

valve spg collar

16шт.

2

42040D

CUP

SEAT, valve spg upr (opt w/47278D)

4шт.

2

47278D

SEAT, VALVE

spg upr (opt w/42040D)

4шт.

3

356841R91

ROTATOR

exhaust valve

4шт.

4

366304R1

SPRING

intake valve

4шт.

4

368450R1

SPRING

exhaust valve

4шт.

5

356588R1

RETAINER

SEAT, valve spg lower

8шт.

6

356583R1

GUIDE

valve

8шт.

7

386192R1

SEAL

valve stem

8шт.

8

366302R2

VALVE

intake

4шт.

8

366303R4

VALVE

exhaust

4шт.

9

357548R1

ROD

push (opt w/360213R91)

1шт.

9

360213R91

ROD

push (opt w/357548R1)

1шт.

10

47384D

TAPPET

valve (opt w/356979R1)

8шт.

10

356979R1

TAPPET

valve (opt w/47384D)

8шт.
