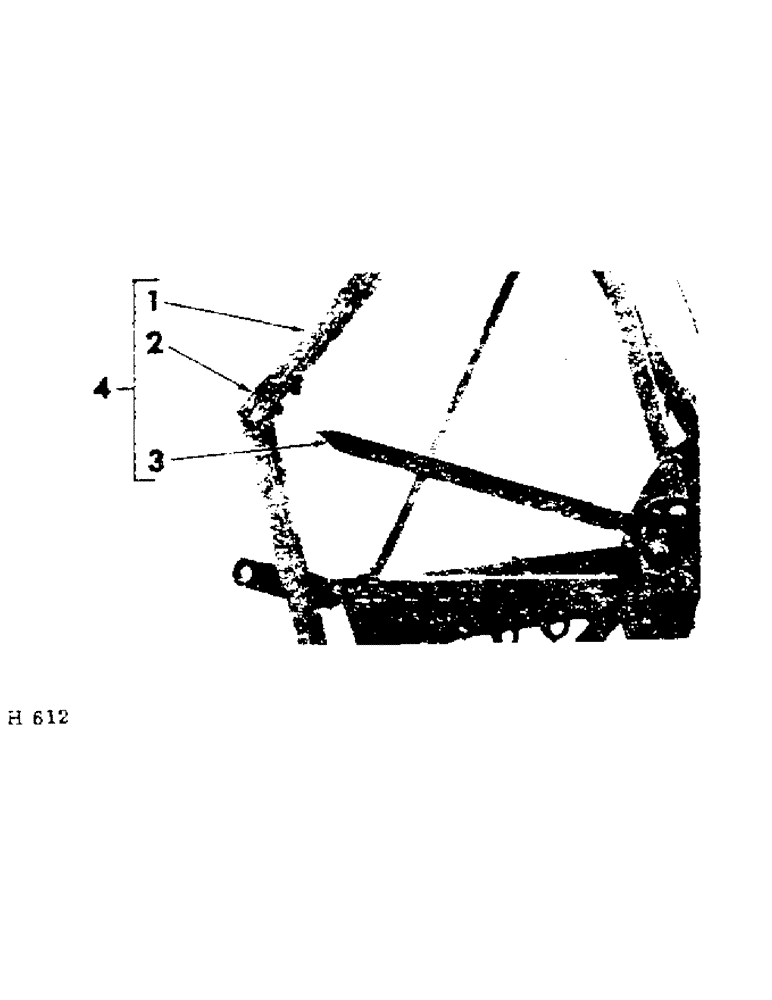

Запчасти Case IH 201 (A-105[A]) - PICK-UP REEL POLYGON RIGHT HAND, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

592619R1

STICK, polygon RH

6шт.

2

592620R1

STRAP, polygon outer RH

6шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

24шт.

BOLT, 1/4 x 1-3/4" mach

24шт.

LK-WASHER, 1/4"

24шт.

3

592622R11

SPOLE, polygon RH

6шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

24шт.

592639R1

NUT

LK-NUT, 5/16" special

6шт.

BOLT, 1/4 x 1-3/4" mach

24шт.

BOLT, 5/16 x 3/4" crg

6шт.

LK-WASHER, 1/4"

24шт.

LK-WASHER, 5/16"

6шт.

4

592618R91

REEL

POLYGON, reel spoke RH composed of: (24) bolt 17494R1, (24) lockwasher 103319, (24) nut 378531R1, (6) spoke 592622R11, (6) stick 592619R1, (6) strap 592620R1

1шт.

592639R1

NUT

LK-NUT, 5/16" special

6шт.

BOLT, 5/16 x 3/4" crg

6шт.

LK-WASHER, 5/16"

6шт.
