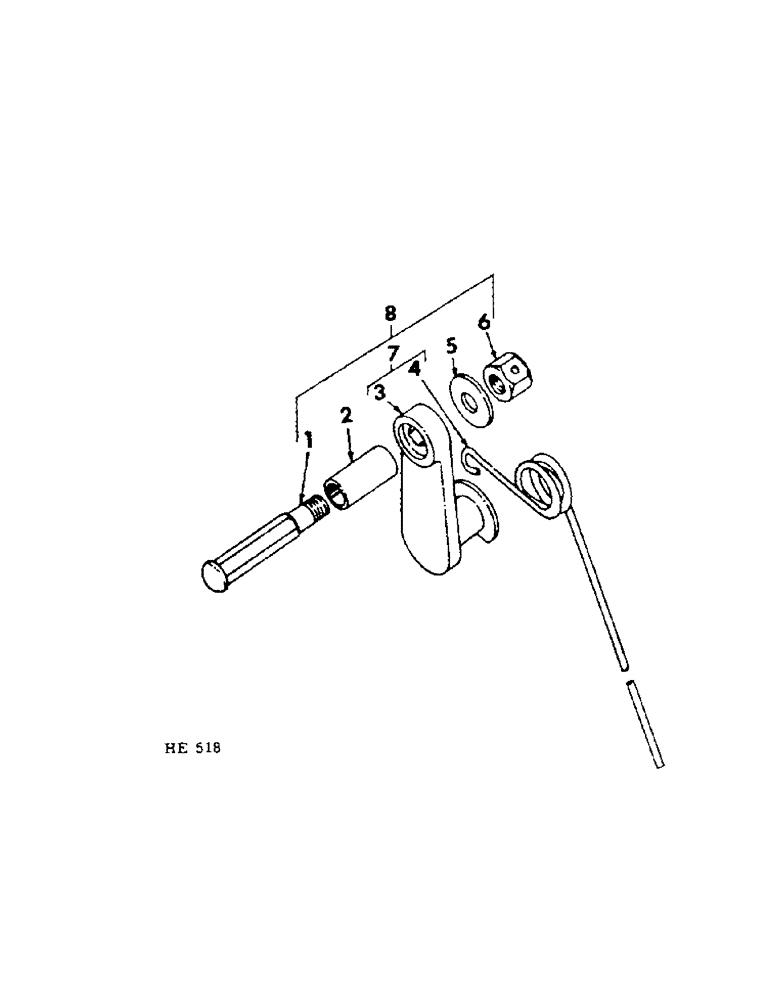

Запчасти Case IH 201 (A-104) - PICK-UP REEL AUXILIARY FINGER, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

592631R1

BOLT

finger shank

12шт.

LK-WASHER, 1/2"

12шт.

2

592632R1

SPACER

shank bolt

12шт.

3

592627R21

STRAP

pick-up finger

12шт.

4

592628R2

FINGER

pick-up LH shown

6шт.

4

592629R2

FINGER

pick-up RH

6шт.

5

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1/2 x 1-1/2 x 16 ga

12шт.

6

685547R1

NUT

1/2" special lock

1шт.

7

592625R92

FINGER

pick-up LH shown composed of: (1) finger 592628R2, (1) strap 592627R21

6шт.

7

592626R92

FINGER

pick-up RH composed of: (1) finger 592629R2, (1) strap 592627R21

6шт.

8

592623R92

FINGER, auxiliary pick-up LH shown composed of: (1) bolt 592631R1, (1) finger 592625R92, (1) lockwasher 103323, (1) nut 685547R1, (1) spacer 592632R1, (1) washer 106264

6шт.

8

592624R92

FINGER, auxiliary pick-up RH composed of: (1) bolt 592631R1, (1) finger 592626R92, (1) lockwasher 103323, (1) nut 685547R1, (1) spacer 592632R1, (1) washer 106264

6шт.
