(A-104[A]) - PICK-UP REEL BAT, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM

Запчасти Case IH 201 (A-104[A]) - PICK-UP REEL BAT, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

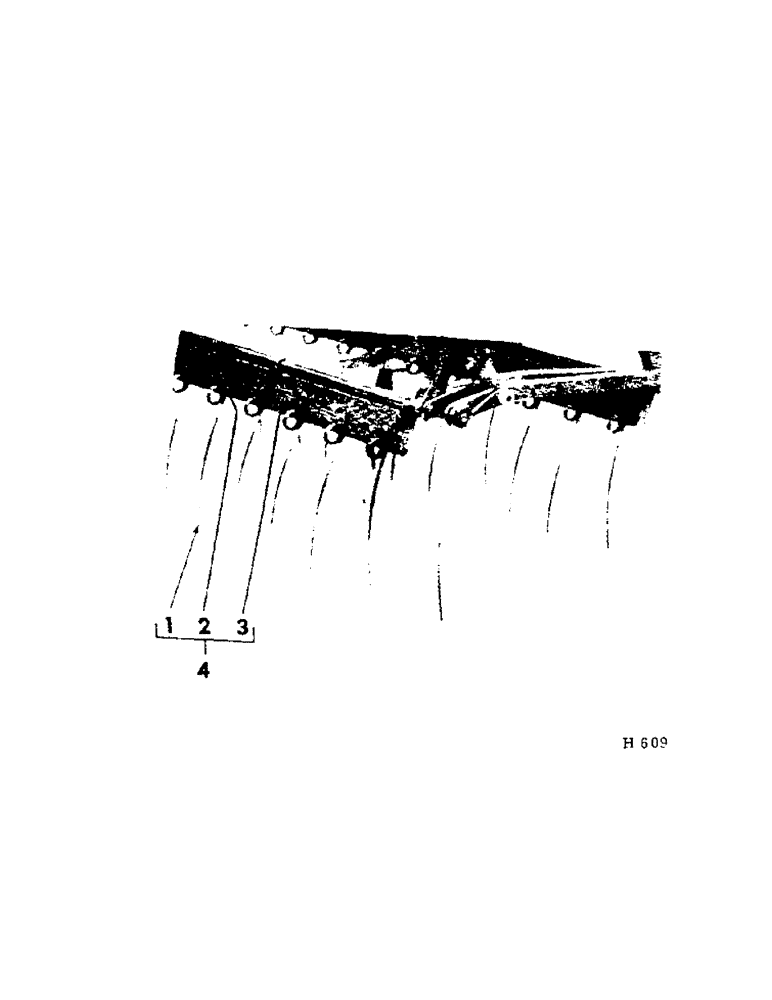

Схема запчастей Case IH 201 - (A-104[A]) - PICK-UP REEL BAT, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

592615R2

TINE, reel bat

144шт.

2

592616R1

CLIP

reel bat tine

144шт.

20901R1

RIVET

3/16 x 1" semi-tubular ov-hd

144шт.

3

BAT, clip & tine wood (order 1-592614R91, bat) (NSS)

12шт.

4

592614R92

BAT, wood composed of: (1) bat (NSS), (12) clip 592616R1, (12) rivet 20901R1, (12) tine 592615R1

12шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

96шт.

BOLT, 1/4 x 1-3/8" crg

96шт.

Выбрано товаров: 7
