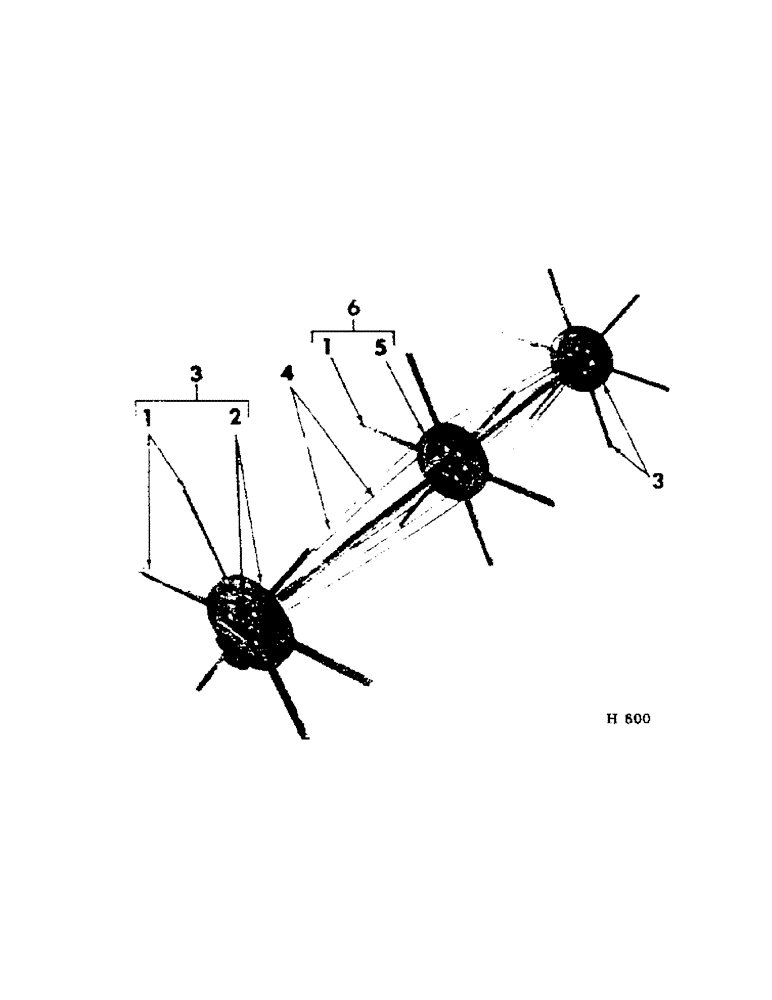

Запчасти Case IH 201 (A-103) - PICK-UP REEL SPIDERS, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

592610R11

BOARD

STICK, reel arm

18шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

36шт.

BOLT, 1/4 x 1-1/2" crg

36шт.

LK-WASHER, 1/4"

36шт.

2

592609R1

PLATE, outer spider

4шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special

6шт.

BOLT, 3/8 x 1-3/4" crg

6шт.

495-21044

WASHER,3/8"

(7/16 x 1 x 16 ga) 3/8"

6шт.

LK-WASHER, 3/8"

6шт.

3

592607R91

SPIDER, reel arm outer composed of: (12) bolt 15037R1, (12) lockwasher 103319, (12) nut, 378531R1, (2) plate 592609R1, (6) stick 592610R11

2шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special

6шт.

BOLT, 3/8 x 1-3/4" crg

6шт.

495-21044

WASHER,3/8"

(7/16 x 1 x 16 ga) 3/8"

6шт.

LK-WASHER, 3/8"

6шт.

4

592600R1

ROD, reel truss

6шт.

592601R1

WASHER, truss rod rubber

12шт.

592602R1

CUP, truss rod washer

12шт.

Q3830

WASHER

13/32 x 1-1/2 x 11 ga

12шт.

NUT, 3/8"-NF cd-pltd

24шт.

5

592608R1

PLATE, inner spider

2шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special

3шт.

BOLT, 3/8 x 1-3/4" crg

3шт.

495-21044

WASHER,3/8"

(7/16 x 1 x 16 ga) 3/8"

3шт.

LK-WASHER, 3/8"

3шт.

6

592606R91

SPIDER, reel arm inner composed of: (12) bolt 15037R1, (12) lockwasher 103319, (12) nut 378531R1, (2) plate 592608R1, (6) stick 592610R11

1шт.

385525R1

LOCK NUT,3/8"-16, GB

LK-NUT, 3/8" special

3шт.

BOLT, 3/8 x 1-3/4" crg

3шт.

495-21044

WASHER,3/8"

(7/16 x 1 x 16 ga) 3/8"

3шт.

LK-WASHER, 3/8"

3шт.
