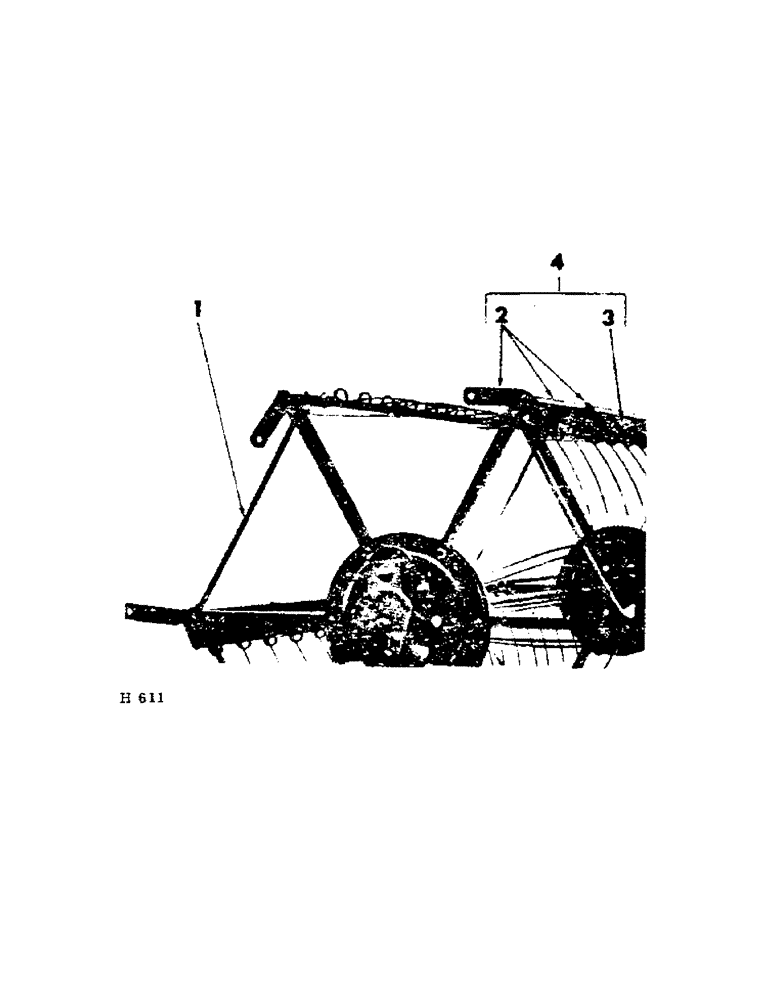

Запчасти Case IH 201 (A-103[A]) - PICK-UP REEL BATSHAFT, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

592611R1

BRACE, reel arm

18шт.

592639R1

NUT

LK-NUT, 5/16" special

18шт.

BOLT, 5/16 x 1-3/4" crg

18шт.

LK-WASHER, 5/16"

16шт.

2

592613R91

BATSHAFT, pick-up reel

6шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

96шт.

BOLT, 1/4 x 1-3/8" crg

96шт.

LK-WASHER, 1/4"

96шт.

3

592614R92

BAT, wood (for components refer to "pick-up reel bat")

12шт.

378531R1

LOCK NUT,1/4"-20, GA

LK-NUT, 1/4" special

96шт.

BOLT, 1/4 x 1-3/8" crg

96шт.

LK-WASHER, 1/4"

96шт.

4

592612R92

BAT

pick-up reel batshaft composed of: (2) bat 592614R92, (1) batshaft 592613R91, (16) bolt 15030R1, (16) nut 378531R1

1шт.
