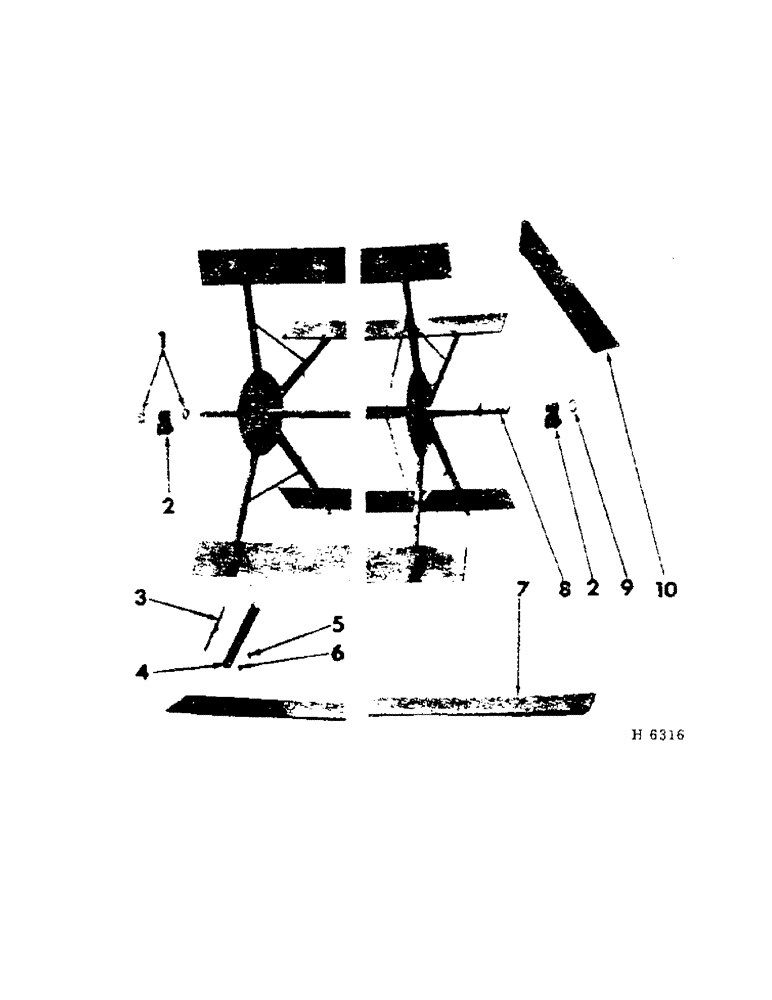

Запчасти Case IH 201 (A-102) - REEL, CANVAS AND AUGER PLATFORM, NOT PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

612267R1

COLLAR

reel tube

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

4шт.

2

611761R1

BRACKET, reel brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

517843R1

COTTER PIN

C-PIN, quick-attachable

2шт.

LC175

PIN

1/2 x 2-1/2" std-hd dld

2шт.

3

618854R1

BRACE, reel bat arm

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd mach

1шт.

LK-WASH, 5/16" cd-pltd

1шт.

4

612262R1

ASSEMBLY

ARM, reel bat

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd mach

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

1шт.

LK-WASH, 5/16" cd-pltd

2шт.

5

U13039

SPACER

reel bat arm inner

1шт.

6

588736R1

SPACER

reel bat arm outer

1шт.

7

607461R1

BAT, 10 ft reel, Serial Range: (1961-1964)

5шт.

7

609925R1

BAT, 10 ft reel, Serial Range: (1965-1966)

5шт.

7

607462R1

BAT, 12 ft reel, Serial Range: (1961-1964)

5шт.

7

609926R1

REEL

BAT, 12 ft reel, Serial Range: (1965-1966)

5шт.

7

607463R1

BOARD

BAT, 14 ft reel, Serial Range: (1961-1964)

5шт.

7

609927R1

BOARD

BAT, 14 ft reel, Serial Range: (1965-1966)

5шт.

7

607464R1

BAT, 16 ft reel, Serial Range: (1961-1964)

5шт.

7

609928R1

BAT, 16 ft reel, Serial Range: (1965-1966)

5шт.

BOLT W/NUT, 5/16 x 2-1/4" cd-pltd mach

1шт.

BOLT W/NUT, 5/16 x 2-1/2" cd-pltd mach

1шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga cd-pltd

1шт.

LK-WASH, 5/16" cd-pltd

1шт.

8

612272R92

TUBE, 10 ft reel 125.375" Length

1шт.

8

612273R92

TUBE, 12 ft reel 149.375" Length

1шт.

8

612274R92

TUBE, 14 ft reel 173.375" Length

1шт.

8

612275R92

TUBE, 16 ft reel 197.375" Length

1шт.

9

615325R1

WASHER, tube brg LH

2шт.

10

612452R2

GUARD

reel end LH

5шт.

10

612453R2

REINFORCEMENT

GUARD, reel end RH

5шт.

BOLT W/NUT, 1/4 x 1-3/8" cd-pltd type 2

20шт.

97865H

WASHER

WASH, 9/32 x 7/8 x 16 ga cd-pltd

40шт.

LK-WASH, 1/4" cd-pltd

20шт.
