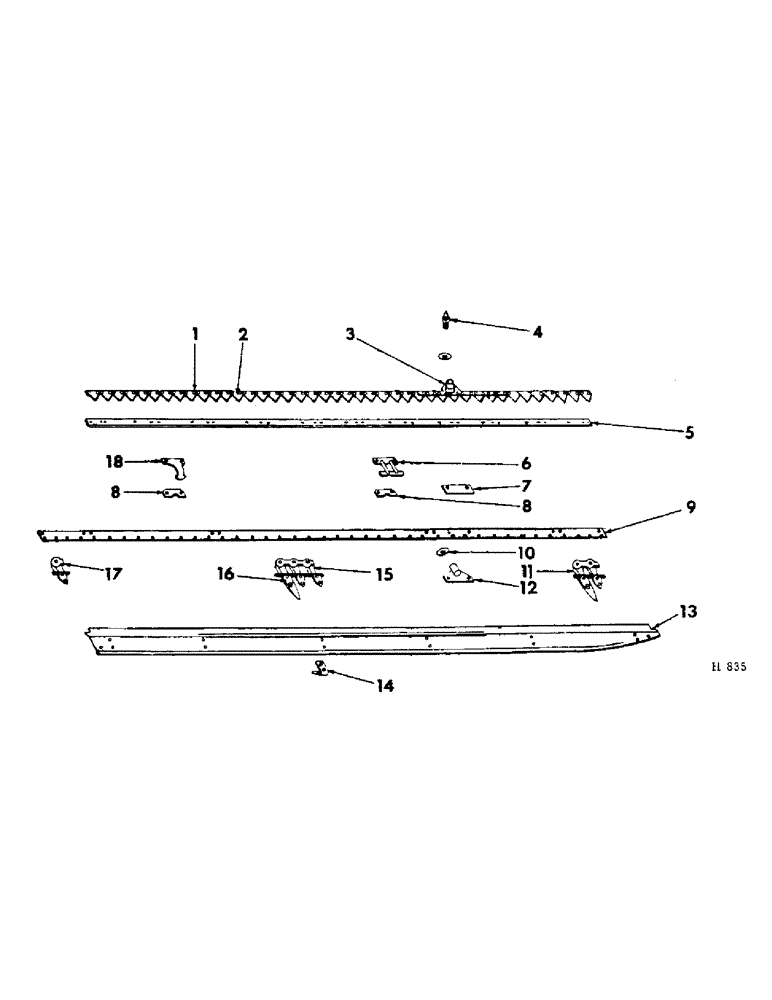

Запчасти Case IH 201 (A-101) - KNIFE, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

592819R92

KNIFE, sickle composed of: (1) back 592572R1, (1) head 592573R1, (42) section 457607R1, (72) rivet 20866R1, (12) rivet 20867R1

1шт.

2

457607R1

KNIFE SECTION

SECTION, knife cr-underserrated

42шт.

20868R1

RIVET, no. 6 x 11/16" cd-pltd rd-hd

72шт.

20867R1

RIVET, no. 6 x 1-1/16" cd-pltd rd-hd

12шт.

3

592573R92

HEAD, knife

1шт.

20867R1

RIVET, no. 6 x 1-1/16" cd-pltd rd-hd

12шт.

4

592563R1

BOLT, knife head lubrication

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

38971H

LK-WASHER, 1/2"

2шт.

5

592572R

BACK, knife

1шт.

20866R1

RIVET, no. 6 x 11/16" cd-pltd rd-hd

72шт.

6

592575R92

CLIP, knife head hold-down

2шт.

592640R1

LK-NUT, 7/16" special

4шт.

BOLT, 7/16 x 2" no. 3 plow

1шт.

BOLT, 7/16 x 2-1/4" no. 3 plow

2шт.

BOLT, 7/16 x 2-3/4" crg

1шт.

7

592569R1

PLATE, knife head wear

1шт.

BOLT W/NUT, 1/2 x 1-1/2" mach

2шт.

LK-WASHER, 1/2"

2шт.

8

615834R2

CLAMP

PLATE, knife clip wear

14шт.

592640R1

LK-NUT, 7/16" special

28шт.

BOLT, 7/16 x 1-3/4" no. 3 plow

22шт.

BOLT, 7/16 x 2" no. 3 plow

3шт.

BOLT, 7/16 x 2-1/4" no. 3 plow

2шт.

BOLT, 7/16 x 2-3/4" crg

1шт.

9

592570R1

BACK, sicle bar

1шт.

10

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

1шт.

11

592577R11

GUARD, double (includes 592579R1, plates & 104153, 104156, & 104157 rivets)

1шт.

592640R1

LK-NUT, 7/16" special

2шт.

BOLT, 7/16 x 1-3/4" no. 3 plow

1шт.

BOLT, 7/16 x 2-1/4" no. 3 plow

1шт.

12

592568R91

BRACKET, stabilizer anchor

1шт.

BOLT W/NUT, 1/2 x 1-1/2" mach

2шт.

LK-WASHER, 1/2"

2шт.

13

592592R1

APRON, cutter bar

1шт.

BOLT W/NUT, 1/4 x 3/4" crg

12шт.

106261

WASHER,1/4"

5/16 x 3/4 x 16 ga

12шт.

LK-WASHER, 1/4"

12шт.

14

592591R1

BRACKET, front apron

6шт.

592640R1

LK-NUT, 7/16" special

6шт.

BOLT, 7/16 x 1-1/4" mach

5шт.

BOLT, 7/16 x 1-3/4" mach

1шт.

15

592578R11

GUARD, triple (includes 592579R1, plates & 104153, 104156 & 104157, rivets)

12шт.

592640R1

LK-NUT, 7/16" special

36шт.

BOLT, 7/16 x 1-1/4" no. 3 plow

1шт.

BOLT, 7/16 x 1-3/4" no. 3 plow

21шт.

BOLT, 7/16 x 2" no. 3 plow

1шт.

BOLT, 7/16 x 2-1/4" no. 3 plow

1шт.

BOLT, 7/16 x 2-1/4" crg

11шт.

BOLT, 7/16 x 2-3/4" crg

1шт.

16

592579R1

PLATE, guard ledger smooth

39шт.

RIVET, 3/16 x 3/4" - 90deg. csk-hd rivet

26шт.

RIVET, 3/16 x 1-1/8" - 90deg. csk-hd

39шт.

RIVET, 3/16 x 1-1/4" - 90deg. csk-hd

13шт.

17

592576R11

GUARD, stud (includes 592579R1, plate & 104153 & 104156, rivets)

1шт.

592640R1

LK-NUT, 7/16" special

1шт.

BOLT, 7/16 x 1-3/4" no. 3 plow

1шт.

18

592574R1

CLIP, sickle

12шт.

592640R1

LK-NUT, 7/16" special

24шт.

BOLT, 7/16 x 1-3/4" no. 3 plow

22шт.

BOLT, 7/16 x 2" no. 3 plow

2шт.
