(A-100[A]) - FEATHER AND BRACKET, PEA BAR PLATFORM, NOT AUGER OR CANVAS PLATFORM

Запчасти Case IH 201 (A-100[A]) - FEATHER AND BRACKET, PEA BAR PLATFORM, NOT AUGER OR CANVAS PLATFORM (58) - ATTACHMENTS/HEADERS

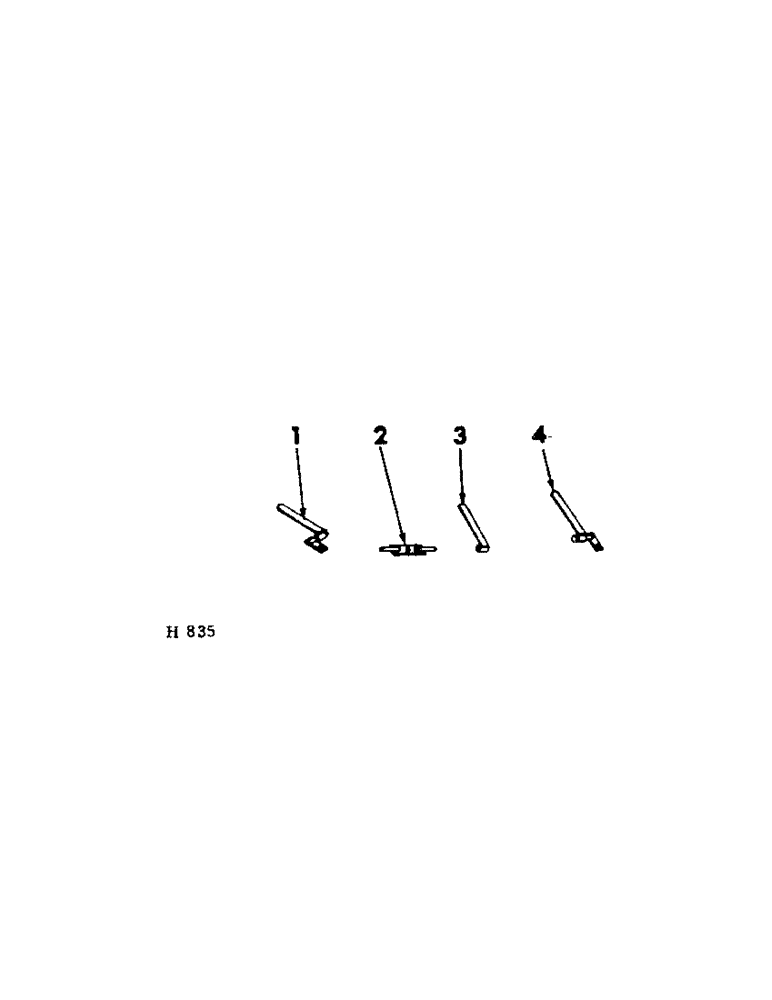

Схема запчастей Case IH 201 - (A-100[A]) - FEATHER AND BRACKET, PEA BAR PLATFORM, NOT AUGER OR CANVAS PLATFORM (58) - ATTACHMENTS/HEADERS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

592583R92

FEATHER, knife 9-1/2" RH

2шт.

2

592580R91

BRACKET, feather pivot

11шт.

592640R1

LK-NUT, 7/16" special

11шт.

BOLT, 7/16 x 2-1/4" crg

11шт.

3

592581R11

FEATHER, knife 9"

22шт.

4

592582R92

FEATHER, knife 9-1/2" LH

1шт.

592640R1

LK-NUT, 7/16" special

2шт.

BOLT W/NUT, 7/16 x 2-1/4" no. 3 plow

2шт.

Выбрано товаров: 8
