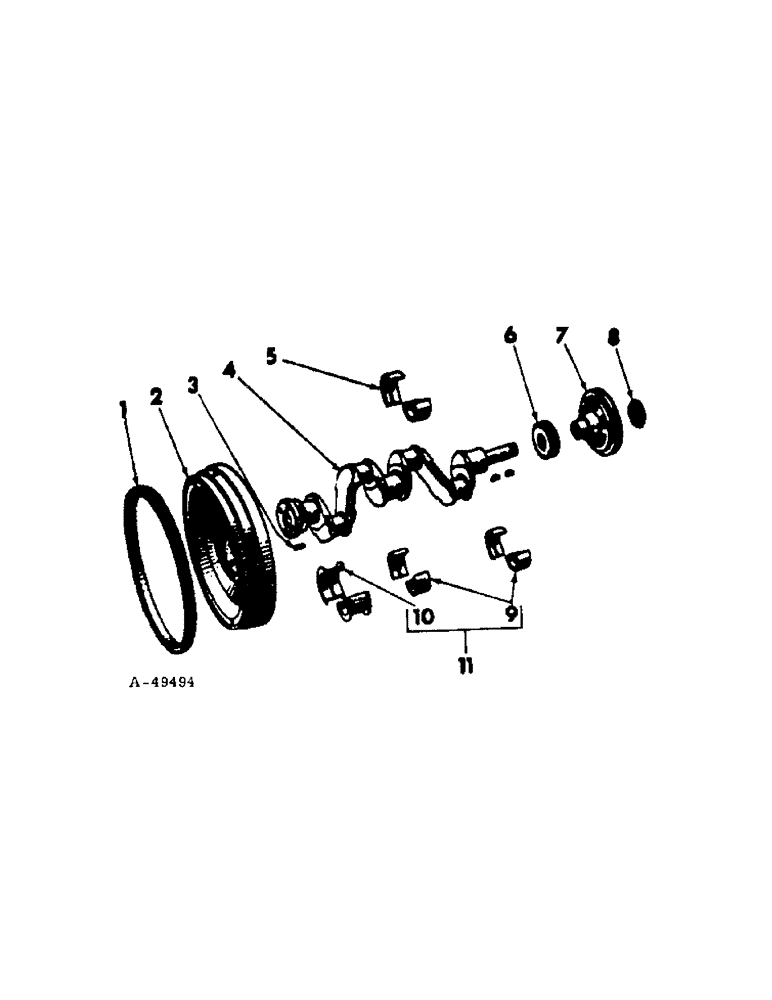

Запчасти Case IH 201 (A-010) - CRANKSHAFT AND CRANKSHAFT BEARINGS (10) - ENGINE

1

13456VA

GEAR

flywheel ring

1шт.

2

372436R11

FLYWHEEL (includes gear, 13456VA)

1шт.

614723R1

LOCK, flywheel bolt

2шт.

31634HA

BOLT (SPREADER)

BOLT, flywheel

4шт.

3

24550D

PIN

flywheel dowel

1шт.

4

367745R91

CRANKSHAFT, std (includes brgs, 367777R11, 367749R11 & 367750R11; & pin, 24550D)

1шт.

4

367746R92

PACKAGE, crankshaft undersize

1шт.

Composed of: (4) bearing 376646R11 or 376648R11 or 367785R11 or 367786R11, (2) bearing 376650R11 or 376653R11 or 367753R11 or 367755R11, (1) bearing 376651R11 or 376654R11 or 367754R11 or 367756R11, (1) crankshaft (NSS), (1) pin 24550D

1шт.

5

367777R11

BEARING

std connecting rod

4шт.

5

368778R91

SET, std connecting rod brg replacement (includes brgs, 367777R11)

1шт.

5

367786R11

BEARING ASSY

.002" undersize rod

4шт.

5

377271R91

KIT

SET, .002" undersize rod brg replacement (includes brgs, 367786R11)

1шт.

5

376646R11

BEARING ASSY

BEARING, .010" undersize rod

4шт.

5

376645R91

SET

.010" undersize rod brg replacement (includes brgs, 376646R11)

1шт.

5

376648R11

BEARING, .020" undersize rod

4шт.

5

376647R91

SET, .020" undersize rod brg replacement (includes brgs, 376648R11)

1шт.

5

367785R11

BEARING, .030" undersize rod

4шт.

5

372117R91

SET, .030" undersize rod brg replacement (includes brgs, 367785R11)

1шт.

6

46870DA

PINION

33T crankshaft

1шт.

218211

DRIVING SPROCKET

1/4 x 3/4" No. 91 Woodruff

1шт.

7

368665R3

PULLEY

front PTO

1шт.

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4" no. 91 Woodruff

1шт.

8

V84199

NUT,1"-14, Thin

starting crank

1шт.

9

367749R11

BEARING SET,2.4575" OD x 1.317"

BEARING, crankshaft front & center std

2шт.

9

367755R11

BEARING

front & center .002" undersize

2шт.

9

376650R11

BEARING ASSY

front & center .010" undersize

2шт.

9

376653R11

BEARING

front & center .020" undersize

2шт.

9

367753R11

BEARING, front & center .030" undersize

2шт.

10

367750R11

BEARING SET,3.125" OD x 1.4235"

BEARING, crankshaft rear std

1шт.

10

367756R11

BEARING

crankshaft rear .002" undersize

1шт.

10

376651R11

BEARING

crankshaft rear .010" undersize

1шт.

10

376654R11

BEARING

crankshaft rear .020" undersize

1шт.

10

367754R11

BEARING, crankshaft rear .030" undersize

1шт.

11

368779R91

KIT

SET, std crankshaft brg (includes brgs, 367749R11 & 367750R11)

1шт.

11

377272R91

KIT

SET, .002" undersize crankshaft brg (includes brgs, 367755R11 & 367756R11)

1шт.

11

376649R91

SET

.010" undersize crankshaft brg (includes brgs, 376650R11 & 376651R11)

1шт.

11

376652R91

SET

.020" undersize crankshaft brg (includes brgs, 376653R11 & 376654R11)

1шт.

11

372118R91

SET, .030" undersize crankshaft brg (includes brgs, 367753R11 & 367754R11)

1шт.
