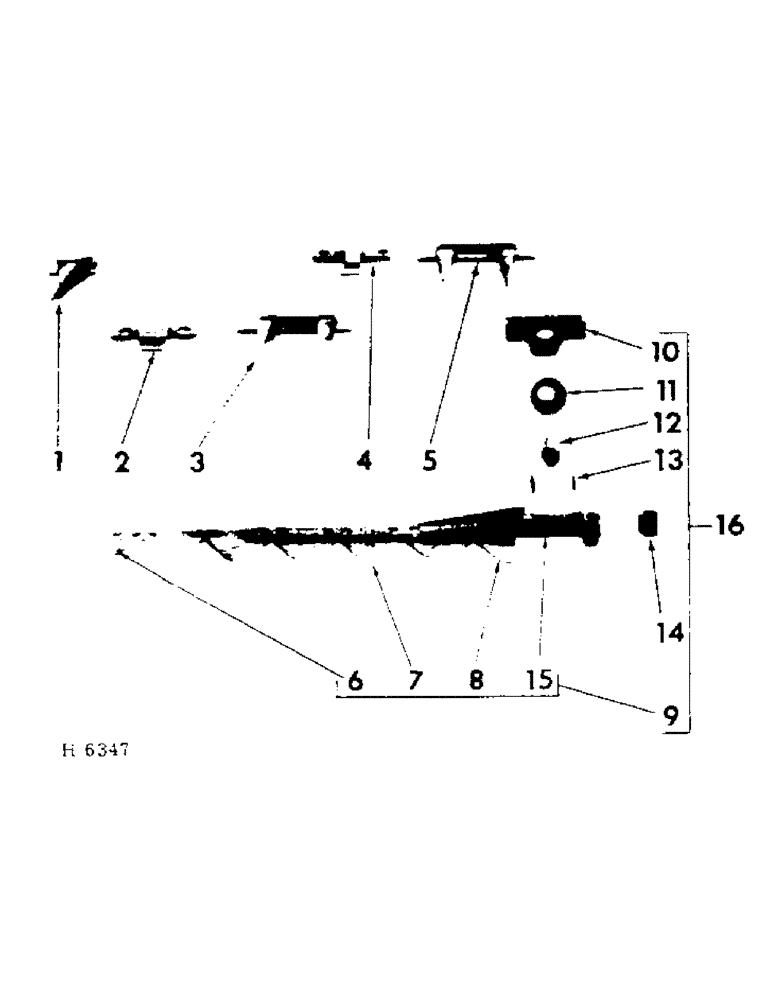

Запчасти Case IH 201 (A-099) - HAY KNIFE, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

613840R1

GUARD

single RH (opt w/613841R1)

1шт.

1

613841R1

GUARD

single RH (opt w/613840R1)

1шт.

M805

BOLT W/NUT, 7/16 x 1-5/16" type 2 no.3 plow

2шт.

2

613842R1

CLIP

HOLDER, knife

1шт.

M806

PLOW BOLT

BOLT W/NUT, 7/16 x 1-9/16" no. 3 plow

2шт.

3

613838R1

GUARD

forged steel double

1шт.

M805

BOLT W/NUT, 7/16 x 1-5/16" type 2 no. 3 plow

1шт.

M806

PLOW BOLT

BOLT W/NUT, 7/16 x 1-9/16" type 2 no. 3 plow

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 2-21/32" type 2 no. 3 plow

1шт.

4

613843R1

HOLDER

high arch knife

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

2шт.

5

613839R1

GUARD

forged steel double LH

1шт.

M805

BOLT W/NUT, 7/16 x 1-5/16" type 2 no. 3 plow

2шт.

6

619077R1

KNIFE SECTION

SECTION, cr-pltd half LH

1шт.

12712R1

RIVET

no. 5-1/2 x 15/16" ov-hd

1шт.

7

457604R1

KNIFE SECTION

SECTION, cr-pltd smooth

1шт.

457606R1

KNIFE SECTION

SECTION, cr-pltd underserrated

1шт.

19869R1

RIVET, no. 5-1/2 x 9/16" ov-hd Oval Hd, .211" x 9/16"

1шт.

8

619078R1

KNIFE

SECTION, cr-pltd half RH

1шт.

19869R1

RIVET, no. 5-1/2 x 9/16" ov-hd Oval Hd, .211" x 9/16"

1шт.

9

613203R91

KNIFE W/HEAD, 10 ft cr-pltd smooth

1шт.

9

613955R91

KNIFE W/HEAD, 10 ft cr-pltd underserrated

1шт.

9

613279R91

KNIFE W/HEAD, 12 ft cr-pltd smooth

1шт.

9

613956R91

KNIFE W/HEAD, 12 ft cr-pltd underserrated

1шт.

9

613280R91

KNIFE W/HEAD, 14 ft cr-pltd smooth

1шт.

9

613957R91

KNIFE W/HEAD, 14 ft cr-pltd underserrated

1шт.

9

613204R91

KNIFE W/HEAD, 16 ft cr-pltd smooth

1шт.

9

613958R91

KNIFE W/HEAD, 16 ft cr-pltd underserrated

1шт.

10

612082R1

ANCHOR, drive ball stud

1шт.

BOLT, 1/2-NF x 2-1/4" type 2

2шт.

U18588

NUT

1/2"-NF wheel

2шт.

11

358900R1

SEAL

COVER, ball stud dust

1шт.

12

612072R1

STUD

knife drive ball

1шт.

102649

SLOTTED NUT,5/8"-18, G5

C-PIN, 1/8 x 1-1/8"

1шт.

13

26935H

SEAT

drive ball stud

2шт.

14

613270R1

PLUG

NUT, ball stud adjusting

1шт.

15

613272R1

HEAD (CYLINDER)

HEAD, knife

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

BOLT W/NUT, 3/8-NF x 2" type 2

1шт.

LK-WASHER, 3/8"

1шт.

16

613347R91

KNIFE ASSY, 10 ft cr-pltd smooth

1шт.

16

613964R91

KNIFE ASSY, 10 ft cr-pltd underserrated

1шт.

16

613348R91

KNIFE ASSY, 12 ft cr-pltd smooth

1шт.

16

613965R91

KNIFE ASSY, 12 ft cr-pltd underserrated

1шт.

16

613349R91

KNIFE ASSY, 14 ft cr-pltd smooth

1шт.

16

613966R91

KNIFE ASSY, 14 ft cr-pltd underserrated

1шт.

16

613350R91

KNIFE ASSY, 16 ft cr-pltd smooth

1шт.

16

613967R91

KNIFE ASSY, 16 ft cr-pltd underserrated

1шт.
