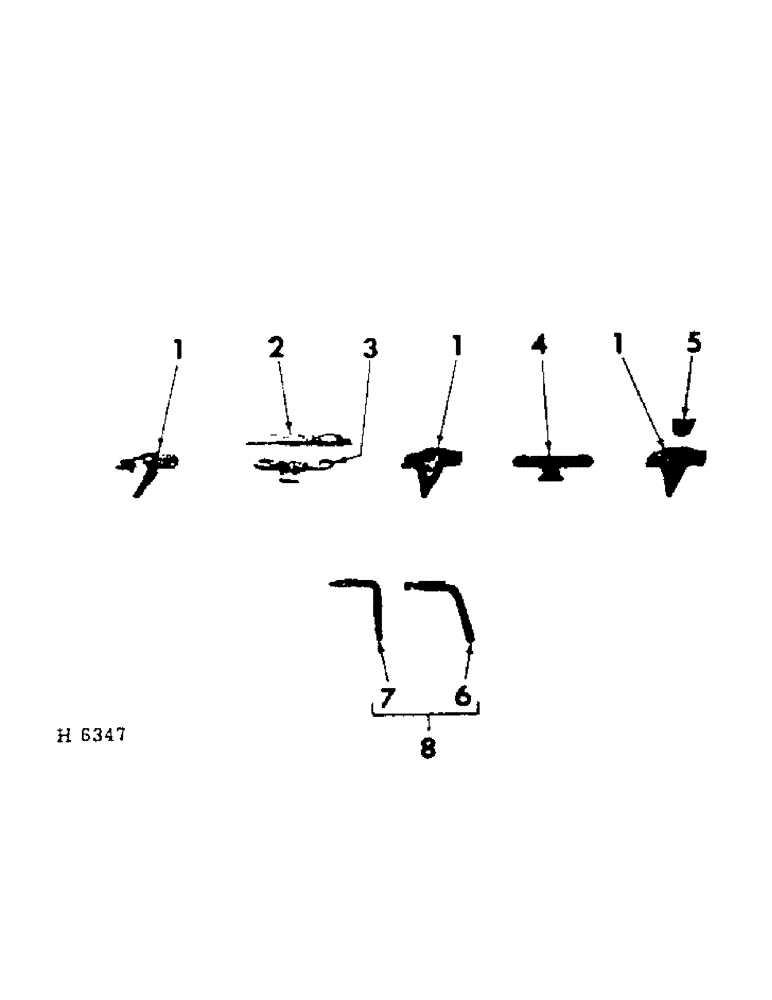

Запчасти Case IH 201 (A-099[A]) - KNIFE GUARDS WITH LEDGER PLATES (58) - ATTACHMENTS/HEADERS

1

MC2041Z

GUARD

GUARD, knife (includes 455634R1, plate & 472040R1, rivet)

1шт.

M805

BOLT W/NUT, 7/16 x 1-5/16" type 2 no. 3 plow

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

1шт.

2

615834R2

CLAMP

PLATE, knife wearing

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

2шт.

3

MA812

SUPPORT

CLIP, knife

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

2шт.

4

611759R1

KNIFE CLIP

CLIP, high arch knife

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT W/NUT, 7/16 x 1-21/32" type 2 no. 3 plow

1шт.

5

455634R1

PLATE

serrated ledger

1шт.

472040R1

RIVET

3/16 x 1" semi-tubular

1шт.

6

472038R1

ANVIL, rivet flaring tool

1шт.

7

472039R1

TOOL, rivet flaring

1шт.

8

472036R91

TOOL, ledger plate rivet flaring (includes 472038R1, anvil & 472039R1, tool)

1шт.
