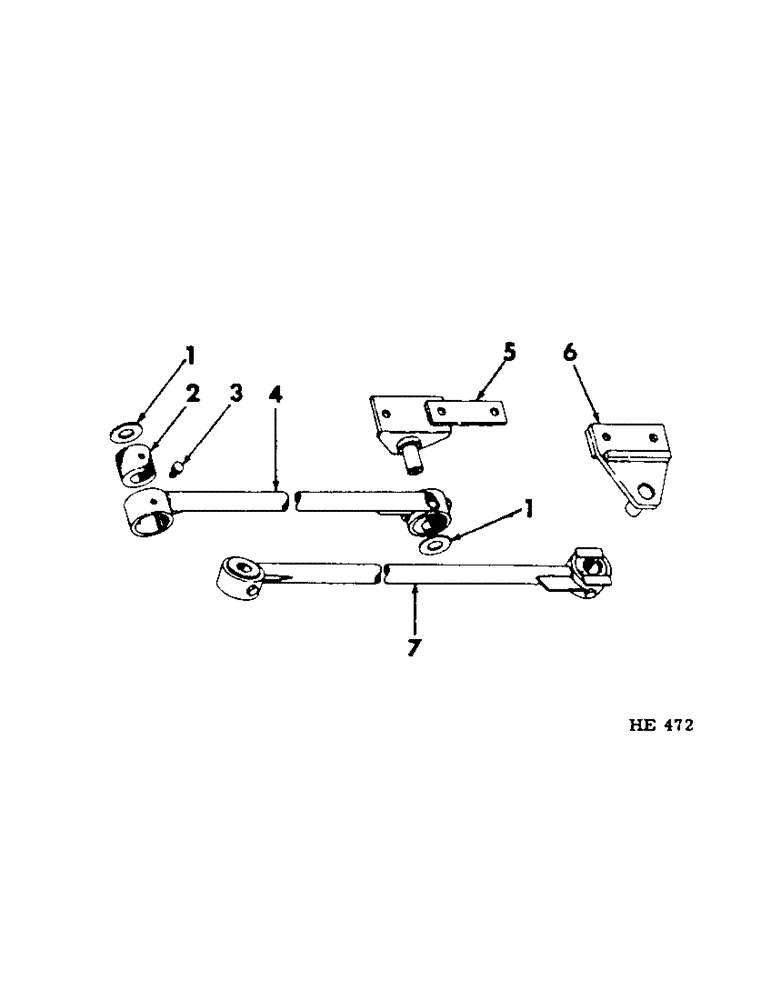

Запчасти Case IH 201 (A-097[A]) - KNIFE RADIUS AND SICKLE PITMAN, PEA BAR PLATFORM, NOT AUGER OR CANVAS PLATFORM (58) - ATTACHMENTS/HEADERS

1

3420H

WASHER, 13/32 x 1-3/4 x 16 ga

4шт.

2

592562R1

BUSHING

pitman rubber

4шт.

3

592638R1

SCREW, adjusting pipe tapping

8шт.

4

592565R92

PITMAN ASSEMBLY, radius composed of: (2) bushing 592562R1, (4) screw 592638R1, (1) pitman (NSS)

1шт.

5

592564R92

BRACKET, radius pitman

1шт.

592640R1

LK-NUT, 7/16" special

2шт.

BOLT, 7/16 x 1-3/4" mach

2шт.

6

592558R91

BRACKET, swaybar pitman

1шт.

BOLT, 1/2-NF x 2-1/4" type 2

2шт.

U18588

NUT

BOLT, 1/2"-NF wheel

2шт.

7

592559R92

PITTMAN ASSEMBLY, sickle composed of: (2) bushing 592562R1, (4) screw 592638R1, (1) pitman (NSS)

1шт.
