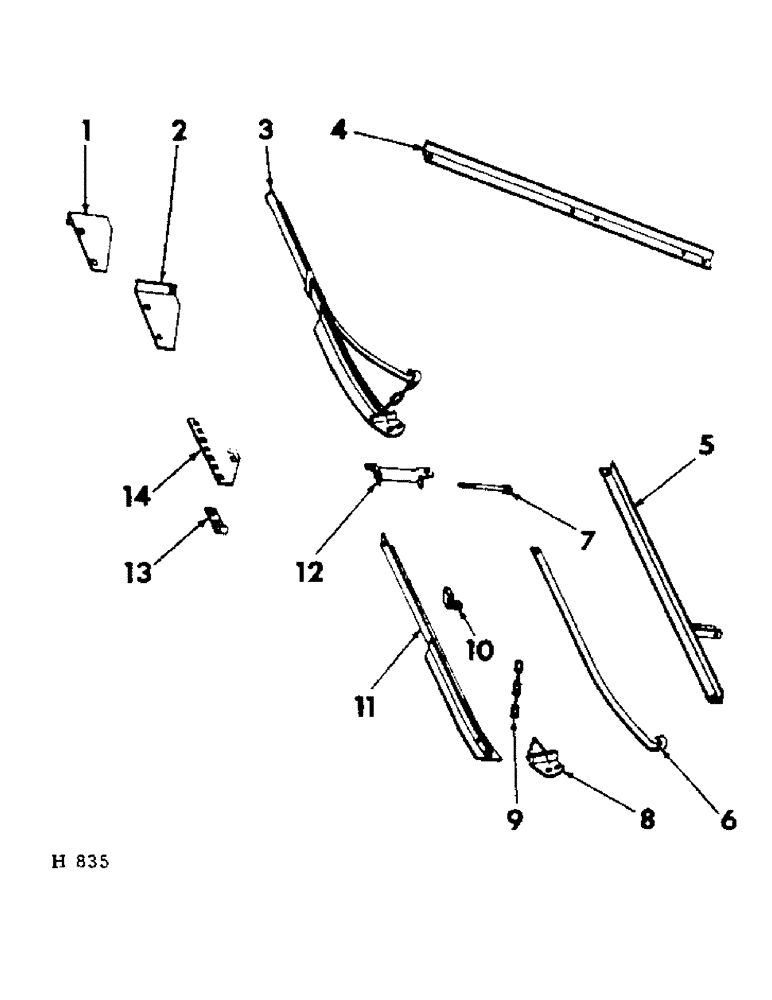

Запчасти Case IH 201 (A-096) - PLATFORM FLOATING SHOE, PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATORM (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
592542R1
BRACKET, shoe rear outer LH
1шт.
BOLT W/NUT, 7/16 x 1" crg
2шт.
LK-WASHER, 7/16"
2шт.
2
592543R1
BRACKET, shoe rear outer RH
1шт.
BOLT W/NUT, 7/16 x 1" crg
2шт.
LK-WASHER, 7/16"
2шт.
3
594852R91
SHOE ASSEMBLY, floating
4шт.
Composed of: (1) bolt 17412R1, (1) bolt 17445R1, (1) bolt 592555R1, (1) chain 592551R1, (1) clip 592552R11, (1) lockwasher 103320, (2) lockwasher 103321, (1) nut 102634, (1) nut 102635, (1) nut 385525R1, (1) pad 592549R1, (1) shoe 592548R91, (1) spring 592550R1, (2) washer 106263
1шт.
BOLT W/NUT, 3/8 x 1" crg
8шт.
BOLT W/NUT, 1/2 x 1-1/2" mach
8шт.
LK-WASHER, 3/8"
8шт.
LK-WASHER, 1/2"
8шт.
4
592544R1
ANGLE, rear shoe anchor LH shown
1шт.
4
592545R1
ANGLE, rear shoe anchor RH
1шт.
BOLT W/NUT, 3/8 x 1" crg
1шт.
LK-WASHER, 3/8"
1шт.
5
592540R91
BRACKET, rear shoe inner LH shown
1шт.
5
592541R91
BRACKET, rear shoe inner RH
1шт.
BOLT W/NUT, 3/8 x 1" mach
2шт.
LK-WASHER, 3/8"
2шт.
6
592550R1
SPRING, floating shoe flat
4шт.
BOLT W/NUT, 3/8 x 3/4" mach
4шт.
LK-WASHER, 3/8"
4шт.
7
592557R2
BOLT, shoe front hanger
4шт.
385525R1
LOCK NUT,3/8"-16, GB
LK-NUT, 3/8" special
4шт.
495-21044
WASHER,3/8"
(7/16 x 1 x 16 ga) 3/8"
8шт.
8
592549R1
PAD, floating shoe
4шт.
BOLT W/NUT, 5/16 x 1-1/4" mach
4шт.
LK-WASHER, 5/16"
4шт.
9
592551R1
CHAIN, shoe anchor
4шт.
592555R1
BOLT, shoe anchor chain
4шт.
385525R1
LOCK NUT,3/8"-16, GB
LK-NUT, 3/8" special
4шт.
495-21044
WASHER,3/8"
(7/16 x 1 x 16 ga) 3/8"
8шт.
10
592552R11
CLIP, spring tension (includes 102581)
1шт.
83-1316
SET SCREW,Hex Soc, 5/16"-18 x 3/8"
SCREW, 5/16 x 3/8" hdls cup-pt set
4шт.
11
592548R91
SHOE, floating
4шт.
12
592556R91
HANGER, floating shoe front
4шт.
592640R1
LK-NUT, 7/16" special
8шт.
BOLT, 7/16 x 1-1/4" mach
7шт.
BOLT, 7/16 x 1-3/4" mach
1шт.
13
592553R91
HINGE, shoe
4шт.
BOLT W/NUT, 3/8 x 2-3/4" mach
4шт.
LK-WASHER, 3/8"
4шт.
14
592554R1
PLATE, shoe adjusting
4шт.
BOLT W/NUT, 3/8 x 1" crg
8шт.
LK-WASHER, 3/8"
8шт.
Выбрано товаров: 46
