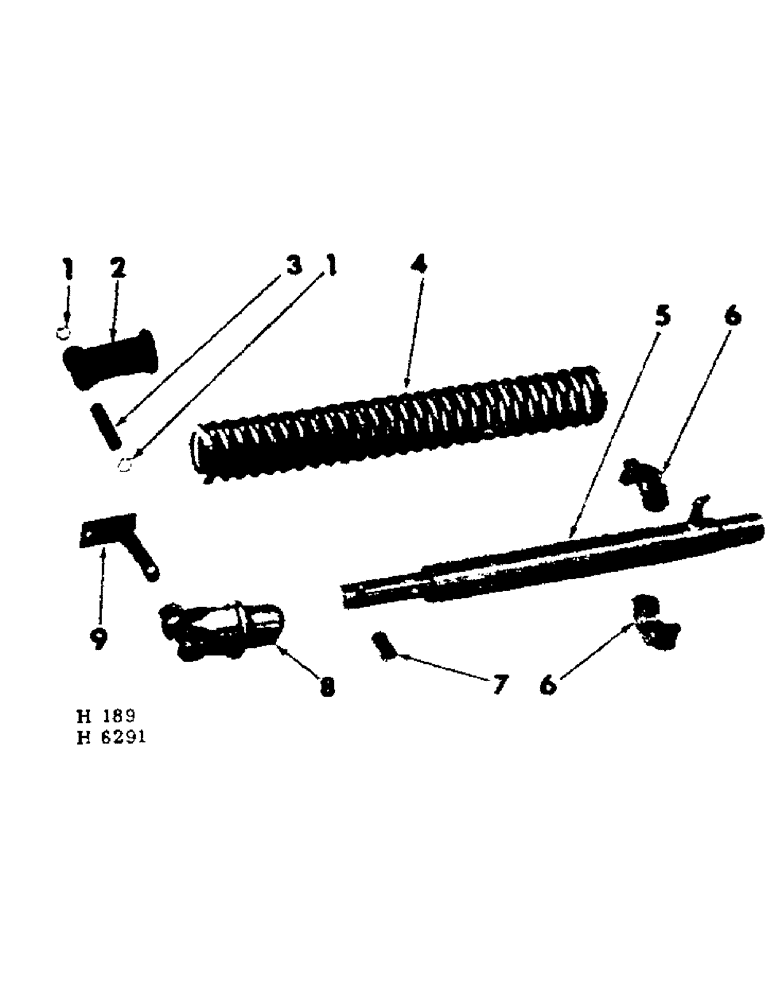

Запчасти Case IH 201 (A-095) - PLATFORM LIFT CYLINDER MOUNTING PARTS (58) - ATTACHMENTS/HEADERS

1

454417R1

SNAP RING,#100, Ext

Ring, Snap, , pivot pin #100, Ext

4шт.

Canvas & Pea Bar Platform

1шт.

2

611702R1

CAP, piston rod

2шт.

Canvas & Pea Bar Platform, 10 Ft Auger Platform

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

611725R1

PIN, cap pivot

2шт.

Canvas & Pea Bar Platform

1шт.

4

611950R1

SPRING, lift cyl

2шт.

Canvas & Pea Bar Platform, 10 Ft Auger Platform

1шт.

4

609817R1

SPRING, lift cyl

2шт.

12 & 14 Ft Auger Platform

1шт.

5

CYLINDER, platform hyd lift (refer to "platform lift cylinder")

2шт.

6

611716R1

CLAMP, piston rod spg half

4шт.

BOLT W/NUT, 1/2 x 3-1/4" cd-pltd mach

4шт.

LK-WASHER, 1/2" cd-pltd

4шт.

7

611726R1

PIN, cap locking

2шт.

Canvas & Pea Bar Platform, 10 Ft Auger Platform

1шт.

7

609818R1

PIN, cap locking

2шт.

12 & 14 Ft Auger Platform

1шт.

8

609819R1

CAP, piston rod

2шт.

12 & 14 Ft Auger Platform

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

609820R11

PIVOT, cap front

2шт.

10 Ft Auger Platform, 12 & 14 Ft Auger Platform

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga cd-pltd

2шт.

LK-WASHER, 3/8" cd-pltd

2шт.
