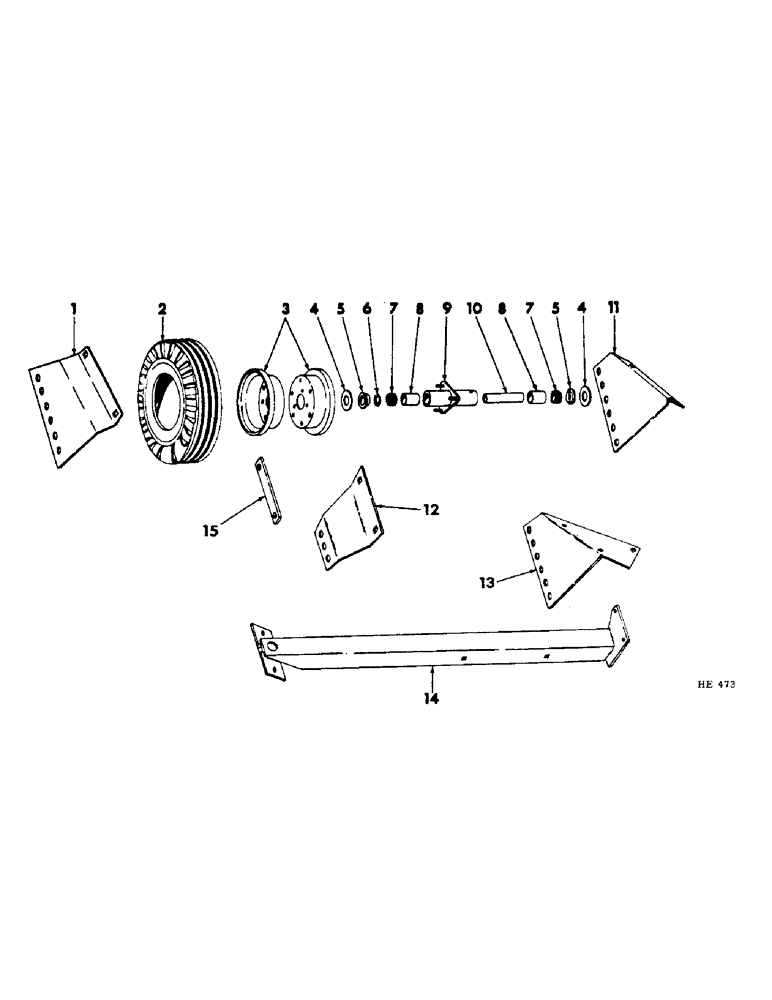

Запчасти Case IH 201 (A-094) - GAUGE WHEEL, CANVAS AND AUGER PLATFORM, NOT PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609815R1

SECTION, mounting outer LH shown

1шт.

Auger Platform

1шт.

1

609816R1

SECTION, mounting outer RH

1шт.

Auger Platform

1шт.

BOLT W/NUT, 7/16 x 1" crg

3шт.

LK-WASHER, 7/16"

3шт.

2

TIRE & TUBE, 5.30/4.50-6

2шт.

3

617386R1

RIM

DISC, wheel outer (valve hole)

2шт.

3

617385R1

RIM

DISC, wheel inner

2шт.

BOLT W/NUT, 3/8 x 3/4" cd-pltd mach

12шт.

LK-WASHER, 3/8" cd-pltd

12шт.

4

619505R1

WASHER

wheel hub

4шт.

5

617383R1

BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L

RETAINER, wheel

4шт.

6

617381R1

WASHER

special wheel hub

2шт.

7

561478R91

BEARING, ROLLER,1" ID x 1.375" OD x 1"

BEARING, wheel

4шт.

8

617382R1

SPACER

wheel

4шт.

9

617384R91

HUB

wheel (includes 109454, fitting, 607141R1, nuts & 607140R1, studs)

2шт.

607140R1

BOLT,3/8" - 24 x 7/8", Steel

STUD, 3/8-NF x 7/8" wheel

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

607141R1

NUT

3/8"-NF stud

6шт.

BOLT W/NUT, 3/4 x 7-1/2" cd-pltd mach

2шт.

LK-WASHER, 3/8" cd-pltd

2шт.

10

617387R1

SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L

wheel hub support

2шт.

11

609811R1

BRACKET, 10 ft mounting inner LH shown

1шт.

Auger Platform

1шт.

11

609812R1

BRACKET, 10 ft mounting inner RH

1шт.

Auger Platform

1шт.

BOLT W/NUT, 7/16 x 1" crg

4шт.

LK-WASHER, 7/16"

4шт.

12

614740R1

BRACKET, mounting

4шт.

Canvas Platform

1шт.

BOLT W/NUT, 7/16 x 1" crg (4-10 ft) (8-12, 14 & 16 ft)

1шт.

LK-WASHER, 7/16" (4-10 ft) (8-12, 14 & 16 ft)

1шт.

13

609813R1

BRACKET, 12 & 14 ft mounting inner LH shown

1шт.

Auger Platform

1шт.

13

609814R1

BRACKET, 12 & 14 ft mounting inner RH

1шт.

Auger Platform

1шт.

BOLT W/NUT, 7/16 x 1" crg

6шт.

14

614734R11

ANGLE, 10 ft mounting LH

1шт.

Canvas Platform

1шт.

14

614738R91

ANGLE, 12 & 16 ft mounting LH shown

1шт.

Canvas Platform

1шт.

14

614735R11

ANGLE, 10 ft mounting RH

1шт.

Canvas Platform

1шт.

14

614739R91

ANGLE, 12 & 16 ft mounting RH

1шт.

Canvas Platform

1шт.

BOLT W/NUT, 3/8 x 1" crg

4шт.

BOLT W/NUT, 3/8 x 1-1/4" crg

2шт.

BOLT W/NUT, 5/16 x 1-1/2" mach

2шт.

Q399

WASHER

11/32 x 1 x 16 ga

6шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga (4-10 ft)

1шт.

LK-WASHER, 5/16"

2шт.

LK-WASHER, 3/8"

6шт.

15

607989R1

STRAP, 10 ft mounting

1шт.

Canvas Platform

1шт.

BOLT W/NUT, 7/16 x 1-3/8" crg

4шт.

LK-WASHER, 7/16"

4шт.
