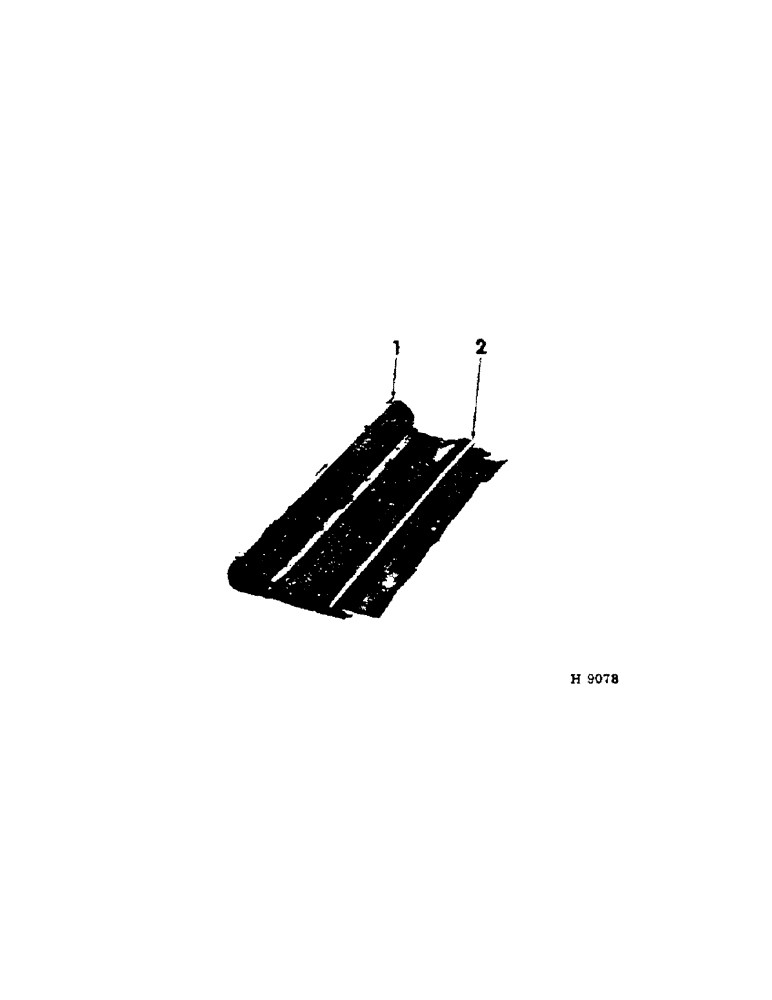

Запчасти Case IH 201 (A-093) - PLATFORM APRON, SELF-CLEANING, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

597125R91

NO LONGER SERVICED

APRON, 10 ft. self-cleaning

2шт.

597126R91

APRON

12 ft. self-cleaning

2шт.

597128R91

APRON

14 ft. self-cleaning

2шт.

597129R91

APRON, 16 ft. self-cleaning

2шт.

1

609954R1

SLAT

apron

1шт.

Q3569

RIVET,Csk, 3/16" x 9/16"

186 x 9/16" cop-tub

1шт.

451312R1

STAPLE

STABLE, double pointed

1шт.

2

609955R11

BAR

canvas connecting (includes 132926, screws; 120614, nuts & 120217, lk-washer)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10-NF x 1-1/4" slt-rd-hd cd-pltd

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
