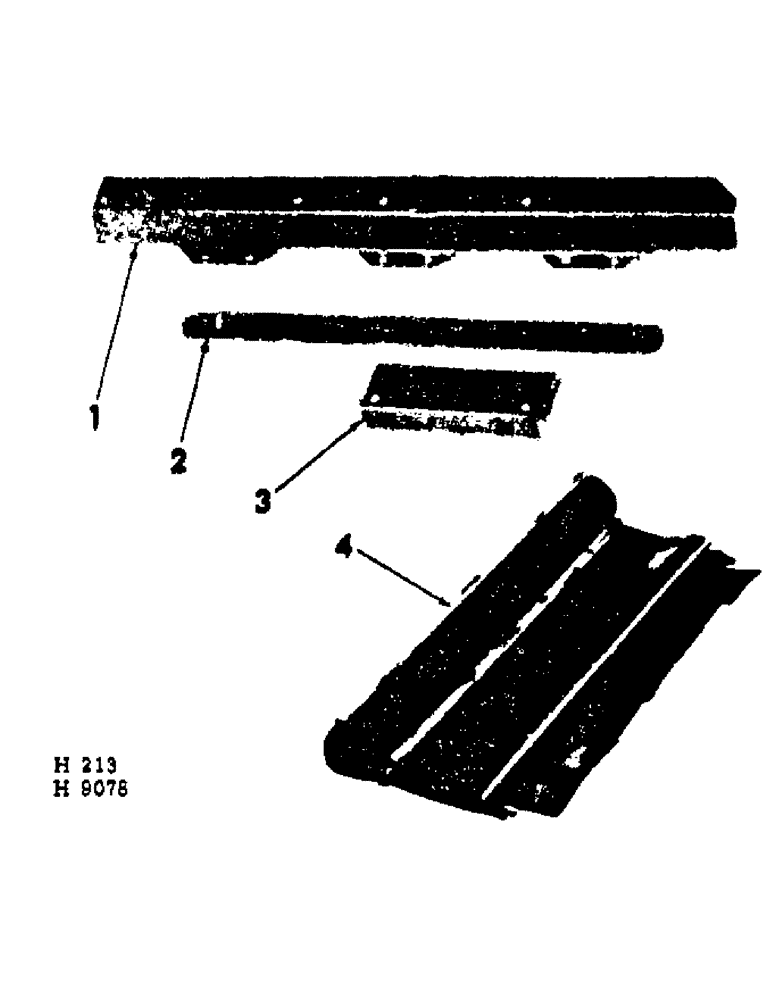

Запчасти Case IH 201 (A-092) - SELF-CLEANING NARROW APRON, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

609929R91

PACKAGE, 10 ft platform self-cleaning apron conversion

1шт.

609930R91

PACKAGE, 12 ft platform self-cleaning apron conversion

1шт.

609931R91

PACKAGE, 14 ft platform self-cleaning apron conversion

1шт.

609932R91

PACKAGE, 16 ft platform self-cleaning apron conversion

1шт.

1

609942R1

SHIELD, 10 ft apron front LH shown

1шт.

SCREW W/NUT, 1/4 x 1-1/2" slt-rd-hd cd-pltd

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

3шт.

LK-WASHER, 1/4" cd-pltd

1шт.

LK-WASHER, 5/16" cd-pltd

3шт.

1

609944R1

SHIELD, 12 ft apron front LH

1шт.

SCREW W/NUT, 1/4 x 1-1/2" slt-rd-hd cd-pltd

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

2шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

LK-WASHER, 1/4" cd-pltd

1шт.

LK-WASHER, 5/16" cd-pltd

4шт.

1

609946R1

SHIELD, 14 ft apron front LH

1шт.

1

609948R1

SHIELD, 16 ft apron front LH

1шт.

SCREW W/NUT, 1/4 x 1-1/2" slt-rd-hd cd-pltd

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

4шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

LK-WASHER, 1/4" cd-pltd

2шт.

LK-WASHER, 5/16" cd-pltd

6шт.

1

609943R1

SHIELD, 10 ft apron front RH

1шт.

SCREW W/NUT, 1/4 x 1-1/2" slt-rd-hd cd-pltd

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

3шт.

LK-WASHER, 1/4" cd-pltd

1шт.

LK-WASHER, 5/16" cd-pltd

3шт.

1

609945R1

SHIELD, 12 ft apron front RH

1шт.

SCREW W/NUT, 1/4 x 1-1/2" slt-rd-hd cd-pltd

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

2шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

LK-WASHER, 1/4" cd-pltd

1шт.

LK-WASHER, 5/16" cd-pltd

4шт.

1

609947R1

SHIELD, 14 ft apron front RH

1шт.

1

609949R1

SHIELD, 16 ft apron front RH

1шт.

SCREW W/NUT, 1/4 x 1-1/2" slt-rd-hd cd-pltd

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

4шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

LK-WASHER, 1/4" cd-pltd

1шт.

LK-WASHER, 5/16" cd-pltd

16шт.

2

609938R1

RUNNER

10 ft apron guide front

2шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

6шт.

LK-WASHER, 5/16" cd-pltd

6шт.

2

609939R1

RUNNER, 12 ft apron guide front

2шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

4шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

4шт.

-_

LK-WASHER, 5/16" cd-pltd

8шт.

2

609940R1

RUNNER, 14 ft apron guide front

2шт.

2

609941R1

RUNNER, 16 ft apron guide front

2шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

8шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

4шт.

LK-WASHER, 5/16" cd-pltd

12шт.

3

609933R1

SUPPORT, 10 ft apron front

2шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

4шт.

LK-WASHER, 5/16" cd-pltd

4шт.

3

609934R1

SUPPORT, 12 ft apron front

2шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

2шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

4шт.

LK-WASHER, 5/16" cd-pltd

6шт.

3

609935R1

SUPPORT, 14 ft apron front

2шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

6шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

4шт.

LK-WASHER, 5/16" cd-pltd

10шт.

3

609936R1

SUPPORT, 16 ft. apron front LH

1шт.

3

609937R1

SUPPORT, 16 ft. apron front RH

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

6шт.

BOLT W/NUT, 5/16 x 1-3/4" cd-pltd crg

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga cd-pltd

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

4шт.

LK-WASHER, 5/16" cd-pltd

10шт.

4

APRON, self-cleaning canvas (for component parts refer to "platform apron (self-cleaning)")

2шт.
