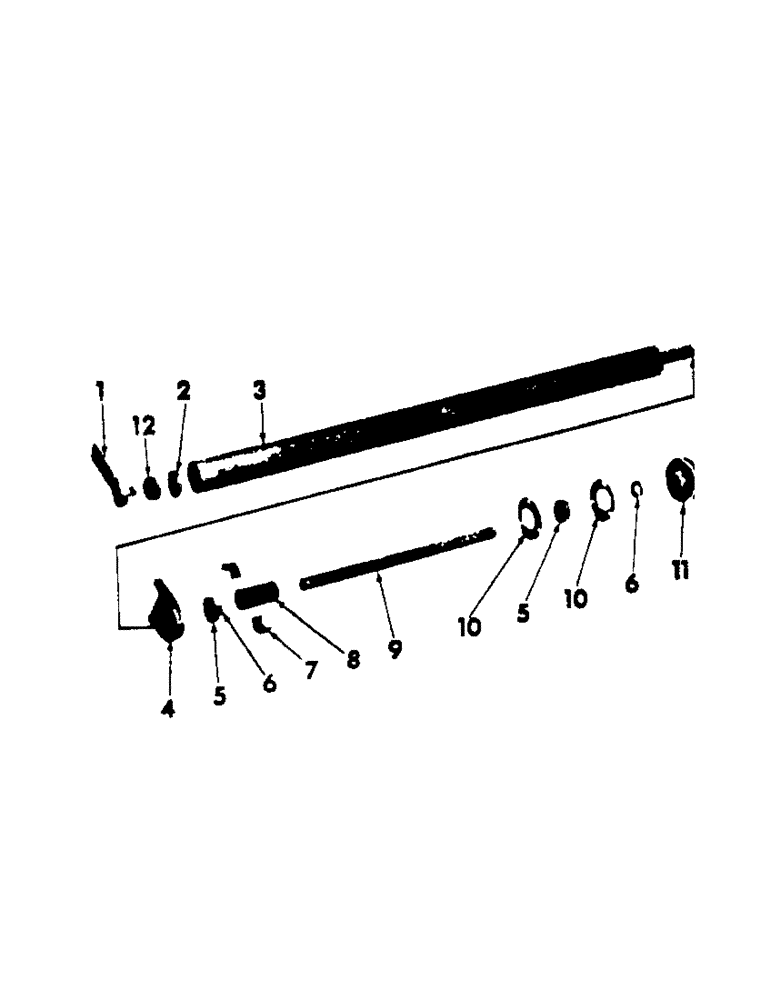

Запчасти Case IH 201 (A-090) - PLATFORM DRIVE ROLLER, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

611762R11

SUPPORT, front brg, Serial Range: (1961-1964)

2шт.

1

592139R11

SUPPORT

front brg, Serial Range: (1965-1966)

2шт.

BOLT, 3/8 x 1" mach

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

LK-WASHER, 3/8"

4шт.

2

613390R91

ROLLER BEARING

drive front, Serial Range: (1961-1964)

2шт.

2

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

drive front (1965 to 1966)

2шт.

3

612241R92

ROLLER, drive, Serial Range: (1961-1964)

2шт.

3

591868R91

ROLLER, drive, Serial Range: (1965-1966)

2шт.

4

611751R1

HOUSING, brg LH shown

1шт.

4

611752R1

HOUSING, brg RH

1шт.

BOLT, 3/8 x 7/8" mach

4шт.

5

BEARING, countershaft (for SKF bearing, 1706205100 only - order 1-455965R91, bearing & 1-455102R11, collar)

2шт.

5

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

countershaft (Fafnir, New Departure & SKF - for use w/455102R11, collar)

2шт.

5

607416R91

BEARING

countershaft (Fischer - for use w/607417R11, collar)

2шт.

6

COLLAR W/SCREW, brg locking (for SKF collar LC-100 only - order 1-455965R91, bearing & 1-455102R11, collar)

2шт.

6

455102R11

COLLAR

W/SCREW, brg locking (Fafnir, New Departure & SKF for use w/455965R91, bearing)

2шт.

6

607417R11

COLLAR

W/SCREW, brg locking (Fischer - for use w/607416R91, bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

7

618510R1

CLAMP, hose coupling

8шт.

BOLT W/NUT, 5/16 x 2-1/4" mach

4шт.

LK-WASHER, 5/16"

4шт.

8

618511R1

HOSE

drive roller coupling

2шт.

9

612062R2

SHAFT, roller rear

2шт.

10

462360R1

FLANGED BEARING

TTE, brg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

6шт.

LK-WASHER, 5/16"

6шт.

11

618697R2

PULLEY, roller countershaft

2шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 1-1/2" gib-hd

2шт.

12

592142R1

RETAINER

front brg, Serial Range: (1965-1966)

2шт.
