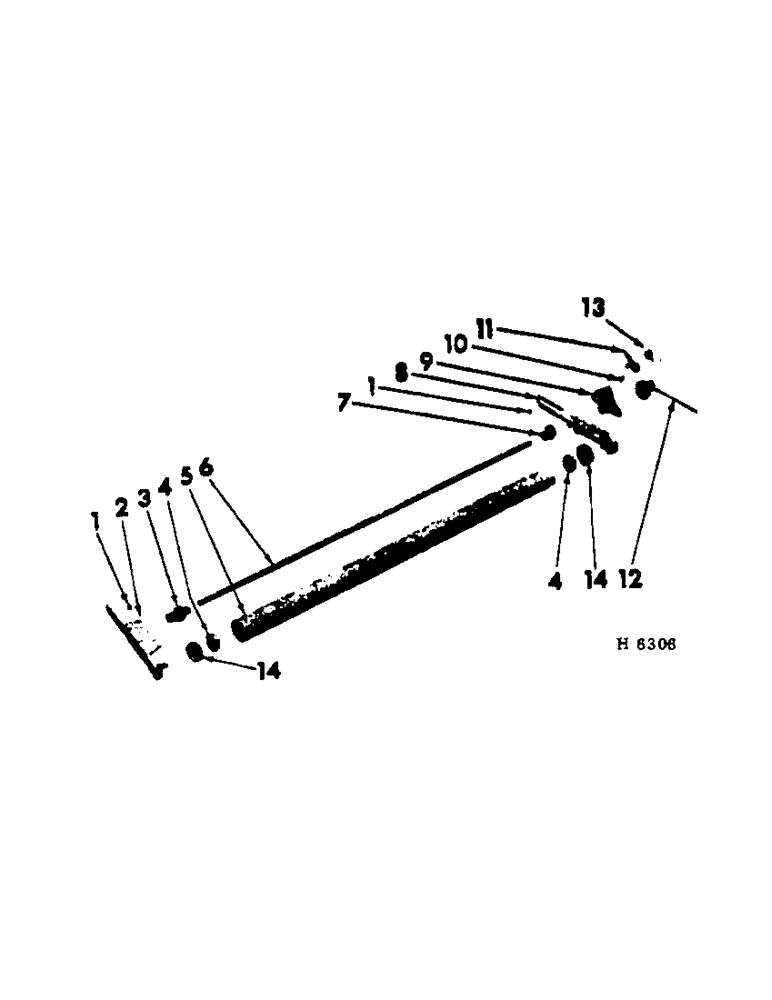

Запчасти Case IH 201 (A-090[A]) - PLATFORM IDLER ROLLER, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

M42047

SPACER, brg support

4шт.

2

611763R11

SUPPORT, LH front & RH rear brg, Serial Range: (1961-1964)

2шт.

2

592148R11

SUPPORT

LH front & RH rear brg, Serial Range: (1965-1966)

2шт.

BOLT, 5/16 x 1" mach

1шт.

BOLT W/NUT, 5/16 x 1-1/4" mach

1шт.

Q399

WASHER

11/32 x 1 x 16 ga

3шт.

LK-WASHER, 5/16"

2шт.

3

618612R1

PINION

rack front

2шт.

364437R1

PIN,3/16" x 7/8", Coiled

2шт.

4

613390R91

ROLLER BEARING

idler roller, Serial Range: (1961-1964)

4шт.

4

592141R91

ROLLER BEARING,17.65mm Hex x 47mm OD x 20.95mm W

idler roller (1965 to 1966)

4шт.

5

612226R11

ROLLER, driven, Serial Range: (1961-1964)

2шт.

5

592147R1

TUBE,2.25" OD, 40.94" Length

PIPE, roller (1965 to 1966)

2шт.

6

612069R1

SHAFT, rack pinion

2шт.

7

618611R1

PINION

rack rear

2шт.

364437R1

PIN,3/16" x 7/8", Coiled

2шт.

8

611764R11

SUPPORT, RH front & LH rear brg, Serial Range: (1961-1964)

2шт.

8

592149R11

SUPPORT, RH front & LH rear brg, Serial Range: (1965-1966)

2шт.

BOLT, 5/16 x 1" mach

1шт.

BOLT W/NUT, 5/16 x 1-1/4" mach

1шт.

Q399

WASHER

11/32 x 1 x 16 ga

3шт.

LK-WASHER, 5/16"

2шт.

9

618616R1

BRACKET, roller alignment, Serial Range: (1961-1964)

2шт.

9

608746R1

BRACKET, roller alignment, Serial Range: (1965-1966)

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FITTING, 1/4"

1шт.

BOLT W/NUT, 3/8 x 1" crg

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

LK-WASHER, 3/8"

4шт.

10

618631R1

SPACER

ratchet pawl, Serial Range: (1961-1963)

2шт.

10

608747R1

SPACER, ratchet pawl, Serial Range: (1964-1965)

2шт.

11

618613R2

PAWL, roller tightener ratchet

2шт.

BOLT, 5/16 x 1-1/2" type 2

2шт.

Q399

WASHER

11/32 x 1 x 16 ga

2шт.

LK-WASHER, 5/16"

2шт.

12

611758R11

RATCHET, roller tightener LH shown

1шт.

12

611757R11

RATCHET, roller tightener RH

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

1шт.

13

608748R1

SPRING

pawl hold-down LH shown

1шт.

13

609052R1

SPRING, pawl hold-down RH

1шт.

14

592142R1

RETAINER

brg, Serial Range: (1965-1966)

4шт.
