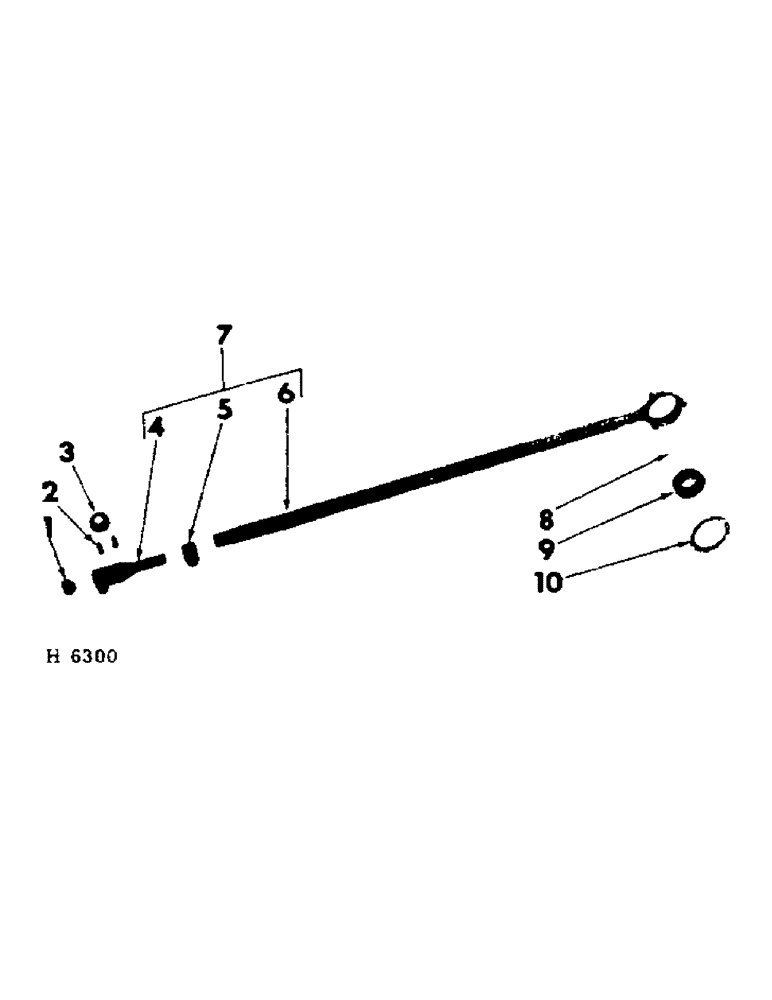

Запчасти Case IH 201 (A-089) - KNIFE PITMAN ARM (58) - ATTACHMENTS/HEADERS

1

613270R1

PLUG

NUT, ball stud adjusting

1шт.

2

26935H

SEAT

ball stud

2шт.

3

358900R1

SEAL

COVER, ball stud dust

1шт.

4

613271R1

LINK

pitman adjustable

1шт.

271293

PULLEY

LUB-FTG, 5/16"-NF

1шт.

219754

BACK-UP RING

7/8"-NF jam

1шт.

BOLT W/NUT, 3/8-NF x 1-3/4" type 2

1шт.

LK-WASH, 3/8"

1шт.

5

359985R1

CLAMP

arm front (opt w/358981R1)

1шт.

5

358981R1

CLAMP, arm front (opt w/359985R1)

1шт.

BOLT W/NUT, 1/2-NF x 2" type 2

1шт.

LK-WASH, 1/2" ext-tooth

1шт.

6

612227R11

PITMAN, 10 ft knife

1шт.

Canvas & Pea Bar Platform

1шт.

6

609737R11

PITMAN, 10 ft knife

1шт.

Auger Platform

1шт.

6

612228R11

PITMAN, 12 ft knife

1шт.

Canvas & Pea Bar Platform

1шт.

6

609738R11

PITMAN, 12 ft knife

1шт.

Auger Platform

1шт.

6

612229R11

PITMAN, 14 ft knife

1шт.

Canvas & Pea Bar Platform

1шт.

6

609739R11

PITMAN, 14 ft knife

1шт.

Auger Platform

1шт.

6

612230R11

PITMAN, 16 ft knife

1шт.

Canvas & Pea Bar Platform

1шт.

7

609734R91

PITMAN, 10 ft arm, composed of: (1) arm 609737R11, (1) bolt 181435, (1) clamp 359985R1, (1) link 613231R1, (1) lock washer 114608, (1) nut 103026, (1) nut 219754

1шт.

Auger Platform

1шт.

7

609735R91

PITMAN, 12 ft arm, composed of: (1) arm 609738R11, (1) bolt 181435, (1) clamp 359985R1, (1) link 613271R1, (1) lock washer 114608, (1) nut 103028, (1) nut 219754

1шт.

Auger Platform

1шт.

7

609736R91

PITMAN, 14 ft arm, composed of: (1) arm 609739R11, (1) bolt 181435, (1) clamp 359985R1, (1) link 613271R1, (1) lock washer 114608, (1) nut 103028, (1) nut 219754

1шт.

Auger Platform

1шт.

8

26540D

RING, SNAP

RING, pitman brg lock

1шт.

9

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, pitman (opt w/608697R91, bearing)

1шт.

9

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

pitman (opt w/584148R91, bearing)

1шт.

10

559208R1

RETAINER

pitman brg (Note A)

1шт.

Canvas & Pea Bar Platform

1шт.

10

611561R1

RETAINER

pitman brg

1шт.

Auger Platform

1шт.

BOLT W/NUT, 1/4 x 1-1/4" type 2

3шт.

LK-WASHER, 1/4"

3шт.
