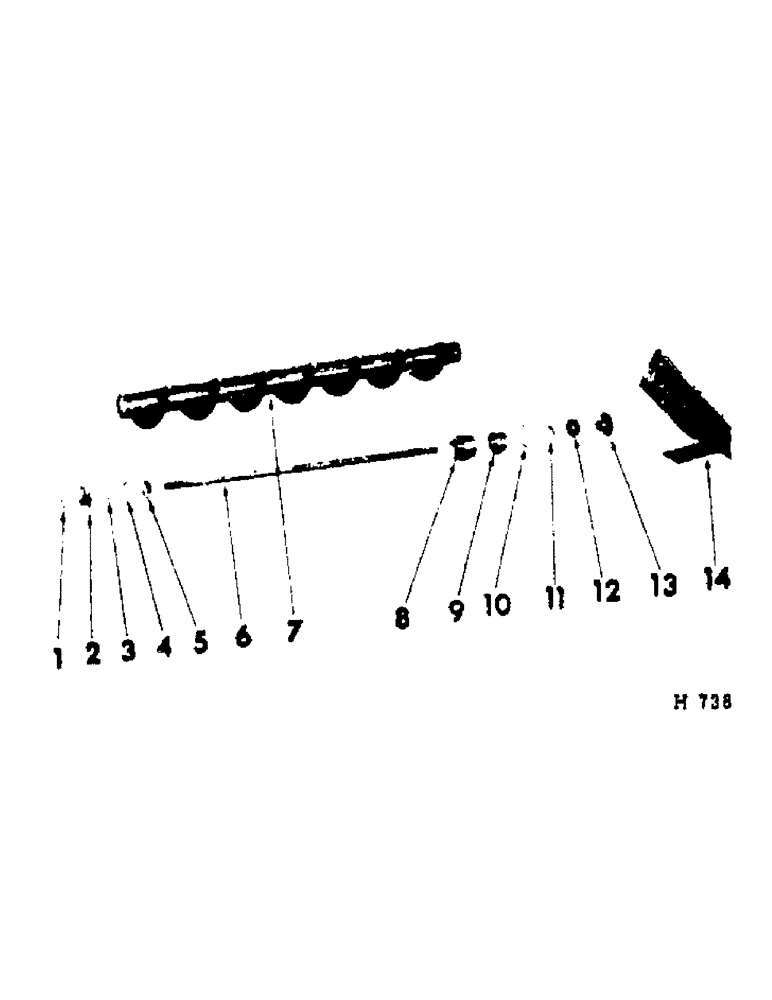

Запчасти Case IH 201 (A-088) - PLATFORM FRONT AUGER, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

218445

NUT,Jam, 1"-8, G5

1" jam LH shaft

1шт.

1

16683R1

NUT

1" jam RH shaft (LH thread)

1шт.

2

609660R1

SPIDER ASSY.

SPIDER, drive shaft LH

1шт.

2

609661R1

SPIDER ASSY.

SPIDER, drive shaft RH

1шт.

609680R1

SCREW

self-locking

8шт.

LK-WASH, 3/8"

8шт.

3

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

4

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , inner brg 2.44", Int, #244

2шт.

5

600654R91

BEARING, drive shaft inner

2шт.

6

609651R1

SHAFT, auger drive LH

1шт.

6

609652R1

SHAFT

auger drive RH (LH thread)

1шт.

7

609664R92

AUGER, 10 ft front LH

1шт.

7

609666R92

AUGER

12 ft front LH

1шт.

7

609668R92

AUGER

14 ft front LH

1шт.

7

609665R92

AUGER

10 ft front RH

1шт.

7

609667R92

AUGER

12 ft front RH

1шт.

7

609669R92

AUGER

14 ft front RH

1шт.

8

609662R1

HOUSING

auger outer brg

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FTG, 1/4"-NF

2шт.

609680R1

SCREW

self-locking

8шт.

LK-WASH, 3/8"

8шт.

9

609663R1

BEARING

outer brg housing

2шт.

10

609580R1

WASHER

outer brg stop

2шт.

11

295109R91

BALL BEARING

drive shaft outer

2шт.

12

609659R2

RETAINER

PAD, outer shaft brg

2шт.

13

609747R21

SPROCKET ASSY.

SPROCKET, front auger drive

2шт.

Q3915

KEY,Gib, 1/4" Sq x 1 5/8"

1/4 x 1-5/8" gib-hd

2шт.

14

609764R11

SHIELD, auger drive chain LH

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

LK-WASH, 5/16" cd-pltd

2шт.
