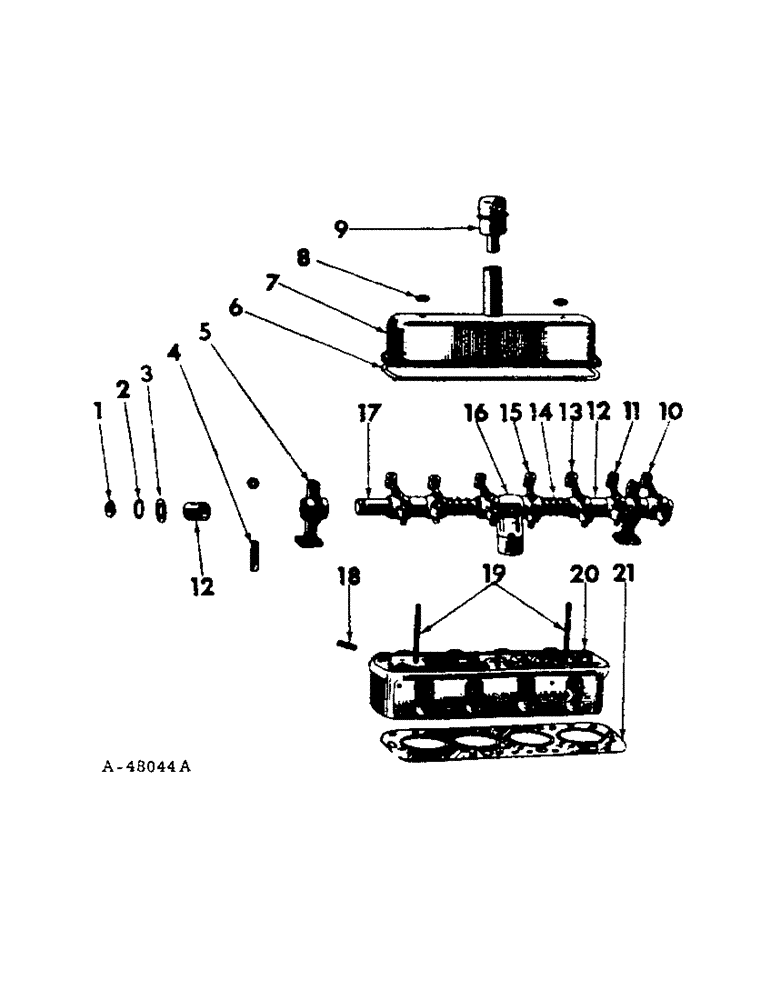

Запчасти Case IH 201 (A-009) - CYLINDER HEAD, VALVE COVER AND LEVERS (10) - ENGINE

1

172528

PLUG,Exp, 9/16"

9/16" dia expansion

2шт.

2

43375D

RING

valve lever shaft snap

2шт.

3

43374D

SPRING WASHER

valve lever shaft spg

2шт.

4

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

8шт.

133093R1

NUT,Hex, 3/8" - 24

lever adjusting screw

8шт.

5

42099DA

BRACKET

valve lever shaft end

2шт.

6

43378DD

GASKET

valve housing

1шт.

7

367673R91

HOUSING, valve lever cover

1шт.

NUT, 3/8"-NF

4шт.

LK-WASH, 3/8"

2шт.

8

62866D

WASHER,5/64" Thk x 13/32" ID

cover stud (opt w/357374R1)

2шт.

8

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, cover stud (opt w/62866D)

2шт.

9

367677R91

BREATHER

valve cover

1шт.

10

357292R92

LEVER

exhaust valve RH (includes 133093R1, nut & 16067DA, screw)

2шт.

11

357291R92

LEVER

intake valve LH (includes 133093R1, nut & 16067DA, screw)

2шт.

12

43373D

SPACER

lever shaft (opt w/365776R1)

1шт.

12

365776R1

SPACER, lever shaft (opt w/43373D)

1шт.

13

357292R92

LEVER

intake valve RH (includes 133093R1, nut & 16067DA, screw)

2шт.

14

24541D

SPRING

valve lever

2шт.

15

357291R92

LEVER

exhaust valve LH (includes 133093R1, nut & 16067DA, screw)

2шт.

16

6089DA

BRACKET

valve lever shaft center

1шт.

17

352521R11

SHAFT

lever (includes plugs, 172528)

1шт.

18

355373R1

STUD

valve lever shaft oiler 3/8"-NF nut

1шт.

19

373899R1

STUD

valve cover housing

2шт.

NUT, 3/8"-NF

4шт.

LK-WASH, 3/8"

4шт.

20

366299R13

HEAD ASSEMBLY, cyl (less valves) composed of: (8) guide 356583R2, (1) head (NSS), (1) plug 103868, (2) stud 373899R1, (1) stud 355373R1

1шт.

364789R1

BOLT

cylinder head

9шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

WASH, cylinder head bolt

9шт.

20

393508R91

HEAD ASEMBLY, cyl (w/valves) composed of: (1) head 366299R13, (16) key 42026D, (8) seal 386192R1, (8) seat 42040D, (8) seat 356588R1, (4) spring 368450R1, (4) spring 366304R1, (4) rotator 356841R91, (4) valve 366302R2, (4) valve 366303R4

1шт.

364789R1

BOLT

cylinder head

9шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

WASH, cylinder head bolt

9шт.

21

366300R2

GASKET

cyl head

1шт.
