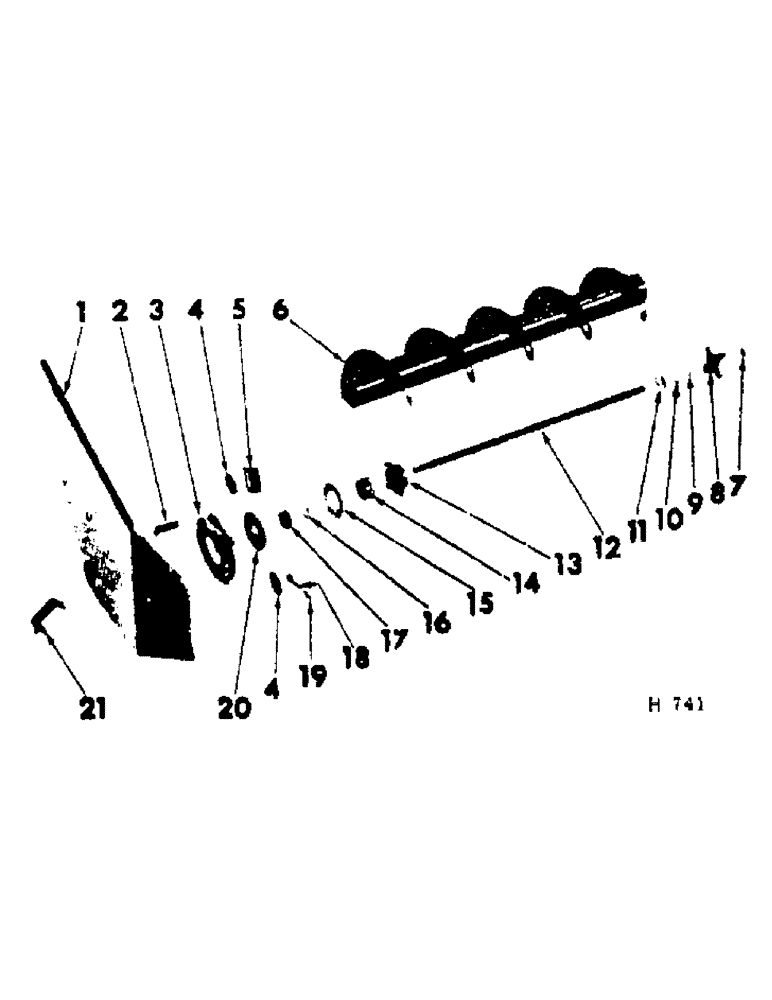

Запчасти Case IH 201 (A-088[A]) - PLATFORM REAR AUGER, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609766R2

SHIELD, auger drive RH

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd mach

2шт.

NUT, 3/8" cd-pltd

4шт.

134238R1

WASHER

WASH, 11/32 x 1 x 16 ga cd-pltd

2шт.

619856R1

WASHER

WASH, 13/32 x 1 x 16 ga cd-pltd

4шт.

LK-WASH, 5/16" cd-pltd

2шт.

LK-WASH, 3/8" cd-pltd

4шт.

2

609767R11

BRACE, RH shield upper support

1шт.

BOLT W/NUT, 5/16 x 5/8" cd-pltd mach

1шт.

NUT, 3/8" cd-pltd

1шт.

619856R1

WASHER

WASH, 13/32 x 1 x 16 ga cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

3

609741R1

PULLEY, rear auger driven RH

1шт.

BOLT W/NUT, 3/8 x 1-1/2" crg

4шт.

LK-WASH, 3/8"

4шт.

4

460529R91

BEARING

SPROCKET, chain support (opt w/460526R91, sprocket)

2шт.

4

460529R91

BEARING

SPROCKET, chain support (opt w/565442R91, sprocket)

2шт.

BOLT, 1/2 x 2" cd-pltd mach

2шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga cd-pltd

4шт.

LK-WASH, 1/2' cd-pltd

2шт.

5

609749R1

BRACKET, drive chain upper guide

1шт.

BOLT, 5/16 x 5/8" cd-pltd mach

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

1шт.

LK-WASH, 5/16" cd-pltd

2шт.

6

609685R92

AUGER, 10 ft rear LH

1шт.

6

609687R92

AUGER

12 ft rear LH

1шт.

6

609689R92

AUGER

14 ft rear LH

1шт.

6

609686R92

AUGER, 10 ft rear RH

1шт.

6

609688R92

AUGER

12 ft rear RH

1шт.

6

609690R92

AUGER

14 ft rear RH

1шт.

7

218445

NUT,Jam, 1"-8, G5

1" jam LH shaft

1шт.

7

16683R1

NUT

1" jam RH shaft (LH thread)

1шт.

8

609682R1

SPIDER ASSY.

SPIDER, drive shaft LH

1шт.

8

609683R1

SPIDER ASSY.

SPIDER, drive shaft RH shown

1шт.

609680R1

SCREW

self-locking

8шт.

LK-WASH, 3/8"

8шт.

9

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

10

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , inner brg 2.44", Int, #244

2шт.

11

609654R91

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING, drive shaft inner

2шт.

12

609651R1

SHAFT, auger drive LH

1шт.

12

609681R1

SHAFT, auger drive RH shown (LH thread)

1шт.

13

609684R1

HOUSING

outer brg

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

LUB-FTG, 1/4"-NF

2шт.

609680R1

SCREW

sel-locking

8шт.

LK-WASH, 3/8"

8шт.

14

609663R1

BEARING

outer brg housing

2шт.

15

609581R1

WASHER

outer brg stop

2шт.

16

295109R91

BALL BEARING

drive shaft outer

2шт.

17

609659R2

RETAINER

PAD, outer shaft brg

2шт.

18

609744R91

BOLT

tightener sprocket adjusting

2шт.

19

609746R1

NUT

adjusting bolt tightener

2шт.

20

609762R21

SPROCKET ASSY.

SPROCKET, 30T auger drive LH

1шт.

20

609742R1

SPROCKET ASSY.

SPROCKET, 30T auger drive RH shown

1шт.

Q3915

KEY,Gib, 1/4" Sq x 1 5/8"

1/4 x 1-5/8" gib-hd (LH)

1шт.

Q3922

KEY, 1/4 x 2-3/4" gib-hd (RH) Gib, 1/4" Sq x 2 3/4"

1шт.

21

592733R11

SUPPORT, right shield rear, Serial Range: (1965-1966)

1шт.

BOLT W/NUT, 7/16 x 1-1/4" cd-pltd mach

1шт.

607891R1

WASHER

WASH, 15/32 x 1 x 16 ga cd-pltd

4шт.

619856R1

WASHER

WASH, 13/32 x 1 x 16 ga cd-pltd

1шт.

NUT, 3/8" cd-pltd

1шт.

LK-WASH, 7/16" cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.
