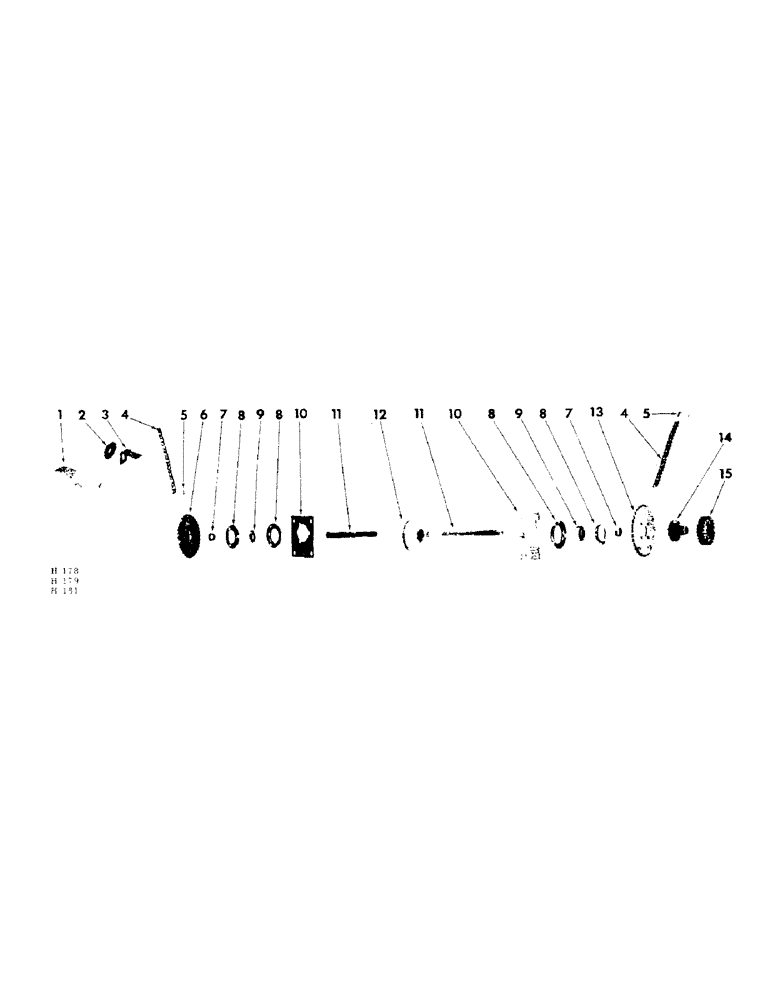

Запчасти Case IH 201 (A-087) - AUGER DRIVE COUNTERSHAFT (58) - ATTACHMENTS/HEADERS

1

609761R1

SHIELD, driver sprocket LH

1шт.

BOLT, 3/8 x 3/4" cd-pltd mach

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

LK-WASHER, 3/8" cd-pltd

3шт.

2

565442R91

SPROCKET

chain support LH (opt w/460529R91, sprocket)

1шт.

2

460529R91

BEARING

SPROCKET, chain support LH (opt w/565442R91, sprocket)

1шт.

BOLT W/NUT, 1/2 x 2" mach

1шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga

2шт.

LK-WASHER, 1/2"

1шт.

3

609763R1

ANGLE, chain sprocket support LH

1шт.

BOLT W/NUT, 3/8 x 7/8" mach

2шт.

LK-WASHER, 3/8"

2шт.

4

CHAIN, auger drive LH & RH (5/8" roller type) (for service order 1-1791D, 10 ft. length of chain, reduce to 165 links and add 1-1310D, connecting link)

1шт.

5

1310D

LINK

auger drive chain connecting

2шт.

6

609759R11

SPROCKET, 35T countershaft LH driven

1шт.

Q3928

KEY,Gib, 5/16" Sq x 1 1/4"

5/16 x 1-1/4" gib-hd

1шт.

7

COLLAR W/SCREW, brg locking (for SKF-collar-LC-100 only - order 1-455965R91 bearing & 1-455102R11 collar)

2шт.

7

455102R11

COLLAR

W/SCREW, brg locking (Fafnir, New Departure & SKF - for use w/455965R91, bearing)

2шт.

7

607417R11

COLLAR

W/SCREW, brg locking (Fischer - for use w/607416R91 bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hdls cup-pt set

2шт.

8

462360R1

FLANGED BEARING

TTE, countershaft brg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

6шт.

LK-WASHER, 5/16"

6шт.

9

BEARING, countershaft (for SKF - bearing - 1706205100 only - order 1-455965R91, bearing & 1-455102R11 collar)

2шт.

9

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

countershaft (Fafnir, New Departure & SKF - for use w/455102R11, collar)

2шт.

9

607416R91

BEARING

countershaft (Fischer - for use w/607417R11, collar)

2шт.

10

609753R1

SUPPORT, countershaft brg

2шт.

BOLT, 3/8 x 3/4" mach

2шт.

BOLT W/NUT, 3/8 x 3/4" crg (3-RH, 1-LH)

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg (2-LH)

1шт.

LK-WASHER, 3/8" cd-pltd

2шт.

LK-WASHER, 3/8"

6шт.

11

609754R1

COUNTERSHAFT, 10 ft. auger drive

1шт.

11

609755R1

COUNTERSHAFT, 12 ft. auger drive

1шт.

11

609756R1

COUNTERSHAFT, 14 ft. auger drive

1шт.

C-PIN, 3/16 x 1-1/2"

2шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

2шт.

12

609757R1

BEARING,1.062" ID x 3.66" OD x 2"

countershaft center wooden

1шт.

609758R91

LUB-FITTING, brg

1шт.

13

609750R1

SPROCKET, 35T RH drive

1шт.

BOLT W/NUT, 5/16 x 2-1/4" mach

4шт.

LK-WASHER, 5/16"

4шт.

14

609752R1

HUB, pinion gear RH

1шт.

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4" gib-hd

1шт.

15

609751R1

GEAR WHEEL

GEAR, 24T reel drive pinion RH

1шт.

BOLT W/NUT, 5/16 x 2-1/4" mach

4шт.

LK-WASHER, 5/16"

4шт.
