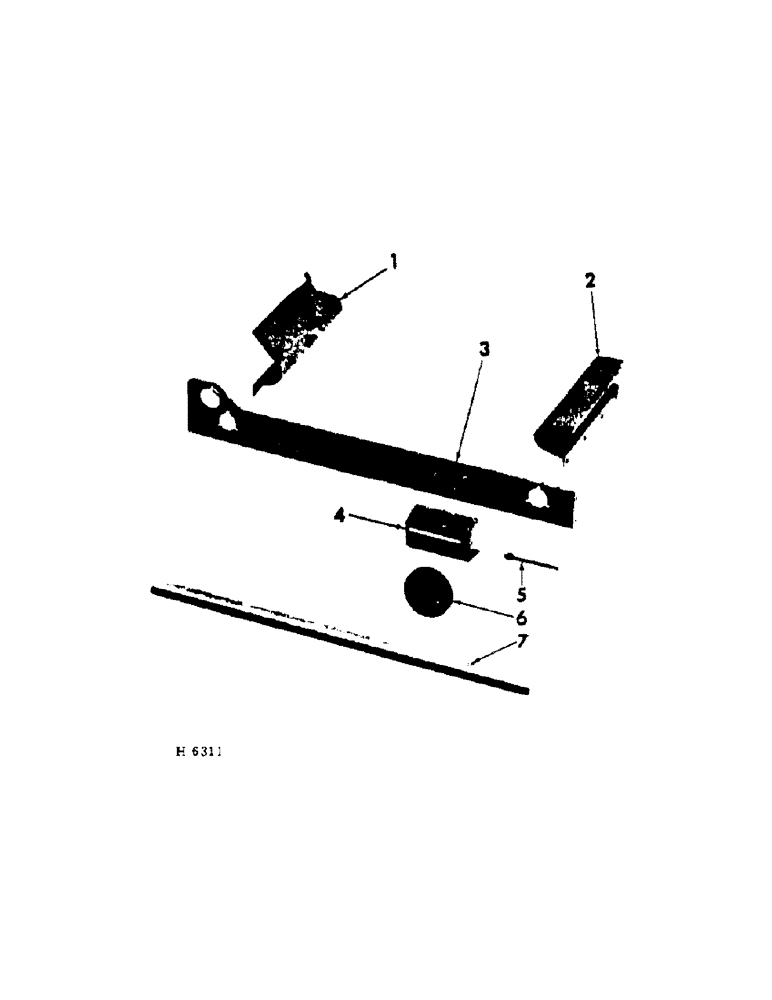

Запчасти Case IH 201 (A-086) - PLATFORM ROLLER DRIVE SHIELDS, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

613147R11

SHIELD, drive roller LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

LK-WASHER, 5/16"

8шт.

2

612143R11

SHIELD, drive roller RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

LK-WASHER, 5/16"

8шт.

3

613170R91

CHANNEL, 10 ft. roller drive

1шт.

3

613150R91

CHANNEL, 12, 14 & 16 ft. roller drive

1шт.

BOLT W/NUT, 3/8 x 3/4" mach

3шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

BOLT W/NUT, 3/8 x 1-1/4" mach

2шт.

LK-WASHER, 3/8"

7шт.

4

612148R11

BRACKET, drive roller belt tightener

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

LK-WASHER, 5/16"

4шт.

5

612074R1

EYEBOLT, roller driven belt tightener

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

NUT, 3/8"

2шт.

6

559087R92

PULLEY

driven belt tightener

1шт.

BOLT W/NUT, 1/2 x 1-1/2" mach

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

3шт.

LK-WASHER, 1/2"

1шт.

7

613324R1

SHIELD, 10 ft drive belt

1шт.

7

613319R1

SHIELD, 12, 14 & 16 ft drive belt

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

4шт.

LK-WASHER, 5/16"

4шт.
