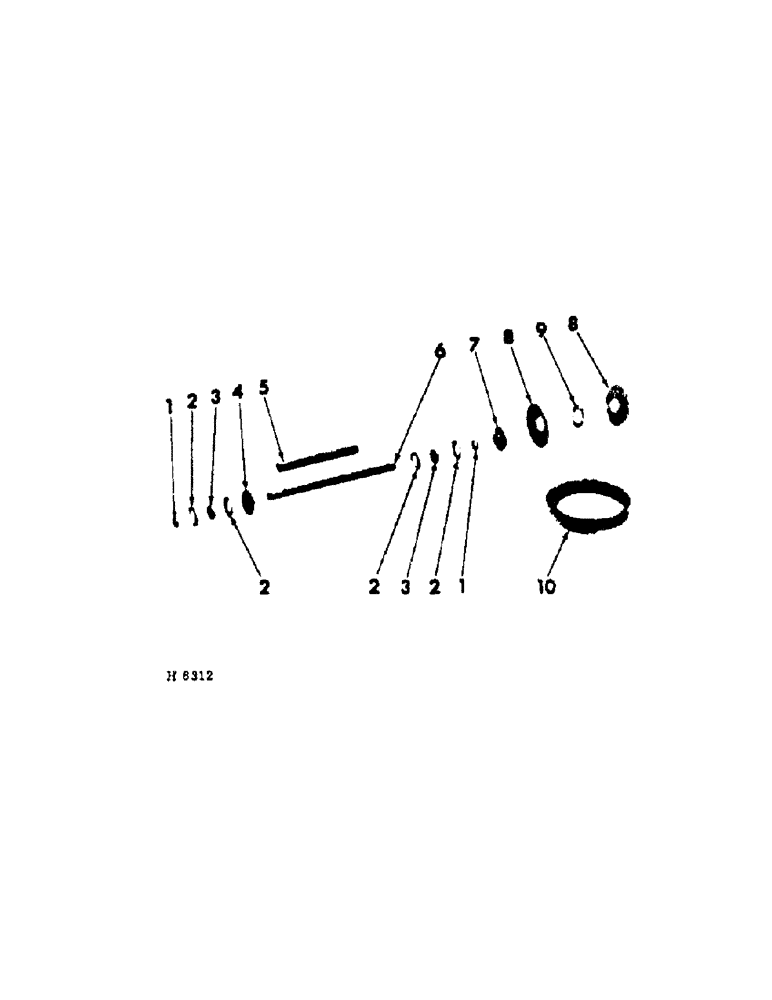

Запчасти Case IH 201 (A-086[A]) - PLATFORM ROLLER DRIVE PLATFORM, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

COLLAR W/SCREW, brg locking (for SKF-collar LC-100 only - order 1-455965R91, bearing & 1-455102R11, collar)

2шт.

1

455102R11

COLLAR

W/SCREW, brg locking (Fafnir, New Departure & SKF - for use with 455965R91, bearing)

2шт.

1

607417R11

COLLAR

W/SCREW, brg locking (Fischer - for use with 607416R91, bearing)

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

2

612031R1

FLANGED BEARING

TTE, brg

4шт.

BOLT W/NUT, 5/16 x 7/8" mach

4шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

2шт.

LK-WASHER, 5/16"

4шт.

3

BEARING, countershaft (for SKF bearing - 1706205100 only - order 1-455965R91, bearing & 1-455102R11, collar)

2шт.

3

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

countershaft (Fafnir, New Departure & SKF - for use with 455102R11, collar)

2шт.

3

607416R91

BEARING

countershaft (Fischer - for use with 607417R11, collar)

2шт.

4

612029R11

SPROCKET, 17T driven

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

5

613351R1

SHIELD, countershaft

1шт.

6

612068R2

COUNTERSHAFT, roller drive

1шт.

7

611750R2

HUB, roller drive countershaft

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 1-1/2" gib-hd

1шт.

8

592730R1

PULLEY

roller

2шт.

BOLT W/NUT, 5/16 x 1-1/4" mach

4шт.

LK-WASHER, 5/16"

4шт.

9

21659K

RING

SPACER, drive roller pulley

5шт.

10

565565R1

V-BELT,0.63" W

10 ft. roller drive 0.63" W

1шт.

10

570386R1

V-BELT,0.63" W

12, 14 & 16 ft. roller drive 0.63" W

1шт.
