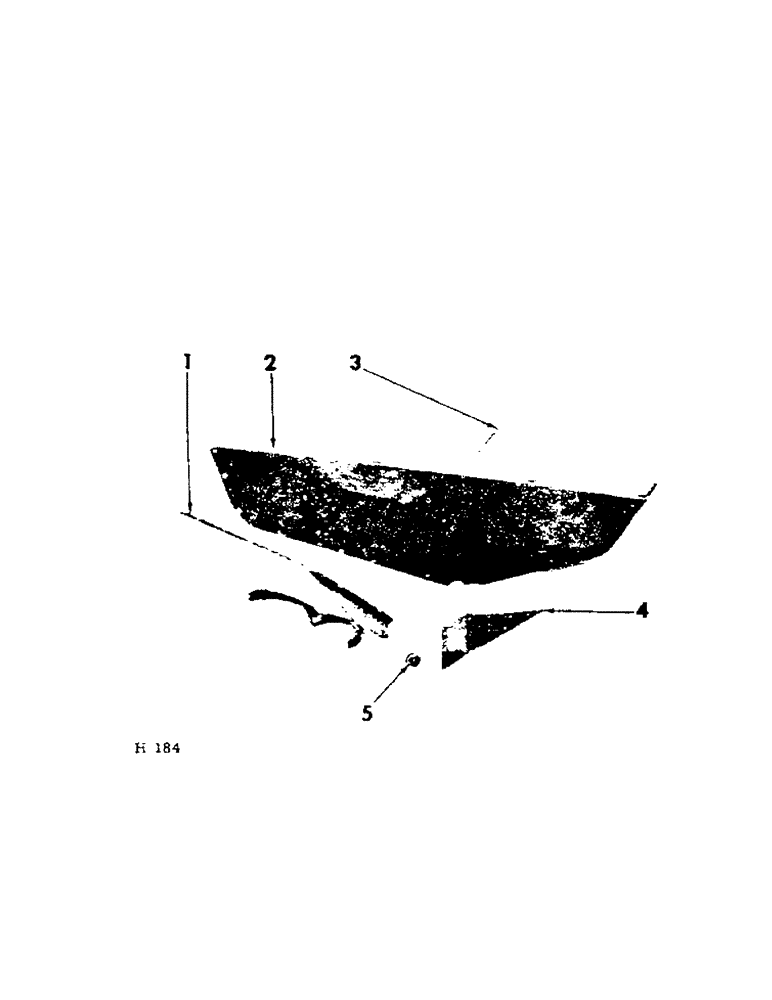

Запчасти Case IH 201 (A-085) - PLATFORM DIVIDER, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609627R92

DEFLECTOR, platform side LH shown

1шт.

1

609628R92

DEFLECTOR, platform side RH

1шт.

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd mach

4шт.

BOLT, 5/16 x 5/8" cd-pltd mach

6шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

6шт.

SCREW, 1/4 - 20 x 3/4" pan-hd sltd

2шт.

LK-WASHER, 5/16" cd-pltd

16шт.

2

609619R21

SIDE, platform LH shown

1шт.

2

609620R21

SIDE, platform RH

1шт.

BOLT, 5/16 x 5/8" cd-pltd mach

12шт.

NUT, 5/16" cd-pltd

10шт.

LK-WASHER, 5/16" cd-pltd

12шт.

3

609624R1

BRACE, platform side LH

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

1шт.

LK-WASHER, 5/16" cd-pltd

1шт.

LK-WASHER, 3/8" cd-pltd

1шт.

4

609625R1

SOLE, platform side LH shown

1шт.

4

609626R1

SOLE, platform side RH

1шт.

SA2344

SPACER,3/8" Pipe x 7/16"

sole pipe

2шт.

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow (LH)

1шт.

BOLT W/NUT, 3/8 x 1-1/4" no. 3 cd-pltd plow (RH)

1шт.

BOLT W/NUT, 7/16 x 1" cd-pltd crg (2-RH, 3-LH)

1шт.

BOLT W/NUT, 7/16 x 1-1/2" cd-pltd crg

2шт.

LK-WASHER, 3/8" cd-pltd

2шт.

LK-WASHER, 7/16" cd-pltd (3-RH, 4-LH)

1шт.

5

SA2344

SPACER,3/8" Pipe x 7/16"

platform sole

2шт.

BOLT W/NUT, 7/16 x 1-1/2" cd-pltd crg

2шт.

LK-WASHER, 7/16" cd-pltd

2шт.
