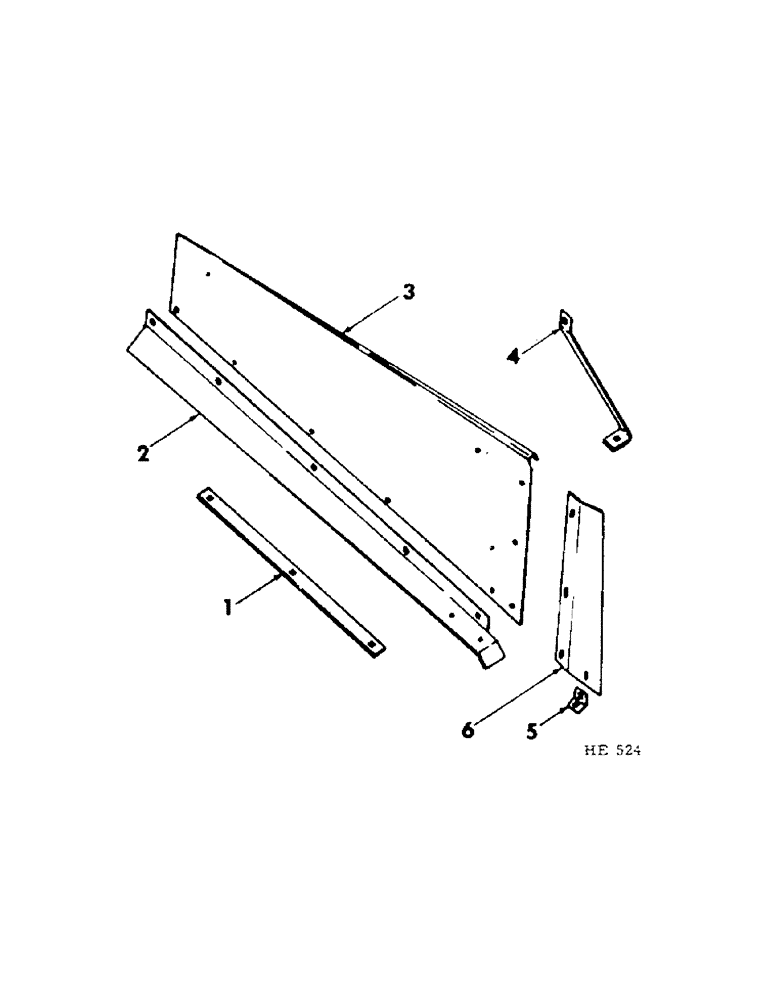

Запчасти Case IH 201 (A-085[A]) - PLATFORM DIVIDER, GREEN PEA BAR PLATFORM, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

612357R1

SPACER, deflector divider

2шт.

2

612360R1

DIVIDER, deflector LH shown

1шт.

2

612361R1

DIVIDER, deflector RH

1шт.

BOLT W/NUT, 5/16 x 7/8" cd-pltd crg (RH)

1шт.

BOLT, 5/16 x 7/8" cd-pltd mach (3-LH)

1шт.

Q398

WASHER

11/32 x 7/8 x 16 ga (3-LH)

1шт.

LK-WASHER, 5/16" cd-pltd

6шт.

LK-WASHER, 5/16" cd-pltd

6шт.

3

592596R1

SIDE, header frame LH shown

1шт.

3

592597R1

SIDE, header frame RH

1шт.

BOLT W/NUT, 1/4 x 3/4" mach

2шт.

BOLT W/NUT, 5/16 x 3/4" crg (2-LH, 5-RH)

1шт.

BOLT W/NUT, 5/16 x 3/4" mach (3-LH)

1шт.

106261

WASHER,1/4"

5/16 x 3/4 x 16 ga

2шт.

615031R1

WASHER

3/8 x 7/8 x 16 ga (3-LH)

1шт.

LK-WASHER, 1/4"

2шт.

LK-WASHER, 5/16"

8шт.

4

612355R1

BRACE, divider support

2шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

2шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

WASHER, 11/32 sq-hole x 1-1/4 x 16 ga

2шт.

LK-WASHER, 5/16" cd-pltd

2шт.

LK-WASHER, 3/8" cd-pltd

2шт.

5

592593R1

BRACKET, vine shield attaching

2шт.

BOLT W/NUT, 1/4 x 3/4" crg

2шт.

106261

WASHER,1/4"

5/16 x 3/4 x 16 ga

2шт.

6

592594R1

SHIELD, vine LH shown

1шт.

6

592595R1

SHIELD, vine RH

1шт.

BOLT W/NUT, 1/4 x 3/4" crg

8шт.

106261

WASHER,1/4"

5/16 x 3/4 x 16 ga

8шт.

LK-WASHER, 1/4"

8шт.
