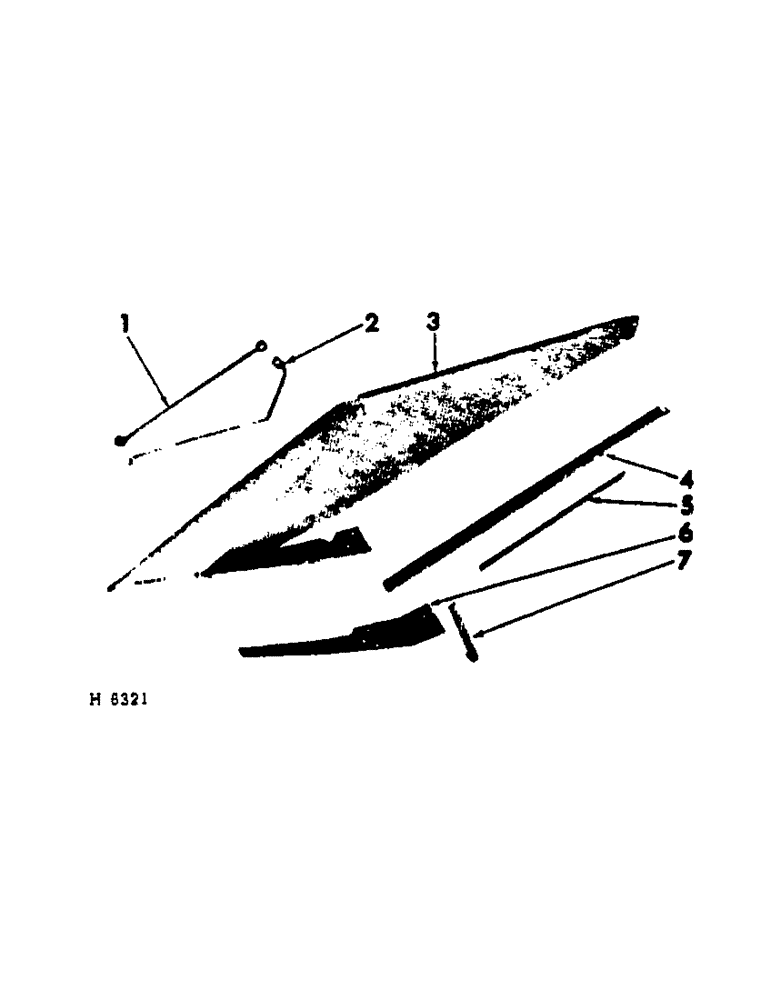

Запчасти Case IH 201 (A-084) - PLATFORM DIVIDER LEFT HAND, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

612352R1

BRACE, divider shoe LH

1шт.

BOLT W/NUT, 7/16 x 1-1/2" crg

1шт.

LK-WASH, 7/16"

1шт.

2

612353R1

ROD, divider deflector

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

3

612362R12

DIVIDER, LH

1шт.

BOLT, 5/16 x 7/8" cd-pltd mach

3шт.

Q398

WASHER

WASH, 11/32 x 7/8 x 16 ga

3шт.

LK-WASH, 5/16" cd-pltd

3шт.

4

612360R1

DIVIDER, deflector LH

1шт.

5

612357R1

SPACER, divider deflector

1шт.

6

613156R11

SOLE, divider shoe LH (regular)

1шт.

6

614753R11

SOLE, divider shoe LH (special)

1шт.

BOLT W/NUT, 3/8 x 1-1/8" cd-pltd crg

1шт.

BOLT W/NUT, 3/8 x 1-1/2" no. 3 plow

3шт.

LK-WASH, 3/8" cd-pltd

4шт.

7

612355R1

BRACE, divider support

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

1шт.

LK-WASH, 5/16" cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

Q1577

WASH, 11/32 sq-hole x 1-1/4 x 16 ga

1шт.
