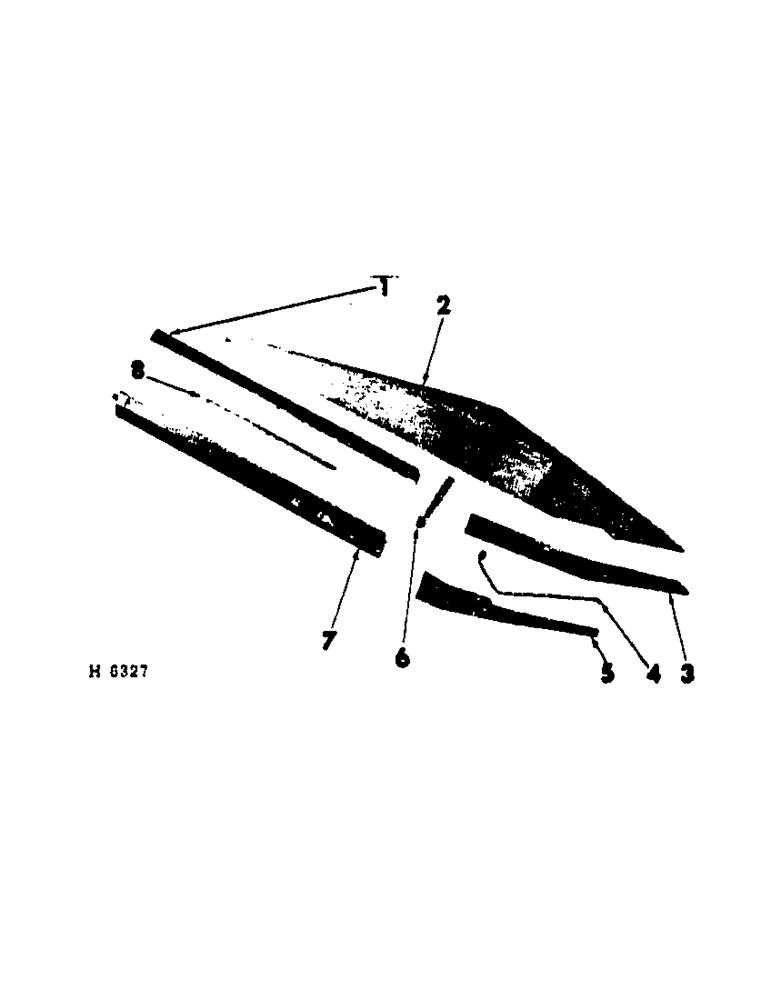

Запчасти Case IH 201 (A-084[A]) - PLATFORM DIVIDER RIGHT HAND, CANVAS PLATFORM, NOT AUGER OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

612361R1

DIVIDER, deflector RH

1шт.

2

612363R12

DIVIDER, RH

1шт.

BOLT W/NUT, 5/16 x 7/8" cd-pltd crg

3шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

1шт.

LK-WASH, 5/16" cd-pltd

3шт.

LK-WASH, 3/8" cd-pltd

1шт.

3

612359R1

SHOE, divider RH

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

LK-WASH, 5/16"

4шт.

4

612353R1

ROD, divider deflector

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

5

613157R11

SOLE, divider shoe RH

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd crg

1шт.

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd no. 3 plow

3шт.

Q1597

WASHER

WASH, 13/32 x 3/4 x 16 ga

1шт.

LK-WASH, 3/8" cd-pltd

4шт.

6

612355R1

BRACE, divider support

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

1шт.

LK-WASH, 5/16" cd-pltd

1шт.

LK-WASH, 3/8" cd-pltd

1шт.

Q1577

WASH, 11/32 sq-hole x 1-1/4 x 16 ga

1шт.

7

162170R11

CHANNEL, reel slide support

1шт.

BOLT W/NUT, 7/16 x 7/8" crg

4шт.

BOLT W/NUT, 7/16 x 1" crg

4шт.

BOLT W/NUT, 7/16 x 1-1/4" crg

3шт.

LK-WASH, 7/16"

11шт.

8

612357R1

SPACER, divider deflector

1шт.
