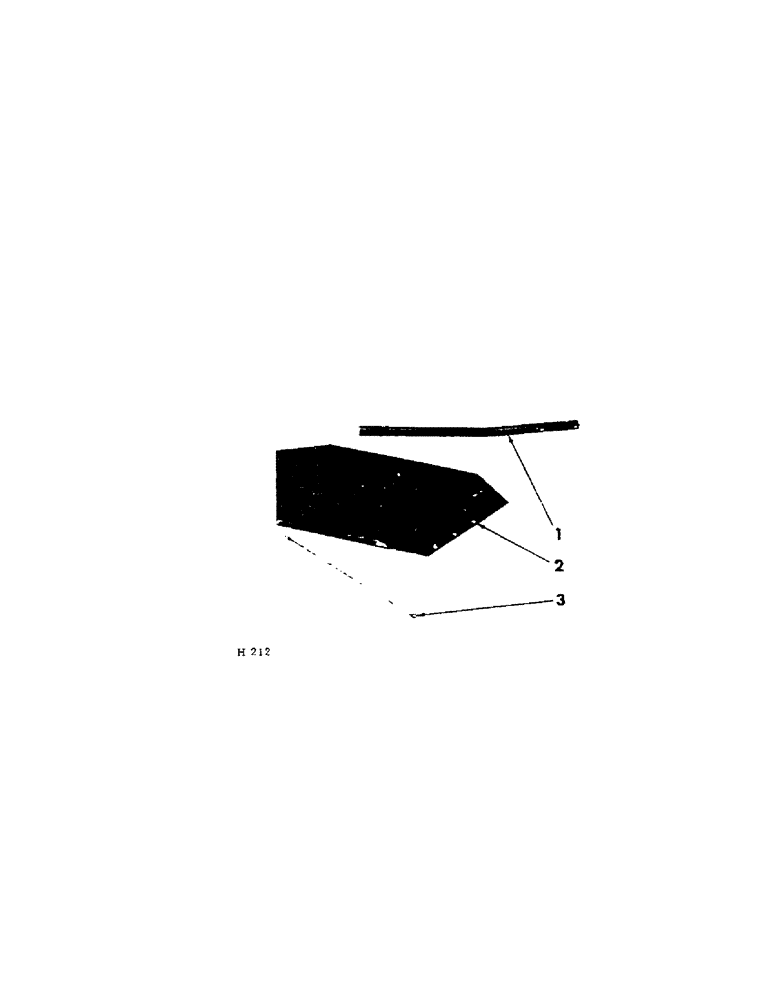

Запчасти Case IH 201 (A-083) - WINDROW DEFLECTOR, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609806R1

ANGLE, deflector reinforcement LH shown

1шт.

1

609807R1

ANGLE, deflector reinforcement RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

LK-WASHER, 5/16"

8шт.

2

609804R1

DEFLECTOR, windrow LH

1шт.

2

609805R1

DEFLECTOR, windrow RH shown

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

4шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

2шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASHER, 5/16"

4шт.

LK-WASHER, 5/16" cd-pltd

2шт.

LK-WASHER, 3/8"

2шт.

3

609808R1

BRACE, deflector

2шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd mach

2шт.

BOLT W/NUT, 5/16 x 7/8" cd-pltd mach

2шт.

LK-WASHER, 5/16" cd-pltd

4шт.
