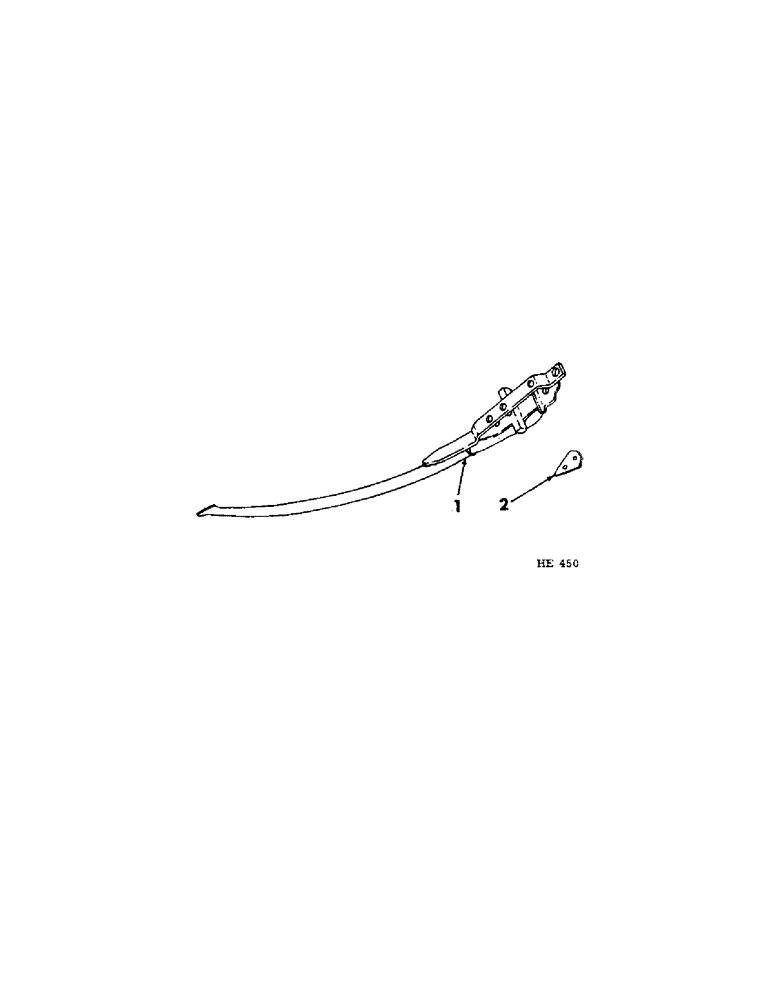

Запчасти Case IH 201 (A-083[B]) - OUTER DIVIDER, GREEN PEA CUTTER BAR, NOT CANVAS OR AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

592590R92

DIVIDER, outer (includes 592579R1, plate & 104156 & 104157, rivets)

2шт.

592640R1

LK-NUT, 7/16" special

2шт.

231-1448

NUT,1/2"-13, GB

LK-NUT, 1/2" special

2шт.

BOLT, 7/16 x 2-1/4" no. 3 plow

2шт.

BOLT, 1/2 x 1" mach

2шт.

2

592579R1

PLATE, divider smooth ledger

2шт.

RIVET, 3/16 x 1-1/8" - 90deg. csk-hd

2шт.

RIVET, 3/16 x 1-1/4" - 90deg. csk-hd

2шт.

592584R91

GUARD, lifter (composed of parts listed below, unless otherwise otherwise noted)

13шт.

592640R1

LK-NUT, 7/16" special

13шт.

Not part of lifter guard

1шт.

BOLT, 7/16 x 1-3/4" no. 3 plow

1шт.

Not part of lifter guard

1шт.

BOLT, 7/16 x 2-1/4" crg

11шт.

Not part of lifter guard

1шт.

BOLT, 7/16 x 2-3/4" crg

1шт.

Not part of lifter guard

1шт.
