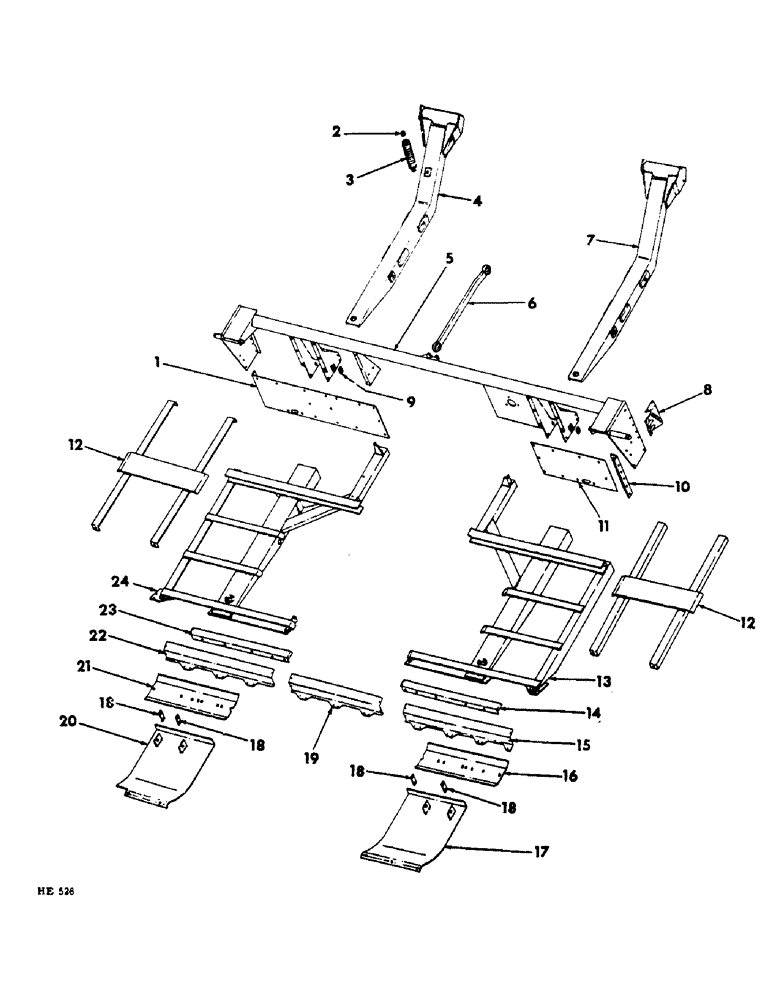

Запчасти Case IH 201 (A-080) - PLATFORM, SUPPORT PIPE AND LIFT ARM, CANVAS PLATFORM, PEABAR UNLESS SPECIFIED, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

612183R1

BACKSHEET, 10 ft platform RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

8шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 3/8 x 5/8" crg

3шт.

LK-WASHER, 5/16"

13шт.

LK-WASHER, 3/8"

3шт.

1

612185R1

BACKSHEET, 12 ft platform RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

9шт.

BOLT W/NUT, 5/16 x 3/4" crg

8шт.

BOLT W/NUT, 3/8 x 5/8" crg

3шт.

LK-WASHER, 5/16"

17шт.

LK-WASHER, 3/8"

3шт.

1

612187R1

BACKSHEET, 14 ft platform RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

13шт.

BOLT W/NUT, 5/16 x 3/4" crg

6шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

BOLT W/NUT, 3/8 x 5/8" crg

3шт.

LK-WASHER, 5/16"

20шт.

LK-WASHER, 3/8"

3шт.

1

612189R1

BACKSHEET, 16 ft platform RH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

14шт.

BOLT W/NUT, 5/16 x 3/4" crg

8шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

BOLT W/NUT, 3/8 x 5/8" crg

3шт.

LK-WASHER, 5/16"

23шт.

LK-WASHER, 3/8"

3шт.

2

PO2315

PLUG

10 & 12 ft leveling spg

1шт.

612235R1

BOLT,Hex, 1/2" - 13 x 7"

W/NUT, 1/2 x 7" cd-pltd mach

1шт.

PO10535

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

2

600030R1

PLUG, 14 & 16 ft levelling spg

1шт.

612234R1

BOLT W/NUT, 1/2 x 5" cd-pltd mach

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

3

PO181

SPRING, 10 & 12 ft platform levelling

1шт.

3

600031R1

SPRING, 14 & 16 ft platform levelling

1шт.

4

612256R93

CHANNEL, platform lift RH

1шт.

18833R1

BOLT,Hex, 5/8" - 11 x 7"

5/8 x 7" cd-pltd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" cd-pltd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

612251R92

PIPE, 10 ft support

1шт.

5

612252R92

PIPE, 12 ft support

1шт.

5

612253R92

PIPE, 14 ft support

1шт.

5

612254R92

PIPE, 16 ft support

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

612086R11

LINK, upper

1шт.

BOLT W/NUT, 3/4 x 3" mach

1шт.

BOLT W/NUT, 3/4 x 3-1/4" mach

1шт.

LK-WASHER, 3/4"

2шт.

7

612255R93

CHANNEL, platform lift LH

1шт.

18833R1

BOLT,Hex, 5/8" - 11 x 7"

5/8 x 7" cd-pltd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" cd-pltd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

612172R11

BRACKET, reel drive belt tightener

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

2шт.

BOLT W/NUT, 3/8 x 1" no. 3 plow

2шт.

LK-WASHER, 5/16"

2шт.

LK-WASHER, 3/8"

2шт.

9

613200R1

WASHER, float lockout

4шт.

10

612215R1

ANGLE, gusset reinforcement LH

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

BOLT W/NUT, 7/16 x 1" crg

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

LK-WASHER, 3/8"

1шт.

LK-WASHER, 7/16"

1шт.

11

613134R1

BACKSHEET, 10 ft platform LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

3шт.

BOLT W/NUT, 5/16 x 3/4" crg

3шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASHER, 5/16"

7шт.

LK-WASHER, 3/8"

2шт.

11

613135R1

BACKSHEET, 12 ft platform LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

4шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASHER, 5/16"

9шт.

LK-WASHER, 3/8"

2шт.

11

613136R1

BACKSHEET, 14 FT PLATFORM LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

6шт.

BOLT W/NUT, 5/16 x 3/4" crg

3шт.

BOLT W/NUT, 5/16 x 7/8" crg

2шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASHER, 5/16"

11шт.

LK-WASHER, 3/8"

2шт.

11

613137R1

BACKSHEET, 16 ft platform LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

6шт.

BOLT W/NUT, 5/16 x 3/4" crg

4шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

1шт.

LK-WASHER, 5/16"

11шт.

LK-WASHER, 3/8"

2шт.

12

612240R92

GUIDE, 12 ft canvas center

2шт.

12

613484R92

GUIDE, 14 ft canvas center

2шт.

12

613485R92

GUIDE, 16 ft canvas center

2шт.

BOLT, 5/16 x 3/4" mach

4шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

8шт.

LK-WASHER, 5/16"

4шт.

13

612243R92

PLATFORM, 10 ft pea bar LH, Serial Range: (1961-1965)

1шт.

13

594775R91

PLATFORM, 10 ft pea bar LH (1966)

1шт.

13

612243R92

PLATFORM, 10 ft canvas LH

1шт.

13

612245R92

PLATFORM, 12 ft canvas LH

1шт.

13

612247R92

PLATFORM, 14 ft canvas LH

1шт.

13

612249R92

PLATFORM, 16 ft canvas LH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

10шт.

BOLT W/NUT, 7/16 x 7/8" crg

2шт.

BOLT W/NUT, 7/16 x 1-1/4" crg

1шт.

90999R1

BOLT, 3/4 x 2-1/2" cd-pltd mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

LK-WASHER, 3/8"

10шт.

LK-WASHER, 7/16"

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

14

612200R1

GUIDE, 10 ft canvas guide front LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

2шт.

BOLT, 5/16 x 5/8" mach

2шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

6шт.

14

612202R1

GUIDE, 12 ft canvas guide front LH

1шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

2шт.

BOLT, 5/16 x 5/8" mach

1шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

6шт.

14

612204R1

GUIDE, 14 ft canvas guide front LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

2шт.

BOLT, 5/16 x 5/8" mach

2шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

6шт.

14

612206R1

GUIDE, 16 ft canvas guide front LH

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

2шт.

BOLT, 5/16 x 5/8" mach

3шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

7шт.

15

613900R1

SHIELD, 10 ft apron LH, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

15

614707R1

SHIELD, 10 ft apron LH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

15

613902R1

SHIELD, 12 ft apron LH, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

15

614709R1

SHIELD, 12 ft apron LH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

15

613904R1

SHIELD, 14 ft apron LH, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

15

614711R1

SHIELD, 14 ft apron LH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

15

613928R1

SHIELD, 16 ft apron LH, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

15

614713R1

SHIELD, 16 ft apron LH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

113970

SCREW, 1/4 x 7/16" slt-rd-hd

1шт.

NUT, 1/4"

1шт.

LK-WASHER, 1/4"

1шт.

16

613924R2

SOLE, skid LH

1шт.

Not part of pea bar platform

1шт.

BOLT W/NUT, 3/8 x 1" no. 3 plow

2шт.

BOLT W/NUT, 3/8 x 1-1/8" no. 3 plow

4шт.

BOLT, 7/16 x 3/4" mach

2шт.

LK-WASHER, 3/8"

6шт.

LK-WASHER, 7/16"

2шт.

17

594778R11

SOLE, platform skid LH (1966) (10 ft pea bar only)

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4" cd-pltd

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16" cd-pltd

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

18

594781R1

BAR, skid sole adjusting (1966) (10 ft pea bar only)

4шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4" cd-pltd crg

4шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4" cd-pltd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

19

613906R1

SHIELD, apron center, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

19

614715R1

SHIELD, apron center, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

113970

SCREW, 1/4 x 7/16" slt-rd-hd

2шт.

109084

NUT,1/4"-20, G5

2шт.

LK-WASHER, 1/4"

2шт.

20

594779R11

SOLE, platform skid RH (1966) (10 ft pea bar only)

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4" cd-pltd

3шт.

271501

SOCKET

NUT, 7/16" cd-pltd

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

21

613925R2

SOLE

skid RH

1шт.

Not part of pea bar platform

1шт.

BOLT W/NUT, 3/8 x 1" no. 3 plow

2шт.

BOLT W/NUT, 3/8 x 1-1/8" no. 3 plow

4шт.

BOLT, 7/16 x 3/4" mach

2шт.

LK-WASHER, 3/8"

6шт.

LK-WASHER, 7/16"

2шт.

22

613901R1

SHIELD, 10 ft apron RH, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

22

614708R1

SHIELD, 10 ft apron RH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

22

613903R1

SHIELD, 12 ft apron RH, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

22

614710R1

SHIELD, 12 ft apron RH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

22

613905R1

SHIELD, 14 ft apron RH, Serial Range: (1961-1966)

1шт.

Not part of pea bar platform

1шт.

22

614712R1

SHIELD, 14 ft apron RH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

22

613929R1

SHIELD, 16 ft apron RH, Serial Range: (1961-1962)

1шт.

Not part of pea bar platform

1шт.

22

614714R1

SHIELD, 16 ft apron RH, Serial Range: (1962-1966)

1шт.

Not part of pea bar platform

1шт.

113970

SCREW, 1/4 x 7/16" slt-rd-hd

1шт.

NUT, 1/4"

1шт.

LK-WASHER, 1/4"

1шт.

23

612201R1

GUIDE, 10 ft canvas guide front RH

1шт.

BOLT, 5/16 x 5/8" mach

4шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

6шт.

23

612203R1

GUIDE, 12 ft canvas guide front RH

1шт.

BOLT, 5/16 x 5/8" mach

3шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

5шт.

23

612205R1

GUIDE, 14 ft canvas guide front RH

1шт.

BOLT, 5/16 x 5/8" mach

6шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

8шт.

23

612207R1

GUIDE, 16 ft canvas guide front RH

1шт.

BOLT, 5/16 x 5/8" mach

9шт.

BOLT, 5/16 x 3/4" mach

2шт.

LK-WASHER, 5/16"

11шт.

24

612244R92

PLATFORM, 10 ft pea bar RH, Serial Range: (1961-1965)

1шт.

24

594776R91

PLATFORM, 10 ft pea bar RH (1966)

1шт.

24

612244R92

PLATFORM, 10 ft canvas RH

1шт.

24

612246R92

PLATFORM, 12 ft canvas RH

1шт.

24

612248R92

PLATFORM, 14 ft canvas RH

1шт.

24

612250R92

PLATFORM, 16 ft canvas RH

1шт.

BOLT W/NUT, 3/8 x 3/4" crg

10шт.

BOLT W/NUT, 7/16 x 7/8" crg

2шт.

BOLT W/NUT, 7/16 x 1-1/4" crg

1шт.

590999R1

BOLT, 3/4 x 2-1/2" cd-pltd mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

LK-WASHER, 3/8"

10шт.

LK-WASHER, 7/16"

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.
