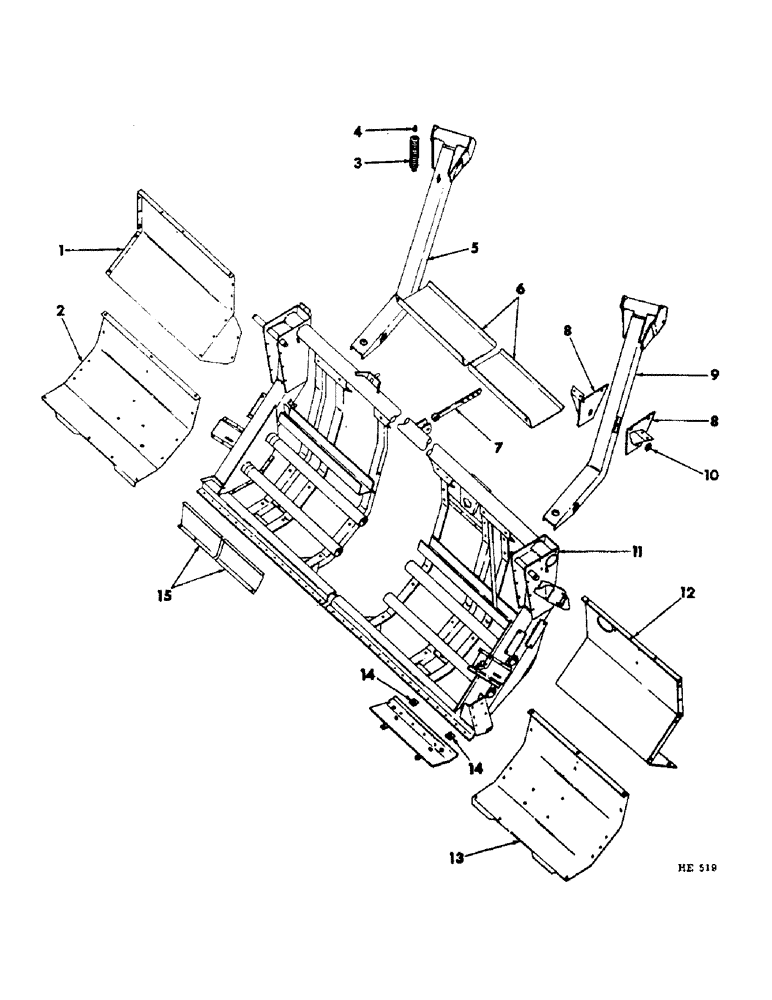

Запчасти Case IH 201 (A-078) - PLATFORM, LIFT ARMS AND SOLE, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609604R11

SIDE, RH back upper 10 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

5шт.

BOLT, 5/16 x 5/8" mach

5шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASHER, 5/16"

15шт.

LK-WASHER, 3/8"

2шт.

1

609606R11

SIDE, RH back upper 12 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

7шт.

BOLT, 5/16 x 5/8" mach

5шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASHER, 5/16"

17шт.

LK-WASHER, 3/8"

2шт.

1

609608R11

SIDE, RH back upper 14 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

8шт.

BOLT, 5/16 x 5/8" mach

5шт.

BOLT W/NUT, 5/16 x 3/4" crg

2шт.

LK-WASHER, 5/16"

18шт.

LK-WASHER, 3/8"

2шт.

2

609611R1

SECTION, RH bottom 10 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

10шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 7/16 x 3/4" crg

1шт.

LK-WASHER, 5/16"

15шт.

LK-WASHER, 7/16"

1шт.

2

609613R1

SECTION, RH bottom 12 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

12шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 7/16 x 3/4" crg

1шт.

LK-WASHER, 5/16"

17шт.

LK-WASHER, 7/16"

1шт.

2

609615R1

SECTION, RH bottom 14 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

13шт.

BOLT W/NUT, 5/16 X 3/4" CRG

5шт.

BOLT W/NUT, 7/16 x 3/4" crg

1шт.

LK-WASHER, 5/16"

18шт.

LK-WASHER, 7/16"

1шт.

3

PO181

SPRING, platform leveling

1шт.

612235R1

BOLT,Hex, 1/2" - 13 x 7"

W/NUT, 1/2 x 7" cd-pltd mach

1шт.

4

PO2315

PLUG

levelling spg

1шт.

5

609637R91

ARM, platform lift RH

1шт.

BOLT W/NUT, 3/4 x 3" cd-pltd

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga cd-pltd

2шт.

LK-WASHER, 3/4" cd-pltd

1шт.

6

609635R1

SHIELD, platform opening depressor

1шт.

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

4шт.

LK-WASHER, 5/16" cd-pltd

4шт.

7

ANCHOR, platform center (for machines w/single piece anchor, order 2-592721R11, anchor, 2-18823R1, bolt; 2-121574, washer & 2-124589, nut)

1шт.

7

592721R11

ANCHOR, platform center, Serial Range: (1965-1966)

2шт.

BOLT W/NUT, 5/8 x 2" cd-pltd mach (anchors together)

2шт.

BOLT W/NUT, 3/4 x 3" cd-pltd mach

1шт.

BOLT W/NUT, 3/4 x 3-1/4" cd-pltd mach

1шт.

LK-WASHER, 5/8" cd-pltd

2шт.

LK-WASHER, 3/4" cd-pltd

2шт.

8

609643R91

SUPPORT, platform lift arm LH

2шт.

8

609644R91

SUPPORT, platform lift arm RH

2шт.

BOLT W/NUT, 3/8 x 7/8" crg

16шт.

LK-WASHER, 3/8"

16шт.

9

609636R91

ARM, platform lift LH

1шт.

BOLT W/NUT, 3/4 x 3" cd-pltd crg

1шт.

WASHER, 25/32 x 1-1/2 x 11 ga cd-pltd

2шт.

LK-WASHER, 3/4" cd-pltd

1шт.

10

613200R1

WASHER, float lockout

4шт.

BOLT W/NUT, 5/8 x 7" mach

2шт.

LK-WASHER, 5/8"

2шт.

11

609537R91

PLATFORM, 10 ft auger

1шт.

11

609538R91

PLATFORM, 12 ft auger

1шт.

11

609539R91

PLATFORM, 14 ft auger

1шт.

12

609603R11

SIDE, LH back upper 10 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

5шт.

BOLT, 5/16 x 5/8" mach

5шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASHER, 5/16"

15шт.

LK-WASHER, 3/8"

2шт.

12

609605R11

SIDE, LH back upper 12 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

7шт.

BOLT, 5/16 x 5/8" mach

5шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASHER, 5/16"

17шт.

LK-WASHER, 3/8"

2шт.

12

609607R11

SIDE, LH back upper 14 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

8шт.

BOLT, 5/16 x 5/8" mach

5шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 3/8 x 3/4" crg

2шт.

LK-WASHER, 5/16"

18шт.

LK-WASHER, 3/8"

2шт.

13

609610R1

SECTION, LH bottom 10 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" CRG

9шт.

BOLT W/NUT, 5/16 x 3/4" crg

6шт.

BOLT W/NUT, 7/16 x 3/4" crg

1шт.

LK-WASHER, 5/16"

15шт.

LK-WASHER, 7/16"

1шт.

13

609612R1

SECTION, LH bottom 12 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

11шт.

BOLT W/NUT, 5/16 x 3/4" crg

6шт.

BOLT W/NUT, 7/16 x 3/4" crg

1шт.

LK-WASHER, 5/16"

17шт.

LK-WASHER, 7/16"

1шт.

13

609614R1

SECTION, LH bottom 14 ft

1шт.

BOLT W/NUT, 5/16 x 5/8" crg

12шт.

BOLT W/NUT, 5/16 x 3/4" crg

6шт.

BOLT W/NUT, 7/16 x 3/4" crg

1шт.

LK-WASHER, 6/16"

18шт.

LK-WASHER, 7/16"

1шт.

14

662338R1

SPACER

BLOCK, skid sole spacer

1шт.

BOLT W/NUT, 7/16 x 1-1/4 type 2 no. 3 plow

2шт.

LK-WASHER, 7/16"

2шт.

15

609823R11

SOLE

platform skid

1шт.

BOLT W/NUT, 7/16 x 1-3/4" type 2 crg

2шт.

BOLT W/NUT, 7/16 x 1-3/4" type 2 no. 3 plow

2шт.

BOLT W/NUT, 7/16 x 2" type 2 crg

1шт.

LK-WASHER, 7/16"

2шт.

16

594225R2

STRIPPER, auger LH 16 ft

1шт.

16

594226R2

STRIPPER, auger RH 16 ft shown (cut to size for 10, 12 & 14 ft)

1шт.
