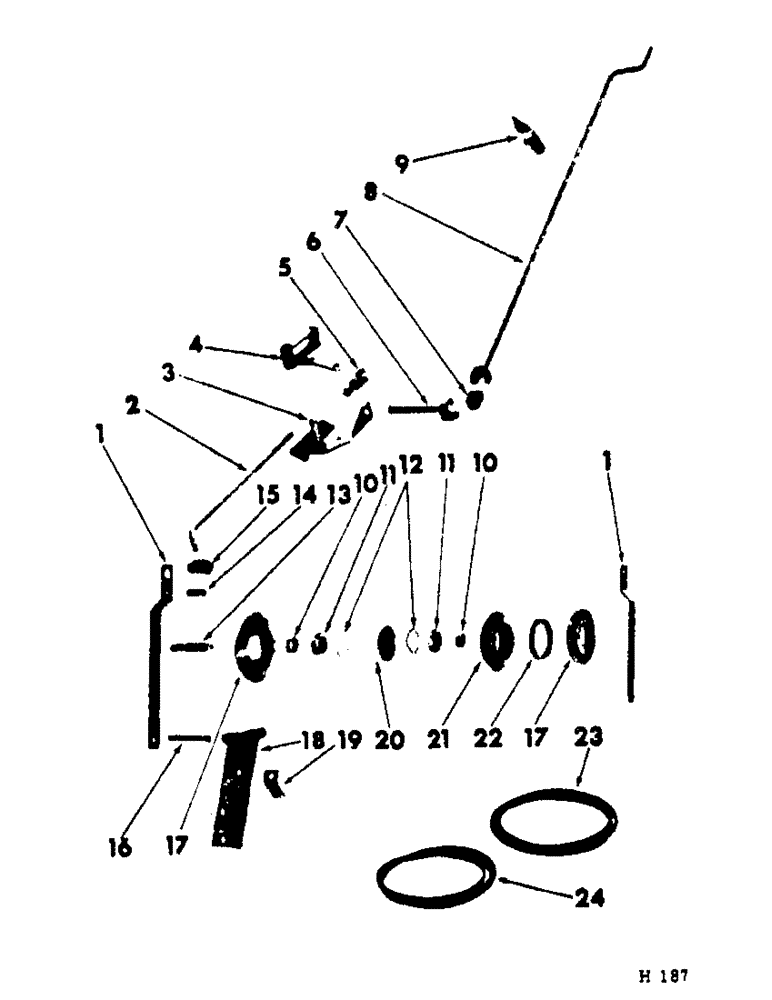

Запчасти Case IH 201 (A-076) - VARIABLE SPEED REEL DRIVE, CANVAS AND GREEN PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

592200R91

PACKAGE, 10 ft variable speed reel drive field conversion

1шт.

592201R91

PACKAGE, 12 ft variable speed reel drive field conversion

1шт.

592202R91

PACKAGE, 14 ft variable speed reel drive field conversion

1шт.

592203R91

PACKAGE, 16 ft variable speed reel drive field conversion

1шт.

1

592207R1

SUPPORT, variator

2шт.

BOLT W/NUT, 3/8 x 2-3/4" mach

1шт.

BOLT W/NUT, 1/2 x 5" mach

1шт.

LK-WASH, 3/8"

1шт.

LK-WASH, 1/2"

1шт.

2

592213R1

ROD, speed control link

1шт.

C-PIN, 1/8 x 7/8"

1шт.

3

592214R11

BRACKET, variator lever mounting

1шт.

575813R1

WASHER

WASH, 25/32 x 1-1/4 x 11 ga

1шт.

C-PIN, 1/4 x 1-1/4"

1шт.

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

4

592215R91

LEVER, variable speed control

1шт.

5

221465

CLEVIS, control link rod

1шт.

114787

AXLE PIN

C-PIN, 1/8 x 7/8"

1шт.

6

592220R11

CONTROL, variable speed

1шт.

551177R1

WASHER

WASH, 21/32 x 1-1/4 x 16 ga

1шт.

C-PIN, 1/8 x 1"

2шт.

7

618696R1

KNUCKLE, control & crank yoke

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

8

592222R11

CRANK, variable speed control

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

9

592223R1

BRACKET, speed control crank

1шт.

BOLT W/NUT, 7/16 x 2" cd-pltd crg

1шт.

LK-WASH, 7/16 cd-pltd

1шт.

10

658006R11

COLLAR

hub brg locking (includes 102569, screw)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

11

580095R91

BALL BEARING

BEARING, speed puley hub

2шт.

12

513010R1

SNAP RING,2", Int, #200

Ring, Snap, , hub brg 2", Int, #200

2шт.

13

592210R1

PIN, pulley hub

1шт.

BOLT, 3/8 x 7/8" type 2

2шт.

LK-WASH, 3/8"

2шт.

14

623129R1

SPACER, variator support bar

1шт.

BOLT W/NUT, 3/8 x 2-3/4" mach

1шт.

LK-WASH, 3/8"

1шт.

15

611766R1

SWIVEL, speed control link rod

1шт.

16

592208R1

SPACER, variator pivot

1шт.

BOLT W/NUT, 1/2 x 5" mach

1шт.

LK-WASH, 1/2"

1шт.

17

592212R1

PULLEY, variable speed outer

2шт.

BOLT W/NUT, 5/16 x 2-3/4" mach

3шт.

LK-WASH, 5/16"

3шт.

18

592204R11

SUPPORT, variator pivot

1шт.

BOLT W/NUT, 3/8 x 1-1/8" cd-pltd crg

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

19

592206R1

BRACE, pivot support

1шт.

BOLT, 3/8 x 3/4" cd-pltd mach

1шт.

BOLT W/NUT, 3/8 x 1-1/8" cd-pltd mach

1шт.

LK-WASH, 3/8" cd-pltd

2шт.

20

592209R1

HUB, variable speed pulley

1шт.

21

592211R1

PULLEY, variable speed inner

1шт.

22

12269L

WASHER, inner pulley felt

1шт.

23

457191R2

V-BELT,0.66" W

Variable speed pulley drive 0.66" W

1шт.

24

27550K

BELT,0.66" W x 100.79" L

V-BELT , 10 ft platform reel drive 0.66" W x 100.79" L

1шт.

24

950477R1

BELT

12 ft platform reel drive

1шт.

24

18884K

V-BELT,147.21" L

Pea bar platform reel drive 147.21" L

1шт.

24

618829R1

V-BELT,0.66" W x 170.50" L

16 ft platform reel drive 0.66" W x 170.50" L

1шт.
