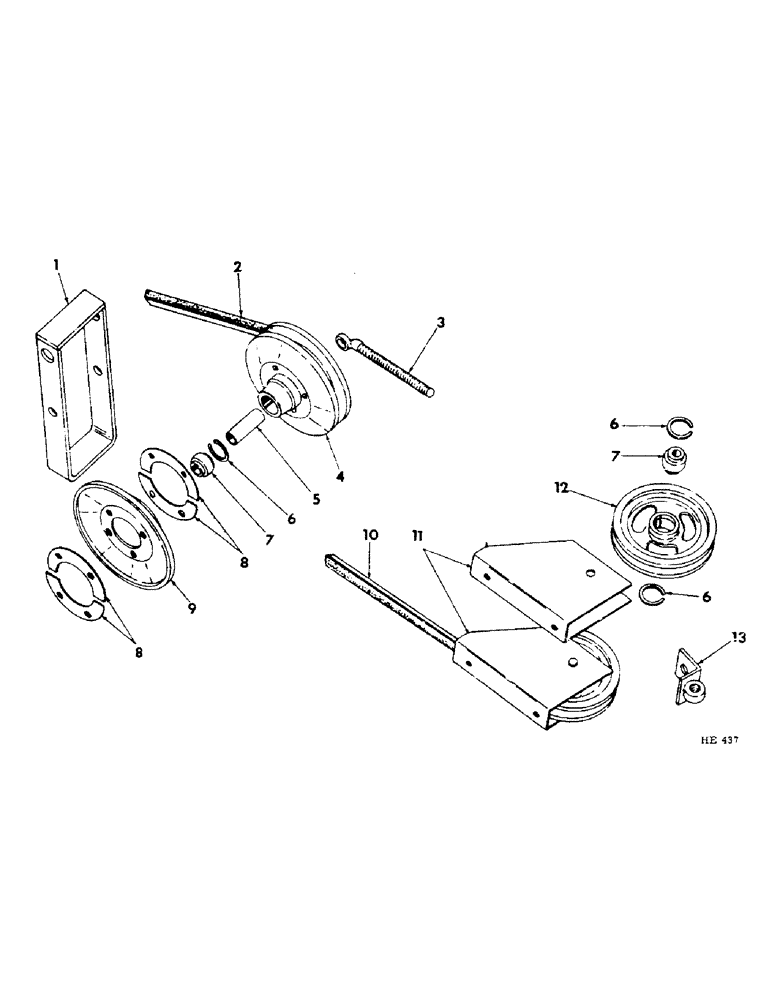

Запчасти Case IH 201 (A-075) - PLATFORM DRIVE, AUGER PLATFORM, NOT CANVAS OR PER BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

609721R91

SUPPORT, variator pulley

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

C-PIN, 3/16 x 1-1/2"

1шт.

2

609720R1

BELT,0.88" W x 147.12" L

V-BELT , Platform drive 0.88" W x 147.12" L

1шт.

3

611159R1

BOLT, pulley adjusting

1шт.

NUT, 1/2" cd-pltd

2шт.

4

609724R1

PULLEY, rear secondary drive

1шт.

BOLT W/NUT, 1/2 x 5-1/2" mach

1шт.

LK-WASHER, 1/2"

1шт.

5

609725R1

SPACER, drive pulley

1шт.

6

113213R1

RING, pulley brg retaining

6шт.

7

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

rear drive pulley, drive idler pulley (opt w/608372R91, bearing)

2шт.

7

608372R91

BEARING

rear drive pulley, drive idler pulley (opt w/611928R91, bearing)

2шт.

8

609726R1

RETAINER

pulley split spacer

10шт.

9

609727R1

PULLEY

drive half

1шт.

BOLT W/NUT, 3/8 x 1-1/2" crg

4шт.

LK-WASHER, 3/8"

4шт.

10

609728R1

V-BELT 0.82" W x 154.50" L, 10 ft platform drive 0.82" W x 154.50" L

1шт.

10

609729R1

V-BELT 0.88" W x 178.00" L, 12 ft platform drive 0.88" W x 178.00" L

1шт.

10

609730R1

V-BELT 0.88" W x 202.50" L, 14 ft platform drive 0.88" W x 202.50" L

1шт.

11

609733R1

SHIELD, drive belt

2шт.

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

BELT SHIELD

4шт.

12

607660R1

PULLEY, idler upper & lower

2шт.

BOLT W/NUT, 1/2 x 3" crg (lower)

1шт.

BOLT W/NUT, 1/2 x 3-1/4" crg (upper)

1шт.

LK-WASHER, 1/2"

2шт.

13

609731R91

BRACKET, upper pulley adjusting

1шт.

609999R1

BOLT, 5/8 x 6" special cd-pltd mach

1шт.
