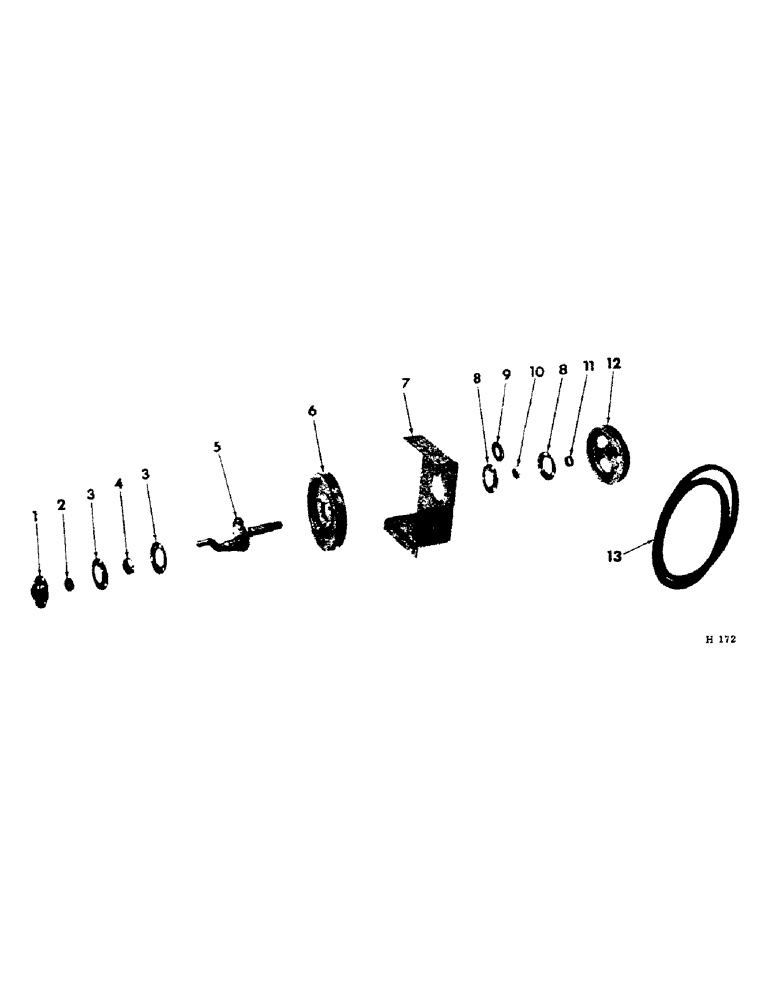

Запчасти Case IH 201 (A-074) - PLATFORM FLYWHEEL DRIVE, AUGER PLATFORM, NOT CANVAS OR PEA BAR PLATFORM (58) - ATTACHMENTS/HEADERS

1

612157R1

SHIELD, bellcrank knife stud

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

3шт.

LK-WASHER, 5/16"

3шт.

2

COLLAR W/SCREW, front brg locking (for SKF collar LC 014 only order 1-564991R91, bearing & 1-658006R11, collar)

1шт.

2

658006R11

COLLAR

W/SCREW, front brg locking (Fafnir, New Departure, SKF for use w/564991R91, bearing)

1шт.

2

592247R11

COLLAR

W/SCREW, front brg locking (Fischer - for use w/592246R91, bearing)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

1шт.

3

462360R1

FLANGED BEARING

TTE, front brg

2шт.

BOLT W/NUT, 5/16 x 7/8" crg

3шт.

LK-WASHER, 5/16"

3шт.

4

BEARING, flywheel front (for SKF bearing 1706205014 only order 1-564991R91, bearing & 1-658006R11, collar)

1шт.

4

564991R91

BEARING

flywheel front (Fafnir, new departure & SKF - for use w/658006R11, collar)

1шт.

4

592246R91

BEARING

flywheel front (Fischer - for use w/592247R11, collar)

1шт.

5

612059R1

CRANK, flywheel

1шт.

20696R1

DISC

WASHER, 1-7/32 x 1-3/4 x 11 ga

1шт.

6

611756R1

FLYWHEEL, knife

1шт.

BOLT, 3/8 x 1-1/8" mach

3шт.

LK-WASHER, 3/8"

3шт.

7

609708R1

SUPPORT, flywheel

1шт.

BOLT W/NUT, 3/8 x 7/8" crg

3шт.

BOLT W/NUT, 3/8 x 1" crg

3шт.

LK-WASHER, 3/8"

6шт.

8

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, rear brg

2шт.

BOLT W/NUT, 3/8 x 7/8" crg

3шт.

LK-WASHER, 3/8"

3шт.

9

20696R1

DISC

WASHER, 1-7/32 x 1-3/4 x 11 ga

1шт.

10

BEARING, flywheel rear (for SKF bearing 1706206103 only order 1-566634R91, bearing & 1-557117R11, collar)

1шт.

10

566634R91

BEARING

flywheel rear (for use w/557117R11, collar)

1шт.

11

COLLAR W/SCREW, rear brg locking (for SKF collar LC-103 only order 1-566634R91, bearing & 1-557117R11, collar)

1шт.

11

557117R11

COLLAR

COLLAR W/SCREW, rear brg locking (for use w/566634R91, bearing)

1шт.

12

609709R1

PULLEY, drive (fast speed-regular)

1шт.

12

609556R1

PULLEY, drive (slow speed-special)

1шт.

113782

KEY

1/4 x 1" no. 15 woodruff

1шт.

13

609720R1

BELT,0.88" W x 147.12" L

V-BELT , Drive (Fast speed-regular) 0.88" W x 147.12" L

1шт.

13

633726R2

V-BELT,0.88" W

Drive (Slow speed-special) 0.88" W

1шт.
