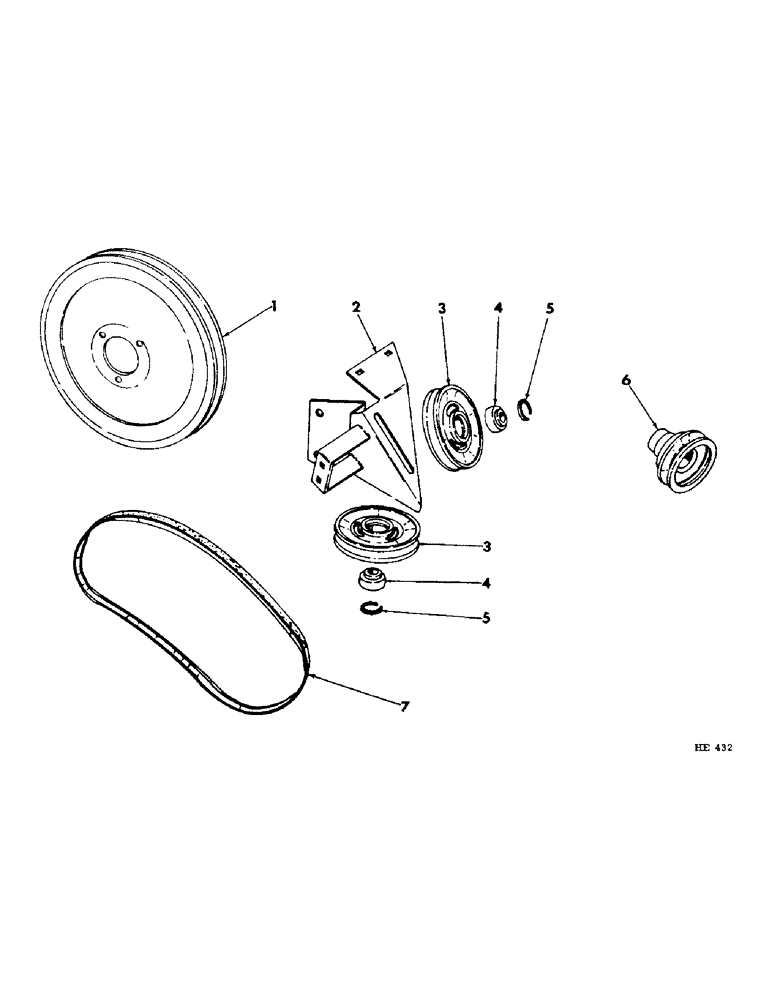

Запчасти Case IH 201 (A-073) - PLATFORM REEL JACKSHAFT, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

PULLEY (refer to "reel drive")

1шт.

2

BRACKET, pulley, Serial Range: (refer-"platform")

1шт.

3

PULLEY, tightener (1961 to 1963) (sheet metal type) order 1-611701R1, pulley; 1-611928R91, bearing & 2-133213R1, retaining ring

1шт.

3

611701R1

PULLEY, tightener (1964 to 1966) (cast type)

2шт.

BOLT W/NUT, 1/2 x 2" mach

2шт.

16038R1

WASHER

17/32 x 1 x 16 ga

4шт.

LK-WASHER, 1/2"

2шт.

4

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

pulley (1964 to 1966) (opt w/608372R91, bearing)

2шт.

4

608372R91

BEARING

pulley (1964 to 1966) (opt w/611928R91, bearing)

2шт.

5

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , pulley brg (1964 to 1966) 1.562", Int, #156

4шт.

6

PULLEY (refer to "platform flywheel drive")

1шт.

7

BELT (refer to "platform flywheel drive")

1шт.
