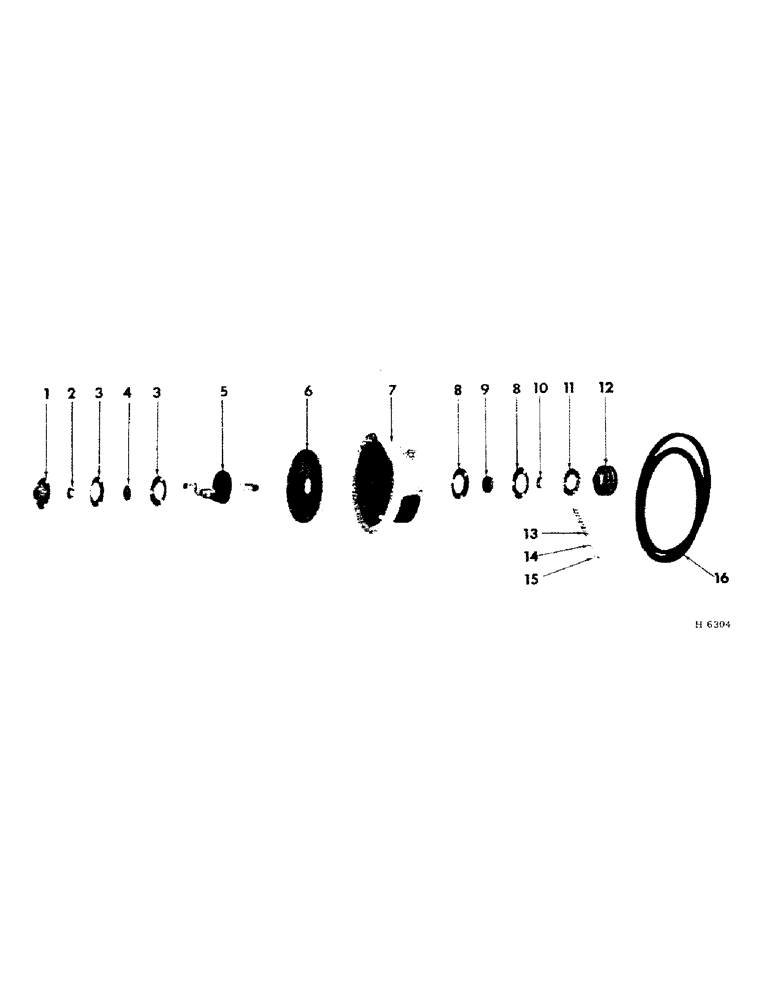

Запчасти Case IH 201 (A-072) - PLATFORM FLYWHEEL DRIVE, CANVAS AND PEA BAR PLATFORM, NOT AUGER PLATFORM (58) - ATTACHMENTS/HEADERS

1

612157R1

SHIELD, bellcrank knife stud

1шт.

BOLT, 5/16 x 3/4" mach

3шт.

LK-WASHER, 5/16"

3шт.

2

COLLAR W/SCREW, front brg locking (for SKF-collar-LC-014 only - order 1-564991R91, bearing & 1-658006R11, collar)

1шт.

2

658006R11

COLLAR

W/SCREW, front brg locking (Fafnir New Departure & SKF - for use w/564991R91, bearing)

1шт.

2

592247R11

COLLAR

W/SCREW, front brg locking (Fischer - for use w/592246R91, bearing)

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hndls cup-pt set

2шт.

3

462360R1

FLANGED BEARING

TTE, front brg

2шт.

BOLT, 5/16 x 3/4" mach

3шт.

LK-WASHER, 5/16"

3шт.

4

BEARING, flywheel front (for SKF-bearing-1706205014 only - order 1-564991R91, bearing & 1-658006R11, collar)

1шт.

4

564991R91

BEARING

flywheel front (Fafnir, New Departure & SKF - for use w/658006R11, collar)

1шт.

4

592246R91

BEARING

flywheel front (Fischer - for use w/592247R11, collar)

1шт.

5

612059R1

CRANK, flywheel

1шт.

6

611756R1

FLYWHEEL, knife

1шт.

BOLT, 3/8 x 1-1/4" mach

3шт.

LK-WASHER, 3/8"

3шт.

7

612152R11

SHIELD, flywheel end

1шт.

BOLT W/NUT, 5/16 x 3/4" crg

5шт.

BOLT W/NUT, 5/16 x 7/8" crg

1шт.

LK-WASHER, 5/16"

6шт.

8

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, rear brg

2шт.

BOLT, 3/8 x 5/8" mach

3шт.

LK-WASHER, 3/8"

3шт.

9

BEARING, flywheel rear (for SKF-bearing-1706206103 only - order 1-566634R91, bearing & 1-557117R11, collar)

1шт.

9

566634R91

BEARING

flywheel rear (Fafnir, New Departure & SKF - for use w/557117R11, collar)

1шт.

9

609957R91

BEARING

flywheel rear (Fischer - for use w/609958R11, collar)

1шт.

10

COLLAR W/SCREW, rear brg locking (for SKF-collar-LC-103 only - order 1-566634R91, bearing & 1-557117R11, collar)

1шт.

10

557117R11

COLLAR

COLLAR W/SCREW, rear brg locking (Fafnir, new departure & SKF - for use w/566634R91, bearing)

1шт.

10

609958R11

COLLAR

W/SCREW, rear brg locking (Fischer - for use w/609957R91, bearing)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

11

612028R1

DRIVE SPROCKET

SPROCKET, 20T roller drive

1шт.

BOLT, 5/16 x 7/8" mach

3шт.

LK-WASHER, 5/16"

3шт.

12

611753R1

PULLEY, flywheel

1шт.

113782

KEY

1/4 x 1" no. 15 woodruff

1шт.

13

CHAIN, 5/8" pitch light side bar roller type

1шт.

For an assembled chain for 10 ft. platform & 10 ft. platform w/Pea Bar, order 1-1791D, 10 ft. length of chain, reduce to 51 links and add 2-1315D, offset links & 1-1310D, connecting link) (for an assembled chain for 12, 14, or 16 ft. platform, order 1-1791D, 10 ft. length of chain, reduce to 47 links & add 1-1315D, offset link & 1-1310D, connecting link)

1шт.

14

1315D

LINK

chain offset

1шт.

1360D

PIN, offset link

1шт.

15

1310D

LINK

chain connecting

1шт.

1311D

CLIP, connecting link

1шт.

16

950477R1

BELT

10 ft. canvas platform reel drive

1шт.

16

27550K

BELT,0.66" W x 100.79" L

V-BELT , 10 ft. pea bar platform reel drive 0.66" W x 100.79" L

1шт.

16

18884K

V-BELT,147.21" L

Canvas platform reel drive 147.21" L

1шт.

16

950477R1

BELT

12 ft. pea bar platform reel drive

1шт.

16

618829R1

V-BELT,0.66" W x 170.50" L

14 ft. canvas platform reel drive 0.66" W x 170.50" L

1шт.

16

18884K

V-BELT,147.21" L

Pea bar platform reel drive 147.21" L

1шт.

16

612046R1

V-BELT,0.63" W x 193.50" L

16 ft. canvas platform reel drive 0.63" W x 193.50" L

1шт.

16

618829R1

V-BELT,0.66" W x 170.50" L

16 ft. pea bar platform reel drive 0.66" W x 170.50" L

1шт.
