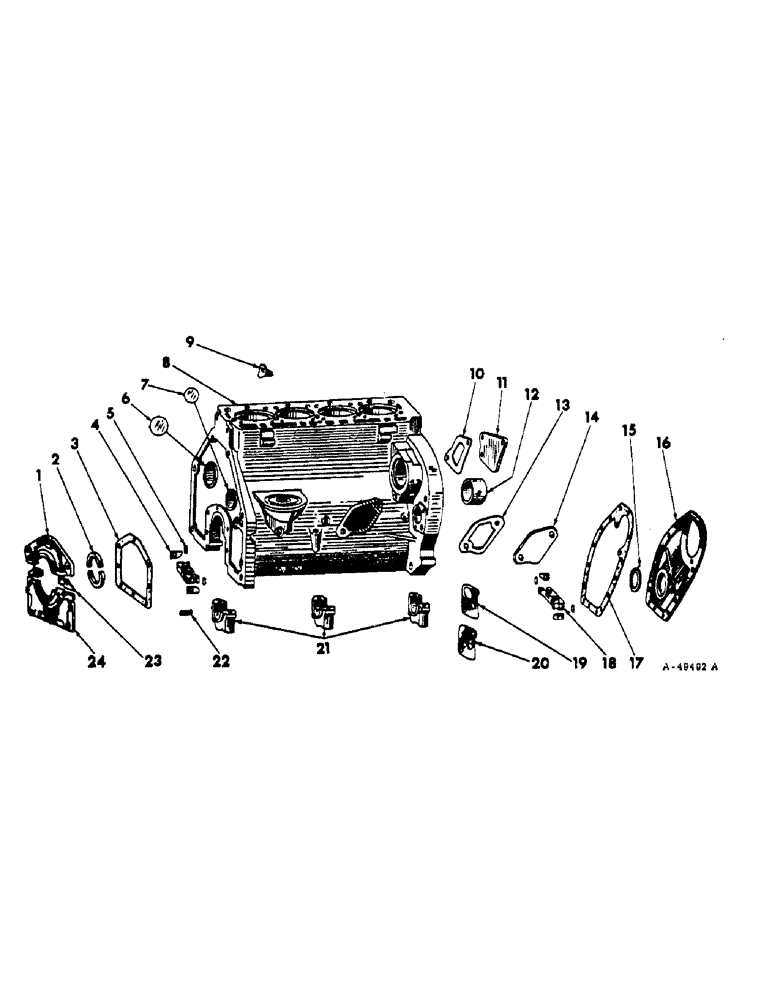

Запчасти Case IH 201 (A-008) - ENGINE CRANKCASE (10) - ENGINE

1

6101D

RETAINER

crankshaft rear oil seal upr

1шт.

BOLT, 5/16 x 7/8" type 2

3шт.

LK-WASH, 5/16"

3шт.

2

24425D

OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk

OIL SEAL, crankshaft rear

2шт.

3

43448D

GASKET

oil seal retainer

1шт.

4

43446DA

GASKET,1.29mm Thk

retainer plate

4шт.

5

43445DA

PAD

PLUG, retainer plate

4шт.

6

63556R1

PLUG

2" crankshaft expansion

1шт.

7

172576

PLUG,Exp, 1 5/8"

1-5/8" camshaft expansion

1шт.

8

373125R11

CRANKCASE ASSEMBLY

1шт.

Engine composed of: (6) bolt 17091R1, (1) bushing 43439DBR, (1) bushing 375747R1, (3) cap (NSS), (1) crankcase (NSS), (2) dowel 46923D, (2) plug 143997, (1) plug 172576, (1) plug 172592, (2) plug 50410DA, (1) sleeve 365937R1, (6) washer 58516H

1шт.

143997

PLUG

1/4" sq-hd so

2шт.

50410DA

PLUG

oil header pipe

2шт.

9

103867

PLUG

water drain

1шт.

10

46871D

GASKET

water passage cover

1шт.

11

367733R1

COVER, passage (opt w/367735R11)

1шт.

11

367735R11

COVER, passage (opt w/367733R1)

1шт.

BOLT, 3/8 x 1" type 2

2шт.

LK-WASH, 3/8"

2шт.

12

43439DBR

BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L

distributor gear

1шт.

13

49124D

GASKET

fuel pump cover

1шт.

14

29710D

COVER

fuel pump opening

1шт.

BOLT, 5/16 x 5/8" type 2

2шт.

LK-WASH, 5/16"

2шт.

15

OIL SEAL, front cover (order 1-378193R91, pkg) (NSS)

1шт.

16

46122DDX

COVER

crankcase front (includes pkg, 378193R91, pkg)

1шт.

BOLT, 5/16 x 5/8" type 2

11шт.

BOLT, 3/8 x 3/4" type 2

1шт.

WASH, 11/32 x 11/16 x 16 ga

11шт.

WASH, 13/32 x 13/16 x 16 ga

1шт.

LK-WASH, 5/16"

11шт.

LK-WASH, 3/8"

1шт.

17

46179DC

GASKET

front cover

1шт.

18

6100DA

SUPPORT ASSY.

PLATE, front & rear retainer

2шт.

19

350708R1

GASKET

hyd pump cover

1шт.

20

251067R1

COVER

hyd pump opening

1шт.

BOLT, 3/8 x 3/4" type 2

2шт.

LK-WASH, 3/8"

2шт.

21

CAP, crankshaft brg (order 1-373125R11, crankcase) (NSS)

1шт.

17091R1

BOLT, cap lock

6шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

WASH, cap lock bolt

6шт.

22

46923D

PIN

DOWEL, clutch housing

2шт.

23

43447D

GASKET

oil seal retainer center

2шт.

24

6102D

RETAINER

crankshaft rear oil seal lower

1шт.

BOLT, 1/4 x 7/8" type 2

2шт.

BOLT, 5/16 x 7/8" type 2

5шт.

LK-WASH, 1/4"

2шт.

LK-WASH, 5/16"

5шт.
