(E-012[2]) - BATTERY TRAY, WISCONSIN VH4D AND VG4D ENGINE, MACHINE SERIAL NUMBER H-5074 AND UP

Запчасти Case IH 201 (E-012[2]) - BATTERY TRAY, WISCONSIN VH4D AND VG4D ENGINE, MACHINE SERIAL NUMBER H-5074 AND UP (55) - ELECTRICAL SYSTEMS

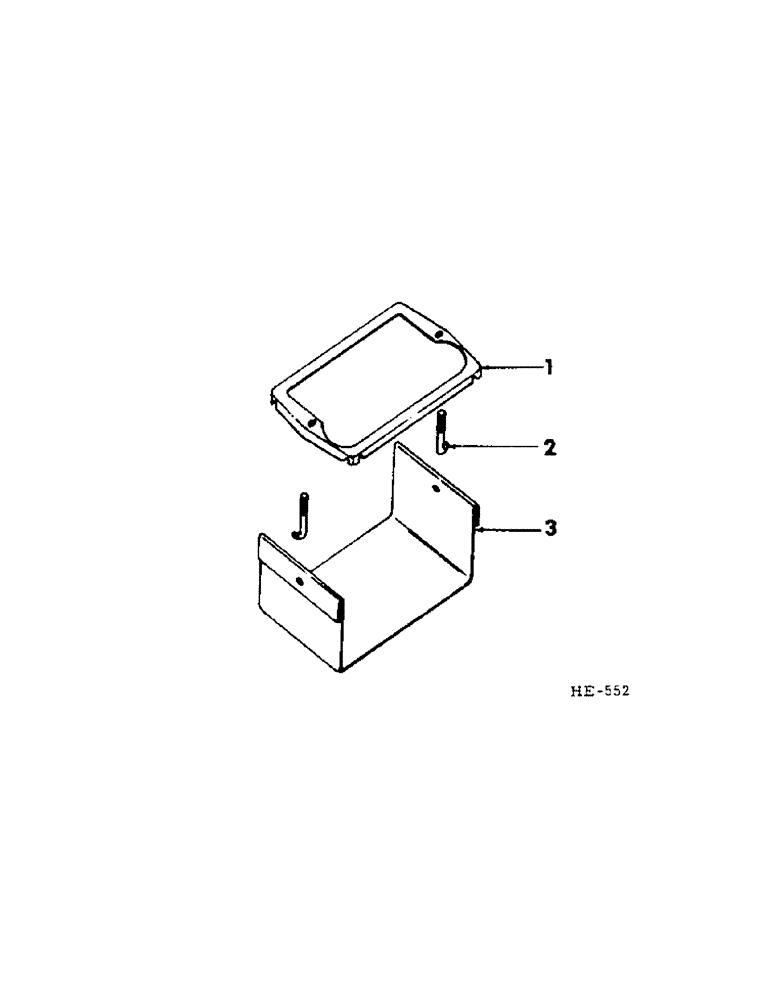

Схема запчастей Case IH 201 - (E-012[2]) - BATTERY TRAY, WISCONSIN VH4D AND VG4D ENGINE, MACHINE SERIAL NUMBER H-5074 AND UP (55) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

920645R1

CLAMP

COVER, battery tray

1шт.

2

597692R1

BOLT, cover hold-down

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

7500032

BUSHING

NUT, 5/16" C-Z wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

597691R1

TRAY, battery

1шт.
