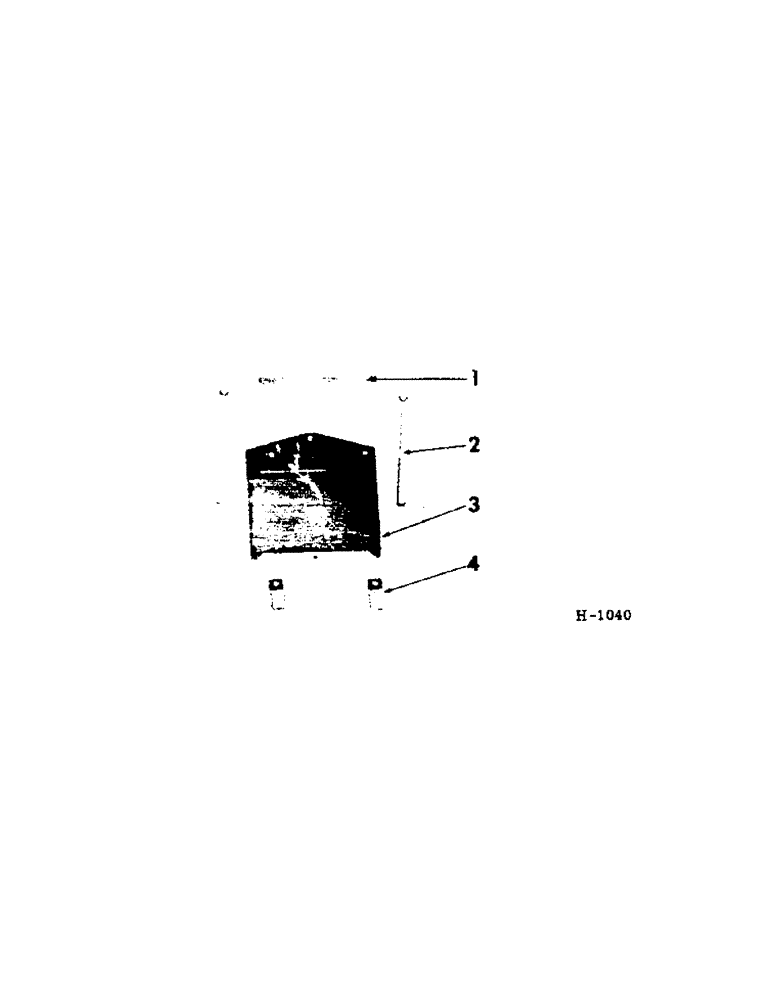

Запчасти Case IH 201 (E-012[1]) - BATTERY TRAY, WISCONSIN VG4D ENGINE, PRIOR TO MACHINE SERIAL NO. H-5074 (55) - ELECTRICAL SYSTEMS

1

592018R1

ANGLE, battery hold-down

1шт.

2

614132R1

BOLT, angle hold-down

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

2шт.

86627130

WING NUT,1/4"-20

NUT, 1/4" C-Z wing

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

614126R92

TRAY, battery

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

W/NUT, 5/16 x 5/8" C-Z crg

2шт.

19278R1

BOLT W/NUT, 3/8 x 3/4" C-Z type 2

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

592016R1

STRIP, battery stop

2шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

W/NUT, 5/16 x 7/8" C-Z crg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , w/nut Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
