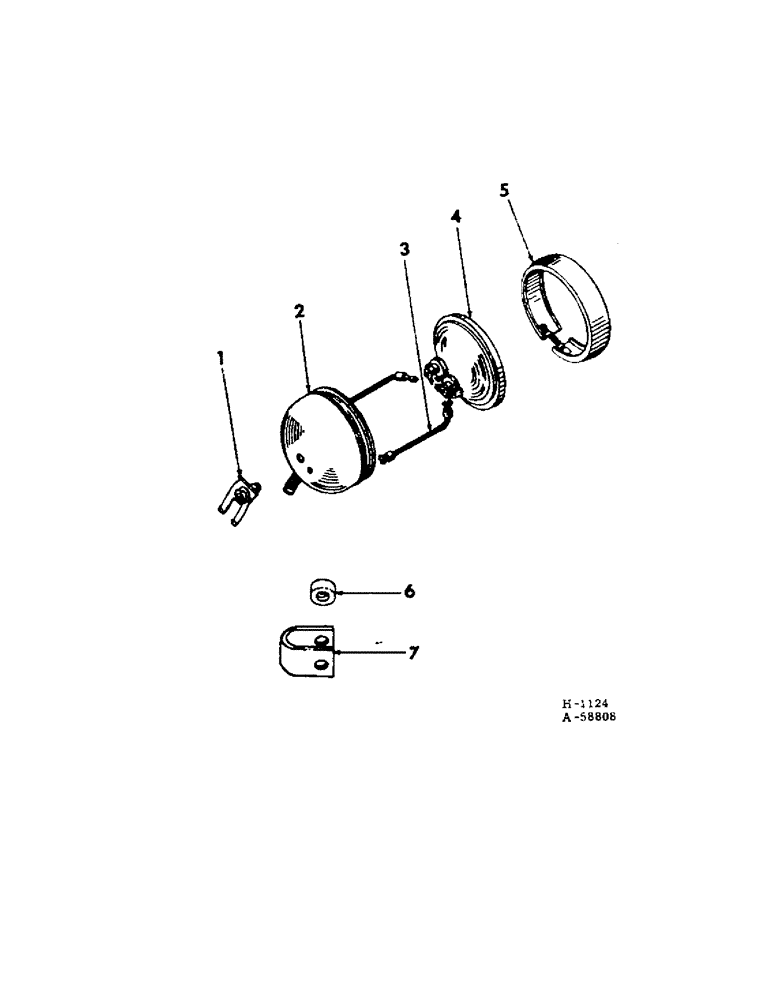

Запчасти Case IH 201 (E-011) - ELECTRICAL SYSTEM, HEADLIGHT AND MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

1

365664R91

ELEC CONNECTOR

CLIP, block & spring (Dietz)

1шт.

1

68417D

INSULATOR

PACKAGE, terminal plate service (guide lamp) composed of: (1) plate 79407H, (1) spring 79408H, (2) screw 121749, (2) lockwasher 138530

1шт.

79407H

PLATE

terminal

1шт.

79408H

SCREW, terminal plate

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

no. 8-5/16" slt-rd-hd

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

2

BODY (refer to "note") (NSS)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

Not part of light

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Not part of light

1шт.

3

373311R91

WIRE, block to beam (Dietz)

1шт.

3

375657R91

WIRE, block to beam (guide lamp)

1шт.

4

373662R91

LAMP

SEALED BEAM, 12 volt

1шт.

5

371450R91

BEZEL

MOULDING, sealed beam (Dietz)

1шт.

132489

SCREW, no. 8 x 1-1/4" sltd fil-hd

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

5

371451R91

MOLDING

MOULDING, sealed beam (guide lamp)

1шт.

53526D

SCREW

moulding

1шт.

6

49069D

SPACER

headlight

1шт.

Not part of light

1шт.

7

561916R1

CLAMP, headlight

1шт.

Not part of light

1шт.
