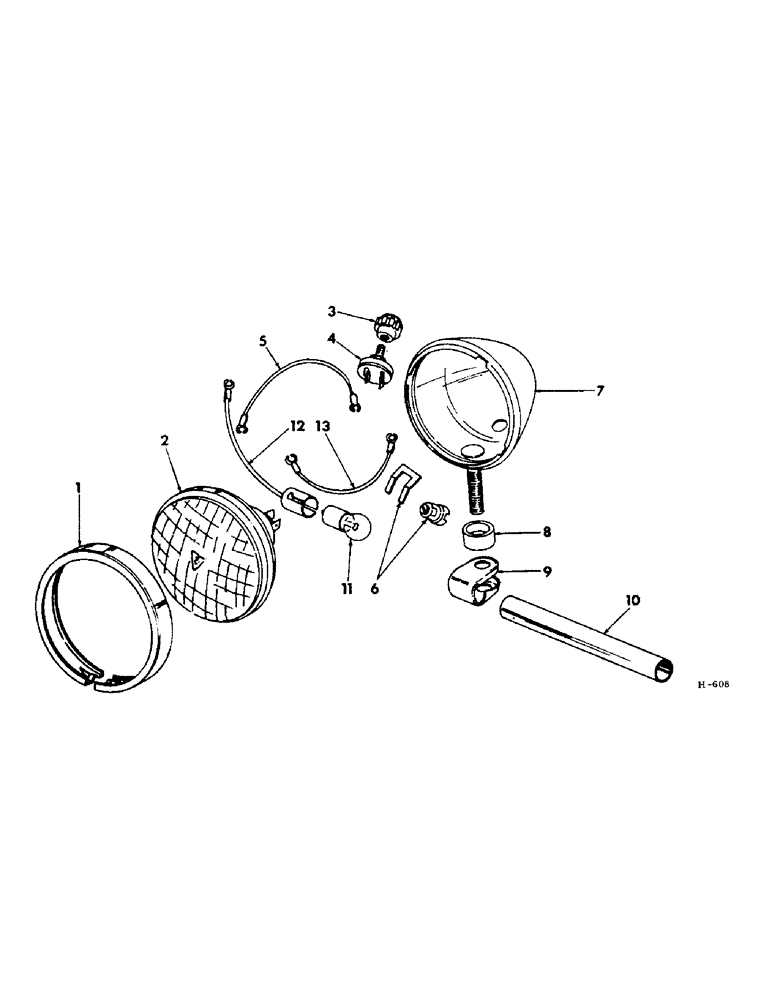

Запчасти Case IH 201 (E-010) - ELECTRICAL SYSTEM, WORK AND TAIL LIGHT AND MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

373306R91

LIGHT

12 volt work and tail (Dietz & guide lamp) (includes parts listed unless otherwise noted)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

Not part of light

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Not part of light

1шт.

1

371450R91

BEZEL

MOULDING, sealed beam (Dietz) (includes 1-132489 screw, 1-121841 lk-washer and 1-365697R1 nut)

1шт.

132489

SCREW, no 8 1-1/4" slt-fil-hd

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

365697

NUT, no 8

1шт.

1

371451R91

MOLDING

MOULDING, sealed beam (guide lamp)

1шт.

53526D

SCREW

moulding

1шт.

2

371461R91

LENS

SEALED BEAM, 12 volt

1шт.

3

373309R1

KNOB

light switch (Dietz)

1шт.

3

359773R91

KNOB, light switch (guide lamp)

1шт.

4

373308R91

LIGHT SWITCH

SWITCH (includes 373309R1 knob) (Dietz)

1шт.

4

375653R91

SWITCH

(includes 359773R91 knob) (guide lamp)

1шт.

5

373311R91

CABLE, switch to terminal (Dietz)

1шт.

5

375655R91

CABLE, switch to terminal (guide lamp)

1шт.

6

365664R91

ELEC CONNECTOR

CLIP, block and spg (Dietz)

1шт.

6

68417D

INSULATOR

PACKAGE, terminal plate service (guide lamp) composed of: (1) plate 79407H, (1) spring 79408H, (2) screw 121749, (2) lockwasher 138530

1шт.

79407H

PLATE

terminal

1шт.

79408H

SCREW, terminal plate

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

no 8-5/16" slt-rd-hd

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

7

BODY (order 1-373306R91 light) (NSS)

1шт.

8

49069D

SPACER

light mounting

1шт.

Not part of light

1шт.

9

350920R1

CLAMP

tail light mounting

1шт.

Not part of light

1шт.

10

514986R1

PIPE, tail light pivot

1шт.

Not part of light

1шт.

22471R1

BOLT,Hex, 1/2" - 13 x 6 3/4", Gr 5

W/NUT, 1/2 x 6-3/4" C-Z type 2

1шт.

Not part of light

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

Not part of light

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

Not part of light

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Not part of light

1шт.

11

455490

BULB,C-6, #1003, 12V, .94W

12 volt work

1шт.

12

373310R91

CABLE, switch to socket (Dietz)

1шт.

12

375654R91

CABLE, switch to socket (guide lamp)

1шт.

13

373311R91

CABLE, switch to beam (Dietz)

1шт.

13

375656R91

CABLE, switch to beam (guide lamp)

1шт.
