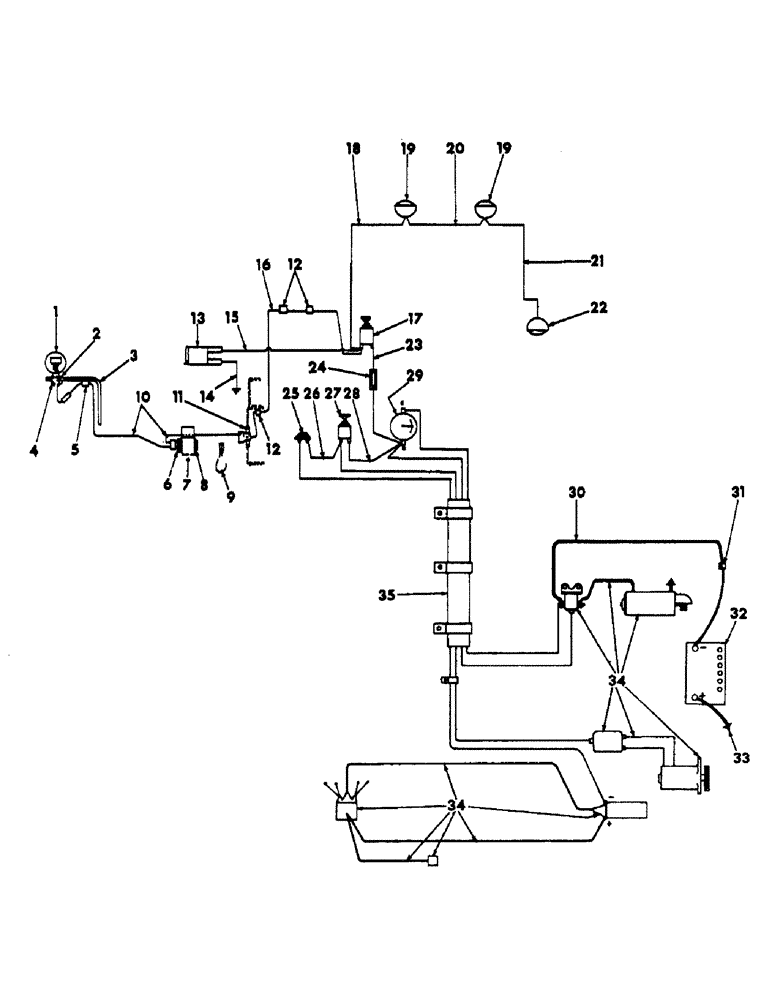

Запчасти Case IH 201 (E-006) - ELECTRICAL SYSTEM, WIRING DIAGRAM, PRIOR TO SERIAL NUMBER H-1200 (55) - ELECTRICAL SYSTEMS

1

LIGHT, safety flashing (refer to "safety flashing light")

1шт.

2

394262R1

WASHER

GASKET, safety flashing light

1шт.

3

594588R1

ANGLE, light support

1шт.

4

124934

HOSE

1/2-20 hex-jam

1шт.

5

120522

CLIP

CLAMP, no 5-1/4 x 5/16" cable

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

W/NUT, 1/4 x 5/8" C-Z type 2

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

394132R91

FLASHER UNIT

FLASHER, 12 volt

1шт.

7

394133R1

FASTENER

CLAMP, flasher

1шт.

8

394134R1

SEAL

HOSE, flasher absorber

1шт.

9

394473R91

CABLE, light jumper

1шт.

10

594590R91

CABLE, Serial Range: flasher-light

1шт.

11

704700R1

GROMMET

cable

1шт.

12

427026

CLAMP, cable

3шт.

13

362002R92

SOCKET

breakaway connector

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

W/NUT, 1/4 x 5/8" slt-hd C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

618240R11

CABLE, breakaway, Serial Range: socket-ground

1шт.

15

613754R11

CABLE, switch to breakaway socket

1шт.

16

594589R91

CABLE, light, Serial Range: switch-junction

1шт.

17

62801DC

SWITCH

light

1шт.

21053R1

WASHER

19/32 x 1-1/4 x 11 ga C-Z

1шт.

18

592188R11

CABLE, Serial Range: headlight-switch

1шт.

19

LIGHT, head (refer to "head light and mounting parts")

2шт.

20

592805R11

CABLE, Serial Range: headlight-headlight

1шт.

21

618882R11

CABLE, Serial Range: taillight-headlight

1шт.

22

LIGHT, tail (refer to "work and taillight and mounting parts")

1шт.

23

618891R91

CABLE W/HOLDER, Serial Range: switch-ammeter

1шт.

24

117142

FUSE,10 Amp, Type 3AG

10 amp (w/out safety flashing light)

1шт.

24

9426333

FUSE,15 Amp, Type 3AG

15 amp (w/safety flashing light)

1шт.

25

366317R91

IGNITION SWITCH

BUTTON, starter

1шт.

132903

ADAPTER

SCREW, button mounting

2шт.

120611

NUT,#10 - 32

SQ-NUT, no 10-NF C-Z

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

26

618216R11

CABLE, starter button to ignition switch

1шт.

27

62801DC

SWITCH

ignition

1шт.

21053R1

WASHER

19/32 x 1-1/4 x 11 ga C-Z

1шт.

28

618216R11

CABLE, ignition, Serial Range: switch-ammeter

1шт.

29

269467R92

INDICATOR

AMMETER, ignition

1шт.

30

592019R91

CABLE, battery to solenoid (Wisconsin VH4D engine)

1шт.

30

592020R91

CABLE

battery to solenoid (Wisconsin VG4D engine)

1шт.

31

140581

CLIP

battery cable (VG4D engine)

1шт.

32

262139D

BATTERY, dry charged Prestolite (12V) (for U.S.)

1шт.

32

C4315

BATTERY, dry charged electric storage (12V)

1шт.

33

613496R91

CABLE

battery ground

1шт.

34

STARTER, SOLENOID, GENERATOR VOLTAGE-REGULATOR, COIL, DISTRIBUTOR AND H1 TEMPERATURE SWITCH (for service refer to the Wisconsin Engine Parts Catalog)

1шт.

35

592012R91

HARNESS, electrical wiring

1шт.

105244

CLIP

no. 3 closed (1/4" hole)

1шт.

140581

CLIP

no. 7 closed (3/8" hole)

1шт.

105248

CLIP, no. 7 closed (1/4" hole)

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

W/NUT, 1/4 x 1/2" C-Z type 2

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
