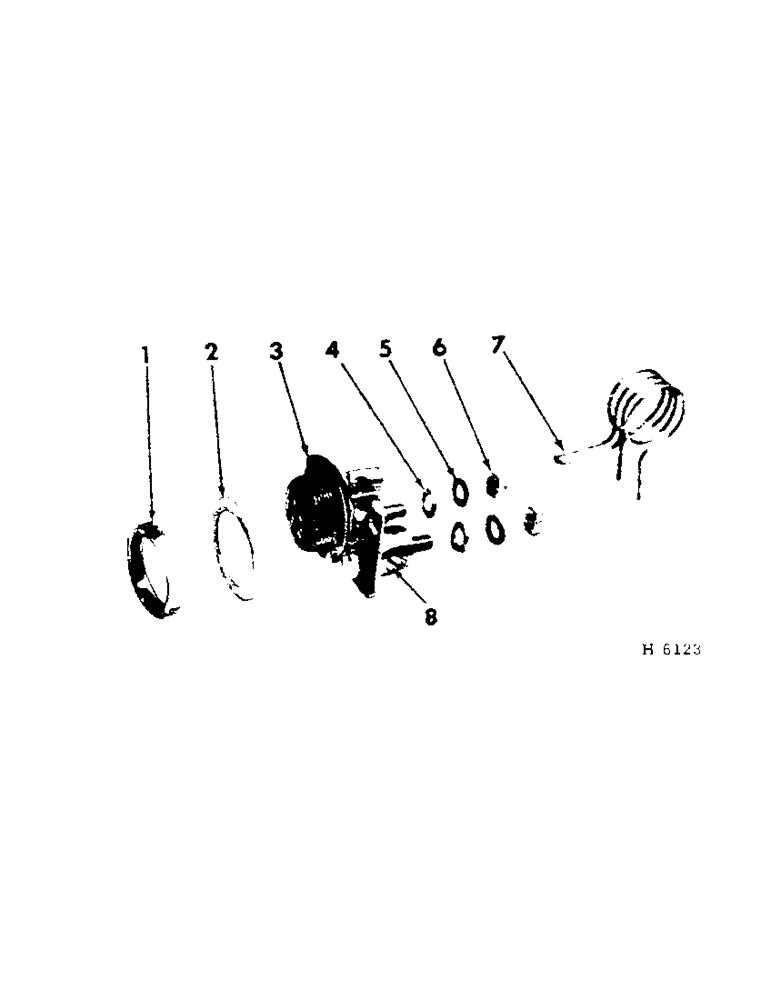

Запчасти Case IH 201 (A-058) - GLOW PLUG INDICATOR, DIESEL, ON MACHINES PRIOR TO SERIAL NUMBER H 1922 (55) - ELECTRICAL SYSTEMS

703557R91

SPARE PART

INDICATOR, glow plug (opt w/706685R92, indicator) (includes parts listed below, reference no.'s 1 to 8, inclusive)

1шт.

On machines prior to H1922, order 1-3042230R91, indicator; 1-614117R12, cable; 1-708126R2, wire; 2-708127R2, wire & 1-708128R2, wire)

1шт.

706685R92

RESISTOR

INDICATOR, glow plug (opt w/703557R91, indicator)

1шт.

On machines prior to H1922, order 1-3042230R91, indicator; 1-614117R12, cable; 1-708126R2, wire; 2-708127R2, wire & 1-708128R2, wire)

1шт.

Components of this indicator are not illustrated) composed of (1) body (NSS), (1) coil 3043619R1, (2) nut 707483R1, (1) nut 707486R1, (2) screw 707487R1, (2) washer 707484R1, (2) washer 705829R1, (1) washer 707499R1

1шт.

1

3043500R1

NUT, indicator mounting

1шт.

Part of 703557R91, indicator only

1шт.

2

3043501R1

WASHER, mounting nut

1шт.

Part of 703557R91, indicator only

1шт.

3

BODY (NSS)

1шт.

On machines prior to H1922, order 1-3042230R91, indicator; 1-614117R12, cable; 1-708126R2, wire; 2-708127R2, wire & 1-708128R2, wire)

1шт.

4

3043502R1

WASHER, coil fixing lk

2шт.

Part of 703557R91, indicator only

1шт.

5

3043503R1

WASHER, coil fixing lk

2шт.

Part of 703557R91, indicator only

1шт.

6

3043504R1

NUT, coil fixing

2шт.

Part of 703557R91, indicator only

1шт.

7

709467R1

RESISTOR

COIL, resistance

1шт.

Part of 703557R91, indicator only

1шт.

8

3043505R1

SCREW, grub

3шт.

Part of 703557R91, indicator only

1шт.
