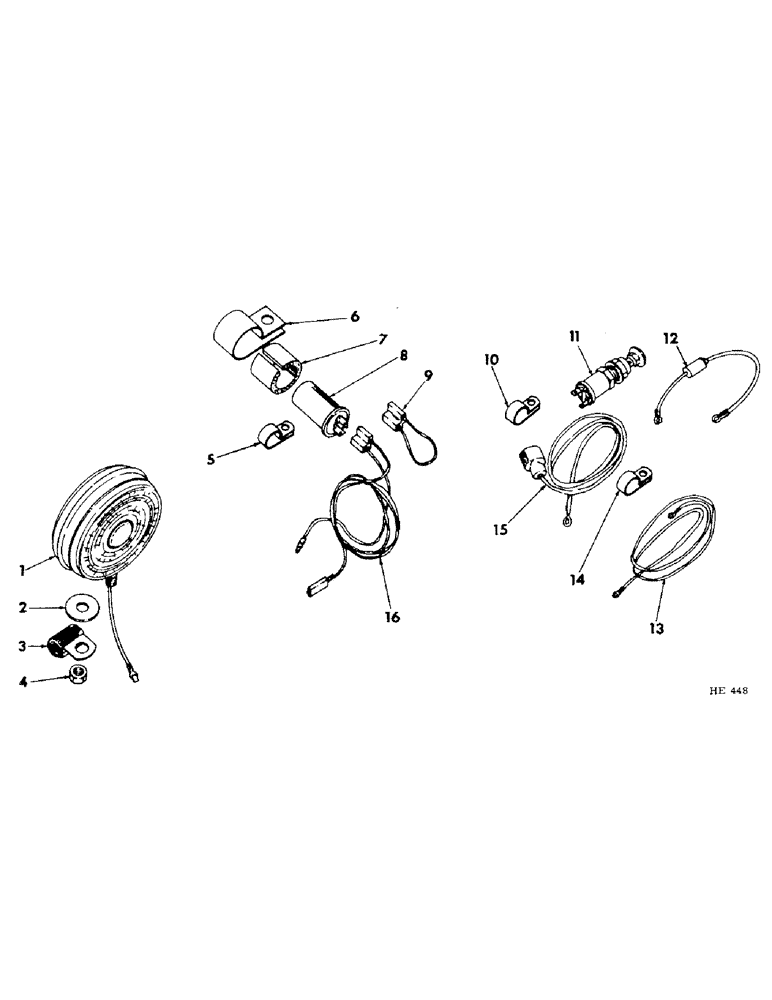

Запчасти Case IH 201 (A-056) - SAFETY FLASHING LIGHT (55) - ELECTRICAL SYSTEMS

1

594583R91

LIGHT, 6 volt safety (includes 103462, bult)

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted.

1шт.

103462

KEY

BULB, 6 volt light

1шт.

1

394129R91

LIGHT

12 volt safety (includes 9417866, bulb)

1шт.

594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

9417866

BULB,C6, #1156, 12.8V

12 volt light

1шт.

2

394262R1

WASHER

GASKET, flashing safety-light rubbers

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

3

358986R1

CABLE CLIP

CLIP, safety-light cable terminal

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

4

124934

HOSE

1/2"-NF cd-pltd jam (Note A & B)

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

5

120520

CLIP

no. 3 flasher to switch cable & flasher

2шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

6

394133R1

FASTENER

CLAMP, flasher

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

BOLT W/NUT, 1/4 x 5/8" cd-pltd mach

1шт.

LK-WASHER, 1/4" cd-pltd

1шт.

7

394134R1

SEAL

HOSE, flasher absorber

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

8

594584R91

FLASHER, safety warning 6 volt

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted.

1шт.

8

394132R91

FLASHER UNIT

FLASHER, safety warning 12 volt (in area where flasher is prohibited by law, order 1-394473R91, jumper cable)

1шт.

594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

9

394473R91

CABLE, flashing light jumper

1шт.

594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

10

120521

CLIP,1/4", 1/4" Bolt

no. 4-1/4 x 1/4" cable

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

SCREW, 1/4 x 1/2" cd-hd-slt

1шт.

11

62801DC

SWITCH

safety warning light

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

21053R1

WASHER

19/32 x 1-1/4 x 11 ga cd-pltd

1шт.

12

618891R91

FUSE HOUSING, ignition switch to light switch cable

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

455844

FUSE,25 Amp, Type 3AG

25 ampere

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted.

1шт.

9426333

FUSE,15 Amp, Type 3AG

15 ampere

1шт.

594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

13

618880R91

CABLE, fuse holder to voltage regulator

1шт.

594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

14

125912

CLIP

no. 4-5/16 x 1/4" cable

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted, 594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

15

612609R11

CABLE, flasher to light switch

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted.

1шт.

15

594587R91

CABLE, flasher to light switch

1шт.

594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.

16

636370R91

CABLE, Serial Range: safety-light-flasher

1шт.

594753R91 6 volt, for use w/C135IH & Wisconsin engines field conversion package composed of parts noted.

1шт.

16

594586R91

CABLE, Serial Range: safety-light-flasher

1шт.

594754R91 12 volt, for use w/BD144 diesel engine field conversion package composed of parts noted.

1шт.
