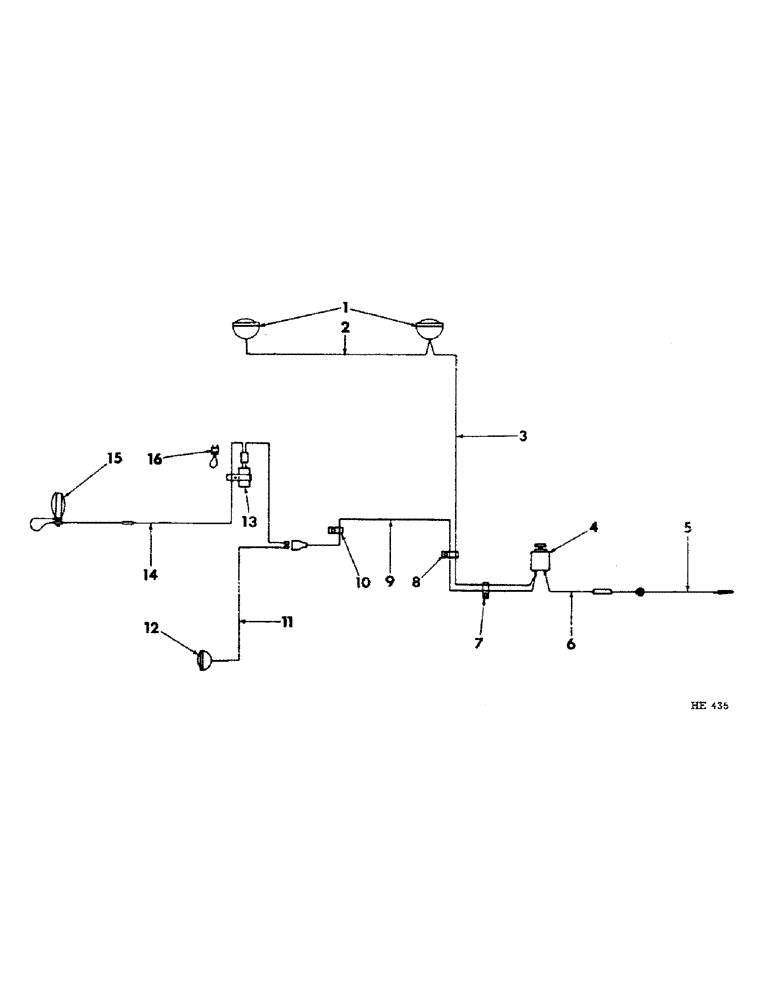

Запчасти Case IH 201 (A-055) - WIRING DIAGRAM, LIGHTING, DIESEL WITH SAFETY FLASHING LIGHT (55) - ELECTRICAL SYSTEMS

1

HEADLIGHT, Serial Range: (refer-"headlight")

1шт.

2

619047R11

CABLE, Serial Range: headlight-headlight

1шт.

613755R1

CLIP, cable

1шт.

3

618882R11

CABLE, light switch to RH headlight

1шт.

5

62801DC

SWITCH

light (refer to "instrument panel")

1шт.

5

618880R11

CABLE, light switch to voltage regulator

1шт.

6

618891R91

FUSE HOUSING, ignition switch to light switch cable

1шт.

9426333

FUSE,15 Amp, Type 3AG

15 ampere (12 volt)

1шт.

7

125912

CLIP

no. 4 closed for 5/16" bolt

1шт.

8

120521

CLIP,1/4", 1/4" Bolt

no. 4 closed

1шт.

SCREW W/NUT, 1/4 x 1/2" cd-pltd rd-hd-slt mach

1шт.

LK-WASHER, 1/4" cd-pltd

1шт.

9

594587R91

CABLE, flasher to light switch

1шт.

10

120520

CLIP

no. 3 operator's platform to cable & flasher

2шт.

11

594591R91

CABLE, socket to tail light

1шт.

12

LIGHT, tail (refer to "combination work & tail light")

1шт.

13

FLASHER, 12 volt (refer to "safety flashing light")

1шт.

14

594586R91

CABLE, safety, Serial Range: light-flasher

1шт.

15

LIGHT ASSEMBLY (refer to "safety flashing light")

1шт.

16

394473R91

CABLE, light jumper

1шт.
